Durable aluminum construction with a striking gray finish for enhanced performance.

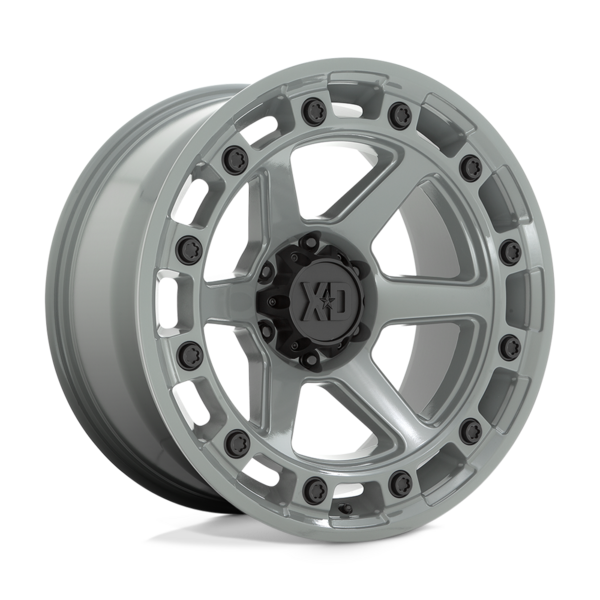

The KMC Wheels XD862 Raid is a 20 inch diameter wheel designed for trucks and SUVs, featuring a robust 10 inch width. Constructed from a single piece of cast aluminum, this wheel offers a gray finish that enhances its aesthetic appeal while ensuring durability. With a load capacity of 2500 pounds, it is engineered to withstand demanding conditions, making it suitable for various driving environments.
This wheel features a 6 x 135 millimeter bolt pattern and a -18 millimeter offset, providing compatibility with a wide range of vehicles. The 60 degree conical seat lug nut design ensures a secure fit, while the 87.10 millimeter center bore accommodates various hub sizes. Additionally, the XD862 Raid is compatible with Tire Pressure Monitoring Systems (TPMS), allowing for real-time monitoring of tire pressure.
The design includes a 6 spoke configuration and comes with an XD Series logo center cap, adding a distinctive touch to the overall look. With a maximum tire diameter of 42 inches, this wheel is versatile enough to support larger tires, enhancing both performance and appearance. The KMC Wheels XD862 Raid is a reliable choice for those seeking quality and style in their wheel selection.
Features
- Gray Finish
- 1 Piece Cast Aluminum Construction
- Compatible With TPMS (Tire Pressure Monitoring System)
- With XD Series Logo Center Cap
Specifications
- Manufacturer: KMC Wheels
- Manufacturer Part Number: XD86221063418N
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 20
- Width: 10
- Offset: -18
- Backspacing: 4.79
- Finish: Painted
- Color: Gray
- Material: Aluminum
- Bolt Pattern Inch: 6x5.31
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 6x135
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: Yes
- Center Bore: 87.10
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 6 Spoke
- With Inserts: No
- Load Capacity: 2500
- Size: 20x10
- Max Tire Diameter: 42
- Center Cap Design: XD Series Logo
- Finish Warranty: 1 Year
- Structural Warranty: Lifetime
- Quantity: Single
- Construction: One Piece Cast
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2004-2026 Ford F-150
