Durable and stylish wheel designed for trucks and SUVs.

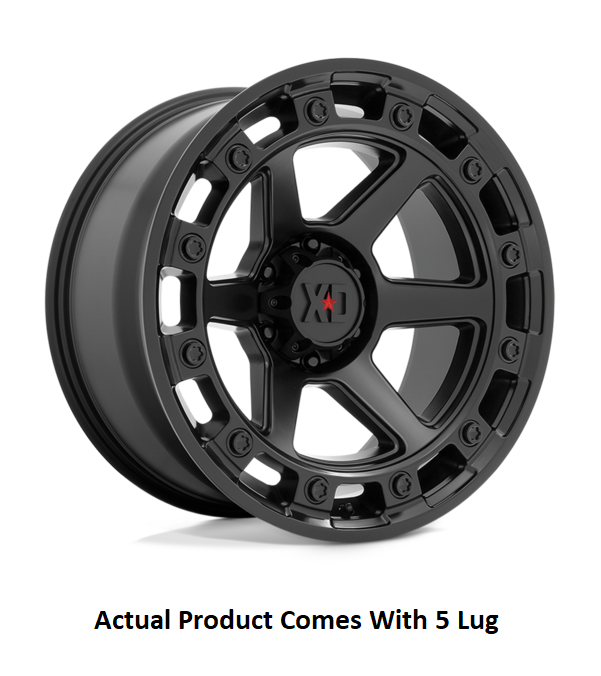

The KMC Wheels XD862 Raid is a robust 20 inch wheel designed for enhanced performance and aesthetics on trucks and SUVs. Constructed from a single piece of cast aluminum, this wheel features a satin black finish that provides a sleek appearance while ensuring durability. With a load capacity of 2500 pounds, it is engineered to handle demanding conditions, making it suitable for various driving environments.
This wheel has a 5 x 127 millimeter bolt pattern and a negative 18 millimeter offset, allowing for a wider stance and improved stability. The 6 spoke design not only adds to its visual appeal but also contributes to its structural integrity. Additionally, the XD862 Raid is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that tire pressure is monitored effectively for safety and performance.
With a maximum tire diameter of 42 inches, this wheel accommodates larger tires, enhancing traction and control. The 60 degree conical seat lug nut design ensures a secure fit, while the included XD Series logo center cap adds a touch of branding. The KMC Wheels XD862 Raid is a reliable choice for those seeking a combination of style and functionality in their wheel selection.
Features
- Satin Black Finish
- 1 Piece Cast Aluminum Construction
- Compatible With TPMS (Tire Pressure Monitoring System)
- With XD Series Logo Center Cap
Specifications
- Manufacturer: KMC Wheels
- Manufacturer Part Number: XD86221050718N
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 20
- Width: 10
- Offset: -18
- Backspacing: 4.79
- Finish: Satin
- Color: Black
- Material: Aluminum
- Bolt Pattern Inch: 5x5.00
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 5x127
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: Yes
- Center Bore: 71.50
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 6 Spoke
- With Inserts: No
- Load Capacity: 2500
- Size: 20x10
- Max Tire Diameter: 42
- Center Cap Design: XD Series Logo
- Finish Warranty: 1 Year
- Structural Warranty: Lifetime
- Quantity: Single
- Construction: One Piece Cast
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 1987-1987 GMC R1500
- 2020-2025 Jeep Gladiator JT
- 2007-2018 Jeep Wrangler JK
- 2018-2025 Jeep Wrangler JL
