Durable aluminum construction with a sleek satin black finish.

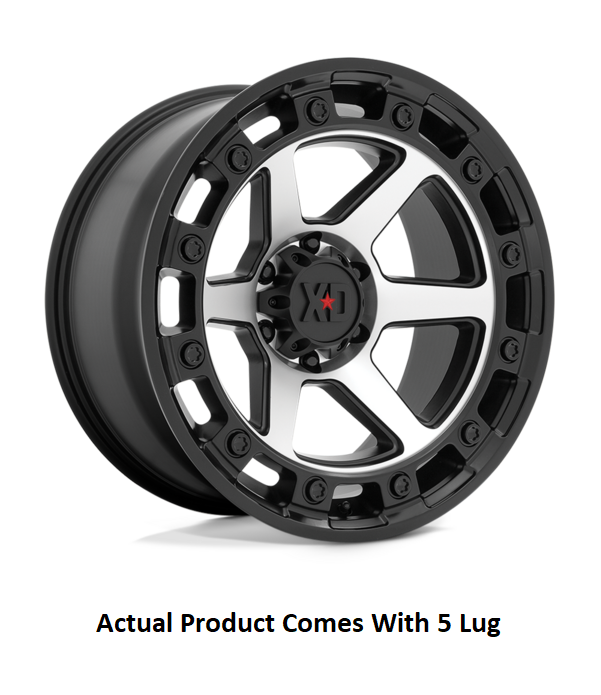

The KMC Wheels XD862 Raid is a 20 inch diameter wheel designed for trucks and SUVs, featuring a robust 10 inch width. Constructed from a single piece of cast aluminum, this wheel offers a load capacity of 2500 pounds, ensuring strength and reliability for various driving conditions. The satin black finish with a machined face not only enhances its aesthetic appeal but also provides durability against wear and tear. With a bolt pattern of 5 x 127 millimeters and a negative offset of -18 millimeters, this wheel is engineered for optimal fitment and performance.
This wheel is compatible with Tire Pressure Monitoring Systems (TPMS), allowing for easy monitoring of tire pressure for enhanced safety. The design includes a 60 degree conical seat lug nut type and a center bore of 71.50 millimeters, ensuring a secure fit. The XD Series logo center cap adds a distinctive touch to the overall design, making it a stylish choice for vehicle customization. The KMC Wheels XD862 Raid is suitable for tires with a maximum diameter of 42 inches, making it versatile for various tire options.
Features
- Satin Black With Machined Face
- 1 Piece Cast Aluminum Construction
- Compatible With TPMS (Tire Pressure Monitoring System)
- With XD Series Logo Center Cap
Specifications
- Manufacturer: KMC Wheels
- Manufacturer Part Number: XD86221050518N
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 20
- Width: 10
- Offset: -18
- Backspacing: 4.79
- Finish: Painted Satin With Machined Face
- Color: Black With Natural Face
- Material: Aluminum
- Bolt Pattern Inch: 5x5.00
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 5x127
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: Yes
- Center Bore: 71.50
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 6 Spoke
- With Inserts: No
- Load Capacity: 2500
- Size: 20x10
- Max Tire Diameter: 42
- Center Cap Design: XD Series Logo
- Finish Warranty: 1 Year
- Structural Warranty: Lifetime
- Quantity: Single
- Construction: One Piece Cast
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 1987-1987 GMC R1500
- 2020-2025 Jeep Gladiator JT
- 2007-2018 Jeep Wrangler JK
- 2018-2025 Jeep Wrangler JL
