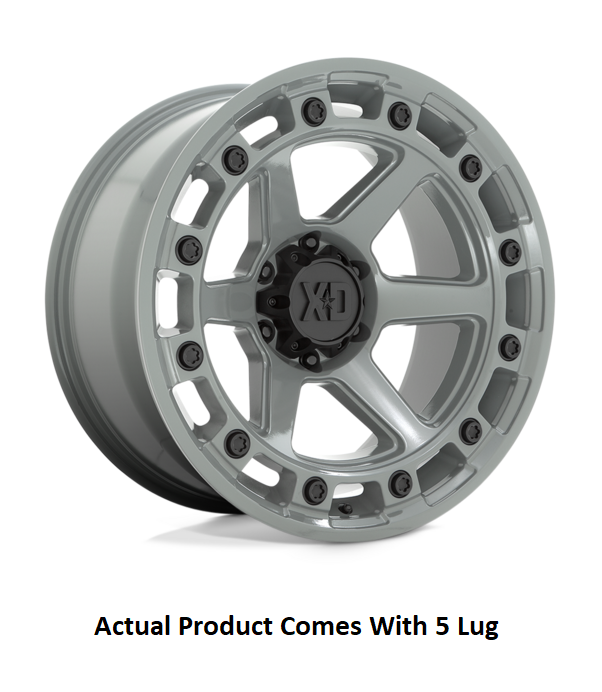

KMC Wheels XD862 Raid 20 Inch Wheel (MPN: XD86221050418N)

Durable aluminum construction with a striking gray finish for enhanced performance.

The KMC Wheels XD862 Raid is a 20 inch diameter wheel designed for trucks and SUVs, featuring a robust 10 inch width. Constructed from a single piece of cast aluminum, this wheel offers a load capacity of 2500 pounds, ensuring durability and reliability under various driving conditions. The gray finish not only enhances the aesthetic appeal but also provides resistance against wear and tear. With a bolt pattern of 5 x 127 millimeters and a negative offset of -18 millimeters, this wheel is engineered for optimal fitment and performance.

This model is compatible with Tire Pressure Monitoring Systems (TPMS), allowing for real-time monitoring of tire pressure, which is crucial for maintaining safety and performance. The 6 spoke design adds a modern touch, while the 60 degree conical seat lug nut design ensures secure installation. The center bore measures 71.50 millimeters, accommodating a variety of vehicles. Additionally, the XD Series logo center cap adds a distinctive branding element to the wheel's design.

With a maximum tire diameter of 42 inches, the XD862 Raid is suitable for a range of tire sizes, making it a versatile choice for vehicle customization. The wheel is backed by a lifetime structural warranty and a one-year finish warranty, reflecting KMC's commitment to quality and customer satisfaction. This wheel is sold as a single unit, making it easy to replace or upgrade individual wheels as needed.

Features

• Gray Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD86221050418N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -18
• Backspacing: 4.79
• Finish: Painted
• Color: Gray
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 6 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
