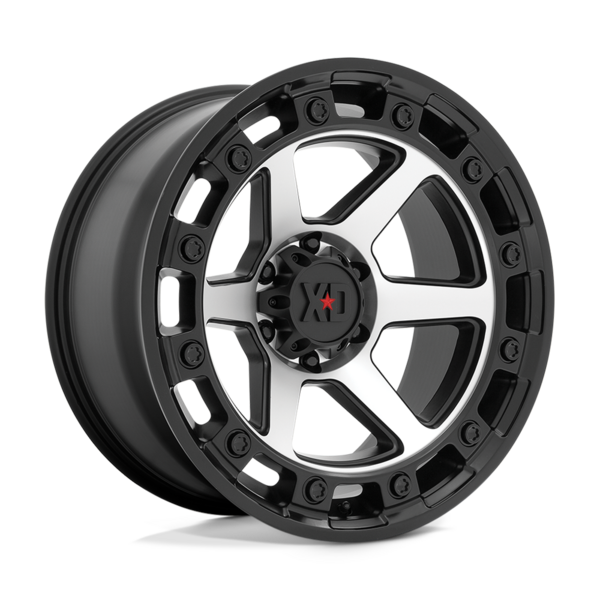

KMC Wheels XD862 Raid 17 Inch Wheel (MPN: XD86279068500)

Durable and stylish wheel designed for trucks and SUVs.

The KMC Wheels XD862 Raid is a 17 inch diameter wheel designed for enhanced performance and aesthetics on trucks and SUVs. Constructed from a single piece of cast aluminum, this wheel features a satin black finish with a machined face, providing a robust and stylish appearance. With a load capacity of 2500 pounds, it is engineered to support heavy-duty applications while maintaining structural integrity.

This wheel is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that tire pressure is monitored effectively for safety and performance. The 6 spoke design and 60 degree conical seat lug nut design contribute to its modern look and functionality. The XD862 Raid also includes an XD Series logo center cap, adding a touch of branding to its sleek design.

With a backspacing of 5.00 inches and a bolt pattern of 6 x 139.7 millimeters, this wheel is versatile and can accommodate a maximum tire diameter of 40 inches. The center bore measures 106.10 millimeters, ensuring a proper fit for various vehicle applications. KMC Wheels stands behind their products with a lifetime structural warranty and a one-year finish warranty, reflecting their commitment to quality and durability.

Features

• Satin Black With Machined Face
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD86279068500
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 9
• Offset: 0
• Backspacing: 5.00
• Finish: Painted Satin With Machined Face
• Color: Black With Natural Face
• Material: Aluminum
• Bolt Pattern Inch: 6x5.50
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x139.7
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 106.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 6 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 17x9
• Max Tire Diameter: 40
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1996-1999 Acura SLX
• 1999-1999 Cadillac Escalade
• 1987-1991 Chevrolet Blazer
• 1989-1989 Chevrolet C2500
• 1992-1993 Chevrolet C2500
• 2004-2012 Chevrolet Colorado
• 2023-2026 Chevrolet Colorado
• 2004-2008 Chevrolet Express 1500
• 1996-1999 Chevrolet Express 2500
• 2025-2026 Chevrolet Express 2500
• 1975-1976 Chevrolet K10
• 1978-1986 Chevrolet K10
• 1967-1974 Chevrolet K10 Pickup
• 1970-1977 Chevrolet K10 Suburban
• 1979-1986 Chevrolet K10 Suburban
• 1988-1999 Chevrolet K1500
• 1992-1999 Chevrolet K1500 Suburban
• 1975-1986 Chevrolet K5 Blazer
• 1975-1982 Chevrolet LUV
• 1999-2018 Chevrolet Silverado 1500
• 2020-2021 Chevrolet Silverado 1500
• 2023-2026 Chevrolet Silverado 1500
• 2019-2019 Chevrolet Silverado 1500 LD- Old Model
• 2022-2022 Chevrolet Silverado 1500 LTD- Old Model
• 2019-2019 Chevrolet Silverado 1500- New Model
• 2022-2022 Chevrolet Silverado 1500- New Model
• 2000-2006 Chevrolet Suburban 1500
• 2000-2006 Chevrolet Tahoe
• 1987-1988 Chevrolet V10 Suburban
• 1990-1993 Dodge Ram 50
• 2022-2023 Ford Bronco
• 2025-2025 Ford Bronco
• 1999-1999 GMC C1500
• 1993-1993 GMC C1500 Suburban
• 1982-1986 GMC C2500
• 1988-2000 GMC C2500
• 2004-2012 GMC Canyon
• 1976-1991 GMC Jimmy
• 1975-1978 GMC K15
• 1975-1978 GMC K15 Suburban
• 1970-1974 GMC K15/K1500 Pickup
• 1979-1986 GMC K1500
• 1988-1999 GMC K1500
• 1979-1986 GMC K1500 Suburban
• 1992-1999 GMC K1500 Suburban
• 1982-1986 GMC K2500
• 1999-2018 GMC Sierra 1500
• 2020-2021 GMC Sierra 1500
• 2023-2026 GMC Sierra 1500
• 2007-2007 GMC Sierra 1500 Classic
• 2019-2019 GMC Sierra 1500 Limited- Old Model
• 2022-2022 GMC Sierra 1500 Limited- Old Model
• 2019-2019 GMC Sierra 1500- New Model
• 2022-2022 GMC Sierra 1500- New Model
• 1987-1987 GMC V1500
• 1987-1991 GMC V1500 Suburban
• 1987-1987 GMC V2500
• 1992-2014 GMC Yukon
• 2001-2001 GMC Yukon XL 1500
• 2005-2014 GMC Yukon XL 1500
• 1989-1994 Isuzu Amigo
• 1984-2002 Isuzu Trooper
• 1974-1983 Jeep Cherokee
• 1984-1987 Jeep Grand Wagoneer
• 1989-1991 Jeep Grand Wagoneer
• 1993-1993 Jeep Grand Wagoneer
• 1987-1995 Nissan Pathfinder
• 2016-2024 Nissan Titan XD
• 2022-2022 Rivian EDV-500
• 2024-2024 Rivian EDV-500
• 2022-2022 Rivian EDV-700
• 2024-2024 Rivian EDV-700
• 2022-2022 Rivian EDV-900
• 2024-2024 Rivian EDV-900
• 2022-2024 Rivian RCV-500
• 2022-2024 Rivian RCV-700
• 1984-1999 Toyota 4Runner
• 2007-2014 Toyota FJ Cruiser
• 1994-1998 Toyota Land Cruiser
• 1979-1981 Toyota Pickup
• 2001-2007 Toyota Sequoia
• 1995-1999 Toyota Tacoma
• 2001-2023 Toyota Tacoma
• 2000-2006 Toyota Tundra
