Durable cast aluminum wheel designed for trucks and SUVs with advanced features.

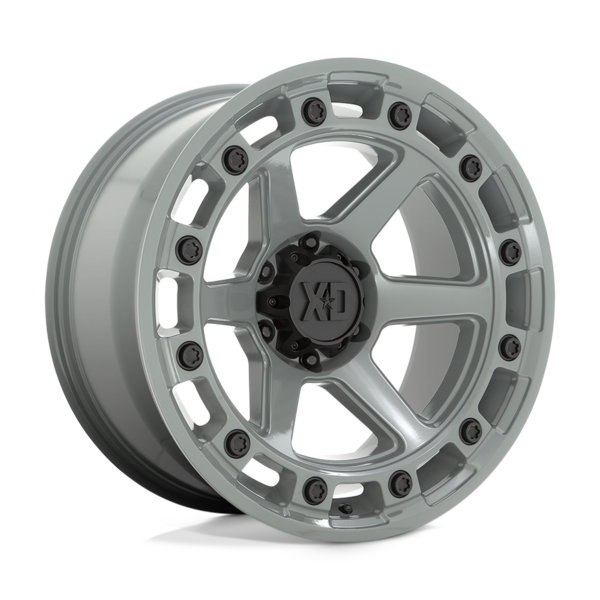

The KMC Wheels XD862 Raid is a robust 17 inch wheel designed specifically for trucks and SUVs. Constructed from a single piece of cast aluminum, this wheel offers a gray finish that enhances the aesthetic appeal while ensuring durability. With a load capacity of 2500 pounds, it is engineered to handle demanding conditions, making it suitable for both lifted and lowered vehicles.
Featuring a 6 x 139.7 millimeter bolt pattern and a 0 millimeter offset, the XD862 Raid is compatible with a variety of tire sizes, accommodating a maximum tire diameter of 40 inches. The wheel includes a 60 degree conical seat lug nut design and a center bore of 106.10 millimeters, ensuring a secure fit and optimal performance. Additionally, it is compatible with Tire Pressure Monitoring Systems (TPMS), providing enhanced safety and convenience.
The XD862 Raid is designed with a 6 spoke configuration and comes with an XD Series logo center cap, adding a distinctive touch to your vehicle. With a structural warranty for life and a one-year finish warranty, this wheel is built to last, making it a reliable choice for automotive enthusiasts seeking quality and performance.
Features
- Gray Finish
- 1 Piece Cast Aluminum Construction
- Compatible With TPMS (Tire Pressure Monitoring System)
- With XD Series Logo Center Cap
Specifications
- Manufacturer: KMC Wheels
- Manufacturer Part Number: XD86279068400
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 17
- Width: 9
- Offset: 0
- Backspacing: 5.00
- Finish: Painted
- Color: Gray
- Material: Aluminum
- Bolt Pattern Inch: 6x5.50
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 6x139.7
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: Yes
- Center Bore: 106.10
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 6 Spoke
- With Inserts: No
- Load Capacity: 2500
- Size: 17x9
- Max Tire Diameter: 40
- Center Cap Design: XD Series Logo
- Finish Warranty: 1 Year
- Structural Warranty: Lifetime
- Quantity: Single
- Construction: One Piece Cast
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
