KMC Wheels XD862 Raid 17 Inch Wheel (MPN: XD86279050700)

Durable satin black aluminum wheel designed for performance and style.

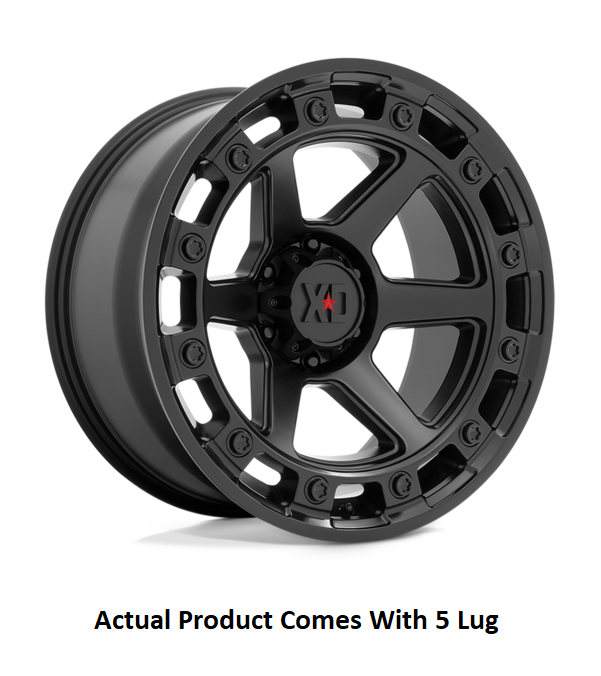

The KMC Wheels XD862 Raid is a 17 inch diameter wheel that combines strength and style for trucks and SUVs. Constructed from a single piece of cast aluminum, this wheel features a satin black finish that enhances its aesthetic appeal while providing durability. With a load capacity of 2500 pounds, it is engineered to handle demanding conditions, making it suitable for various driving environments.

This wheel has a 5 x 127 millimeter bolt pattern and a 0 millimeter offset, ensuring compatibility with a wide range of vehicles. The 60 degree conical seat lug nut design and 71.50 millimeter center bore facilitate secure installation. Additionally, the XD862 Raid is compatible with Tire Pressure Monitoring Systems (TPMS), allowing for easy monitoring of tire conditions.

The 6 spoke design not only adds to the visual impact but also contributes to the overall performance of the wheel. With a maximum tire diameter of 40 inches, this wheel is versatile enough to accommodate larger tires, enhancing traction and stability. The included XD Series logo center cap adds a finishing touch to its design, making it a standout choice for vehicle customization.

Features

• Satin Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD86279050700
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 9
• Offset: 0
• Backspacing: 5.00
• Finish: Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 6 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 17x9
• Max Tire Diameter: 40
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1991-1996 Buick Roadmaster
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1980-1990 Chevrolet Caprice
• 1967-1974 GMC C15/C1500 Pickup
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
