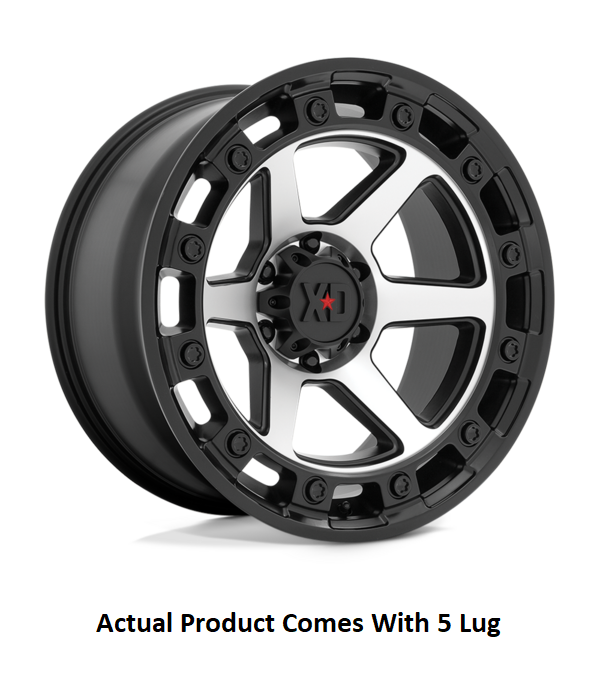

KMC Wheels XD862 Raid 17 Inch Wheel (MPN: XD86279050500)

Durable and stylish wheel designed for trucks and SUVs.

The KMC Wheels XD862 Raid is a 17 inch diameter wheel designed for enhanced performance and aesthetics on trucks and SUVs. Constructed from a single piece of cast aluminum, this wheel features a satin black finish with a machined face, providing a robust and stylish appearance. With a load capacity of 2500 pounds, it is engineered to support heavy-duty applications while maintaining structural integrity.

This wheel has a 5 x 127 millimeter bolt pattern and a 0 millimeter offset, making it compatible with a variety of vehicles. The 60 degree conical seat lug nut design ensures a secure fit, while the 71.50 millimeter center bore accommodates a range of hub sizes. Additionally, the XD862 Raid is compatible with Tire Pressure Monitoring Systems (TPMS), enhancing safety and performance.

With a maximum tire diameter of 40 inches, this wheel is suitable for various tire sizes, allowing for customization based on user preferences. The included XD Series logo center cap adds a distinctive touch, making it a standout choice for those looking to enhance their vehicle's appearance.

Features

• Satin Black With Machined Face
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD86279050500
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 9
• Offset: 0
• Backspacing: 5.00
• Finish: Painted Satin With Machined Face
• Color: Black With Natural Face
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 6 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 17x9
• Max Tire Diameter: 40
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1991-1996 Buick Roadmaster
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1980-1990 Chevrolet Caprice
• 1967-1974 GMC C15/C1500 Pickup
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
