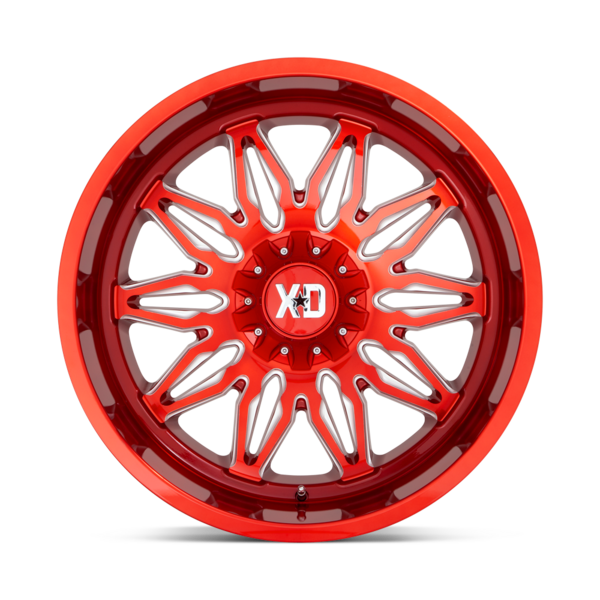

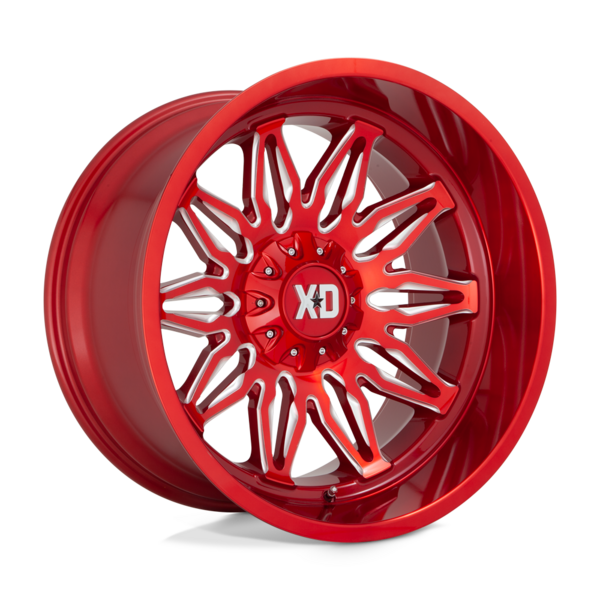

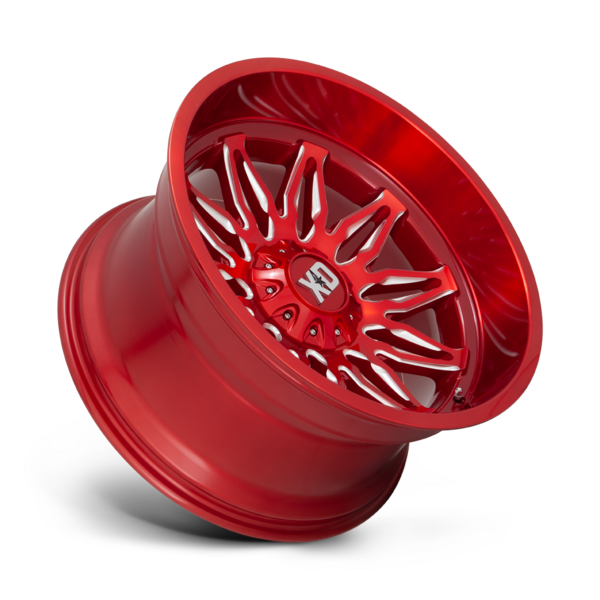

KMC Wheels XD859 Gunner 20 Inch Wheel (MPN: XD85921035918N)

Durable cast aluminum wheel with striking candy red finish and advanced features.

The KMC Wheels XD859 Gunner is a 20 inch diameter wheel designed for trucks and SUVs, featuring a robust 10 inch width. Constructed from a single piece of cast aluminum, this wheel offers a load capacity of 2500 pounds, ensuring durability and strength for various driving conditions. The candy red finish with milled accents not only enhances the aesthetic appeal but also provides a protective layer against the elements.

This wheel is engineered with a -18 millimeter offset and 4.79 inch backspacing, making it compatible with a range of vehicles. It supports multiple bolt patterns including 5 x 127 millimeter and 5 x 139.7 millimeter, allowing for versatile installation options. Additionally, the 60 degree conical seat lug nut design ensures a secure fit, while the 78.10 millimeter center bore accommodates various hub sizes.

The XD859 Gunner is also compatible with Tire Pressure Monitoring Systems (TPMS), providing added convenience for monitoring tire health. With a maximum tire diameter of 42 inches, this wheel is suitable for a variety of tire sizes, making it a practical choice for those looking to enhance their vehicle's performance and appearance.

Features

• Candy Red With Milled Accents
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD85921035918N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -18
• Backspacing: 4.79
• Finish: Painted Gloss With Milled Accents
• Color: Candy Red With Natural Accents
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: 5x5.50
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: 5x139.7
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 78.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 10 Split Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1970-1974 Chevrolet C10 Pickup
• 1988-1999 Chevrolet C1500
• 1989-1991 Chevrolet V1500 Suburban
• 1981-1986 GMC C1500
• 1988-1998 GMC C1500
• 1979-1986 GMC C1500 Suburban
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban
• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
