KMC Wheels XD858 Tension Wheel (MPN: XD85821063918N)

High-performance 20-inch wheel with striking design and durability.

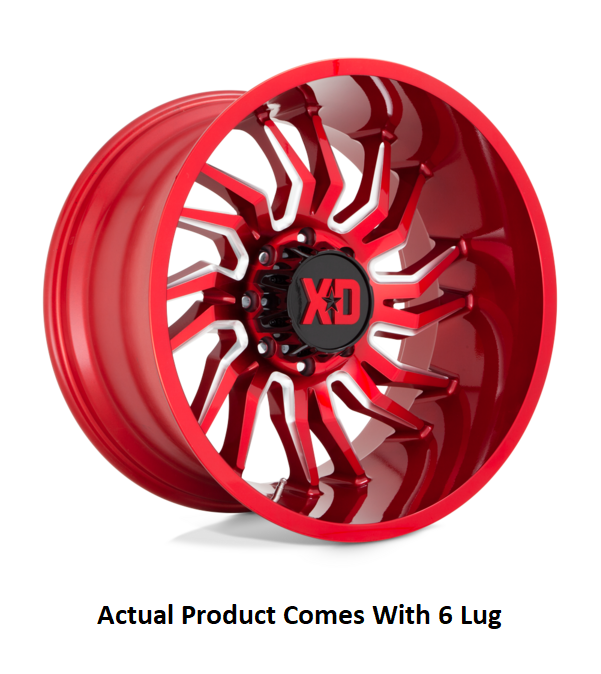

The KMC Wheels XD858 Tension Wheel features a robust 20-inch diameter and 10-inch width, designed for both aesthetic appeal and performance. Constructed from a single piece of cast aluminum, this wheel offers a load capacity of 2500 pounds, ensuring reliability under various driving conditions. The candy red finish with milled accents enhances its visual impact, making it a standout choice for trucks and SUVs.

With a bolt pattern of 6 x 135 millimeters and a negative offset of -18 millimeters, the XD858 Tension is engineered for optimal fitment and handling. It includes a 60-degree conical seat lug design and is compatible with Tire Pressure Monitoring Systems (TPMS), adding convenience and safety to your driving experience. The wheel's 8 split spoke design not only contributes to its modern look but also aids in heat dissipation during operation.

This wheel is designed to accommodate a maximum tire diameter of 42 inches, making it suitable for a variety of tire options. The included XD Series logo center cap adds a touch of branding, while the painted gloss finish ensures durability against the elements. With a lifetime structural warranty and a one-year finish warranty, the KMC Wheels XD858 Tension Wheel is built to last.

Features

• Candy Red With Milled Accents
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD85821063918N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -18
• Backspacing: 4.79
• Finish: Painted Gloss With Milled Accents
• Color: Candy Red With Natural Accents
• Material: Aluminum
• Bolt Pattern Inch: 6x5.31
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x135
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 87.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Split Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2004-2026 Ford F-150
