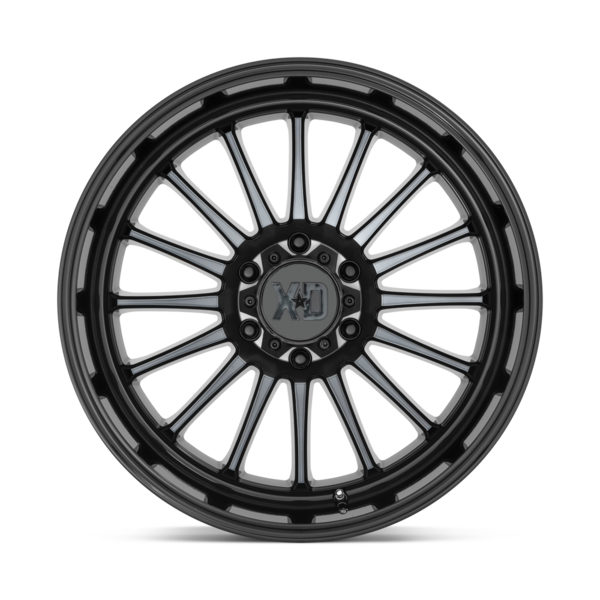

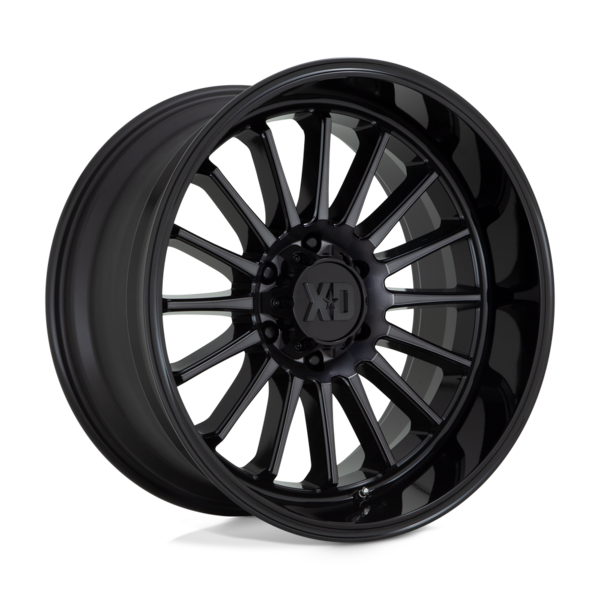

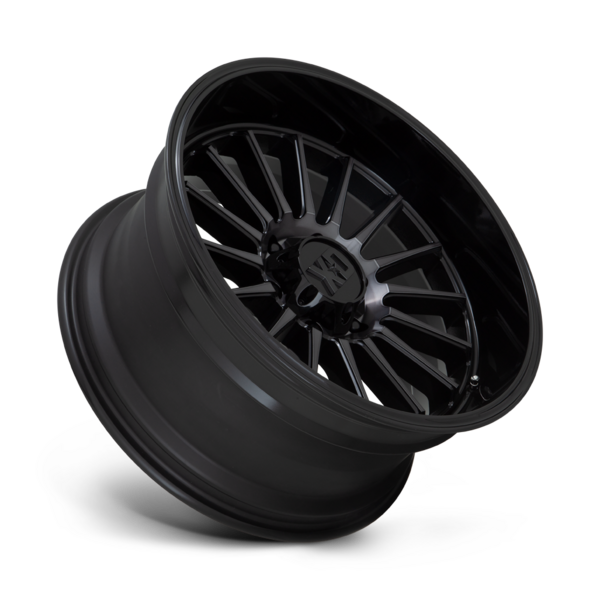

KMC Wheels XD857 Whiplash (MPN: XD85721050418N)

Durable 20 Inch Wheel with Stylish Design and High Load Capacity

The KMC Wheels XD857 Whiplash is a robust 20 inch wheel designed for trucks and SUVs, featuring a 10 inch width and a 5 x 127 millimeter bolt pattern. Constructed from a single piece of cast aluminum, this wheel offers a glossy black finish with a gray tinted face, ensuring both durability and aesthetic appeal. With a load capacity of 2500 pounds, it is engineered to handle demanding conditions while maintaining performance and style.

This wheel includes a 60 degree conical seat lug and a center bore of 71.50 millimeters, making it compatible with various tire pressure monitoring systems (TPMS). The 16 spoke design not only enhances the visual impact but also contributes to the overall strength of the wheel. The XD Series logo center cap adds a distinctive touch, making it a standout choice for vehicle customization.

The KMC XD857 Whiplash is designed for maximum tire diameter of 42 inches, providing versatility for different tire options. With a negative offset of -18 millimeters and a backspacing of 4.79 inches, this wheel is optimized for performance and fitment on lifted or lowered vehicles. The painted gloss finish is not only visually striking but also offers protection against the elements, ensuring longevity and reliability.

Features

• Gloss Black With Gray Tinted Face
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD85721050418N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -18
• Backspacing: 4.79
• Finish: Painted Gloss
• Color: Black With Gray Tinted Face
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 16 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
