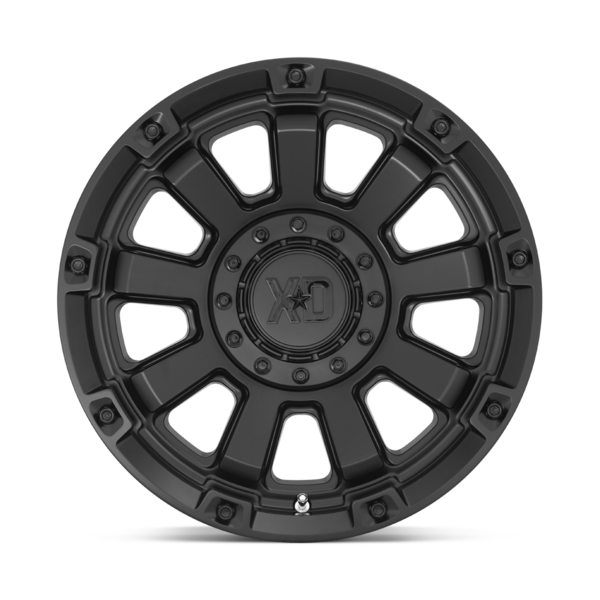

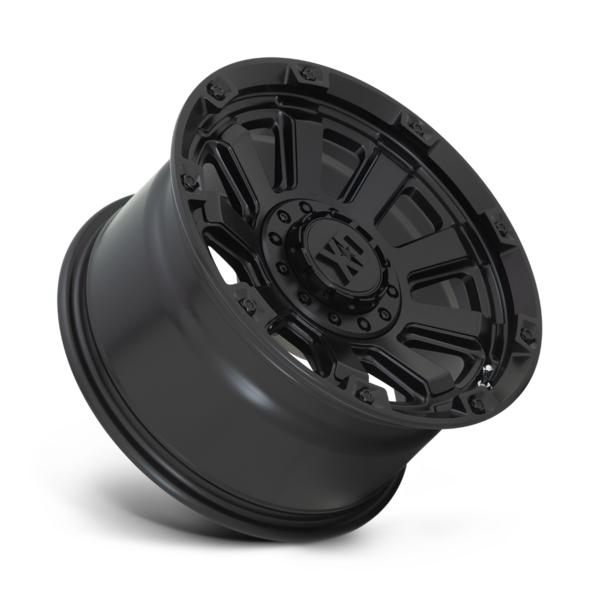

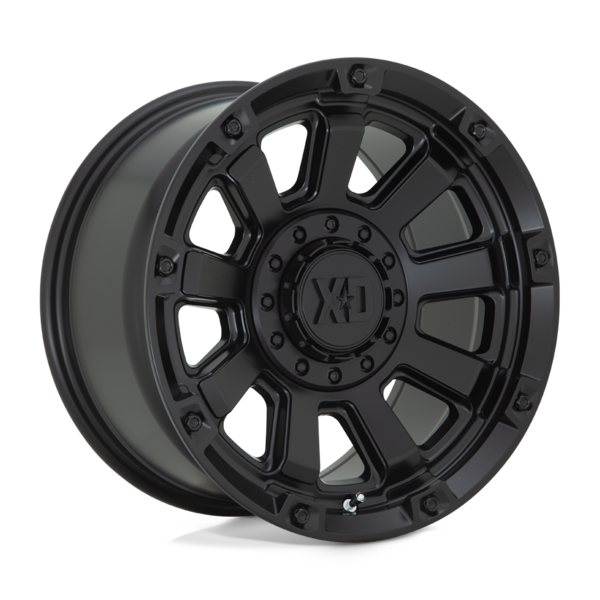

KMC Wheels XD852 Gauntlet 20 Inch Wheel (MPN: XD85229035700)

Durable and stylish wheel designed for trucks and SUVs.

The KMC Wheels XD852 Gauntlet is a 20 inch wheel that combines strength and style, making it suitable for a variety of trucks and SUVs. Constructed from a single piece of cast aluminum, this wheel features a satin black finish that enhances its aesthetic appeal while providing durability. With a load capacity of 2500 pounds, it is engineered to handle heavy loads, ensuring reliability on the road.

This wheel is designed with a 9 spoke configuration and is compatible with Tire Pressure Monitoring Systems (TPMS), adding convenience for vehicle owners. The 60 degree conical seat lug nut design ensures a secure fit, while the 78.10 millimeter center bore accommodates a range of vehicles. The XD Series logo center cap adds a distinctive touch, making this wheel a standout choice for those looking to enhance their vehicle's appearance.

With a maximum tire diameter of 40 inches, the XD852 Gauntlet is versatile enough to fit various tire sizes, making it a practical option for off-road and on-road applications. The wheel's specifications include a 5 x 127 millimeter bolt pattern, a 0 millimeter offset, and 5.00 inches of backspacing, ensuring compatibility with a wide range of vehicles. KMC Wheels stands behind their product with a lifetime structural warranty and a one-year finish warranty, providing peace of mind for customers.

Features

• Satin Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD85229035700
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 0
• Backspacing: 5.00
• Finish: Painted Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: 5x5.50
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: 5x139.7
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 78.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 9 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1978 Buick Electra
• 1965-1970 Buick Wildcat
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1970-1972 Chevrolet Brookwood
• 1967-1974 Chevrolet C10 Pickup
• 1970-1986 Chevrolet C10 Suburban
• 1988-1999 Chevrolet C1500
• 1992-1999 Chevrolet C1500 Suburban
• 1996-2002 Chevrolet Express 1500
• 1982-1984 Chevrolet G10
• 1986-1994 Chevrolet G10
• 1970-1974 Chevrolet G10 Van
• 1975-1995 Chevrolet G20
• 1970-1974 Chevrolet G20 Van
• 1971-1975 Chevrolet Impala
• 1982-1989 Chevrolet P20
• 1987-1987 Chevrolet R10
• 1987-1988 Chevrolet R10 Suburban
• 1989-1991 Chevrolet R1500 Suburban
• 1995-1999 Chevrolet Tahoe
• 1989-1991 Chevrolet V1500 Suburban
• 1975-1978 GMC C15
• 1979-1986 GMC C1500
• 1988-1998 GMC C1500
• 1979-1986 GMC C1500 Suburban
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban
• 1996-2002 GMC Savana 1500
• 2020-2025 Jeep Gladiator JT
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
• 1972-1976 Lincoln Continental
• 1979-1980 Lincoln Continental
• 1975-1976 Lincoln Mark IV
• 1977-1979 Lincoln Mark V
• 1977-1980 Lincoln Versailles
• 1967-1976 Pontiac Bonneville
• 1967-1970 Pontiac Catalina
