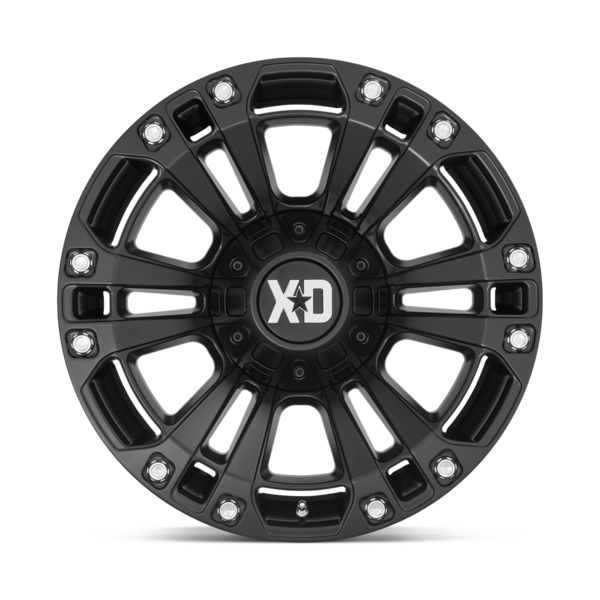

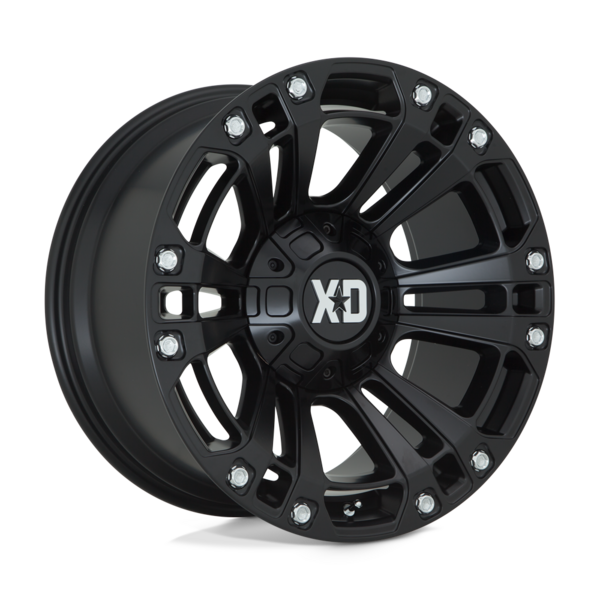

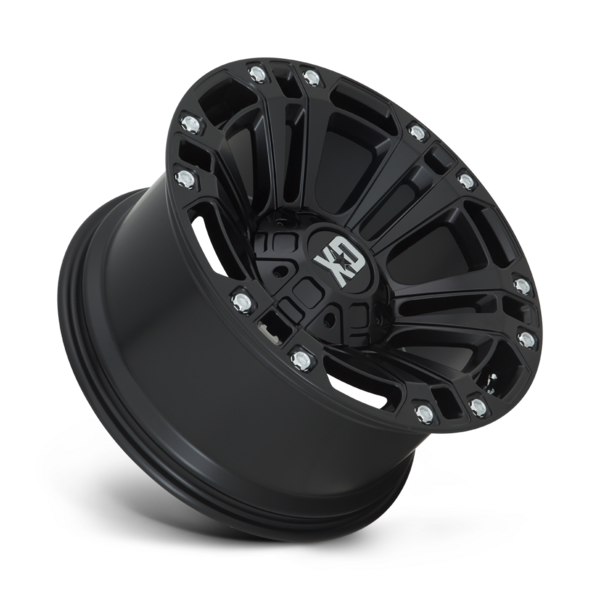

KMC Wheels XD851 Monster 3 (MPN: XD85129088718)

High-performance 20 inch wheel designed for trucks and SUVs.

The KMC Wheels XD851 Monster 3 is a robust 20 inch diameter wheel designed to enhance the performance and aesthetics of trucks and SUVs. With a width of 9 inches and a load capacity of 3640 pounds, this wheel is engineered to support heavy-duty applications while maintaining structural integrity. The satin black finish provides a sleek appearance, while the 1 piece cast aluminum construction ensures durability and strength under various driving conditions.

This wheel features a bolt pattern of 8 x 180 millimeters and an 18 millimeter offset, making it compatible with a wide range of vehicles. The 60 degree conical seat lug nut design allows for secure installation, and the 124.20 millimeter center bore accommodates various hub sizes. Additionally, the XD851 Monster 3 is compatible with Tire Pressure Monitoring Systems (TPMS), providing drivers with real-time tire pressure information for enhanced safety.

The design includes a 6 split spoke pattern and comes with an XD Series logo center cap, adding a distinctive touch to the overall look. With a maximum tire diameter of 40 inches, this wheel is suitable for off-road and on-road applications, making it a versatile choice for vehicle customization. The KMC Wheels XD851 Monster 3 combines style, performance, and reliability for those seeking to elevate their vehicle's capabilities.

Features

• Satin Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD85129088718
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 18
• Backspacing: 5.71
• Finish: Painted Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 8x7.09
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 8x180
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 124.20
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 6 Split Spoke
• With Inserts: No
• Load Capacity: 3640
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2011-2026 Chevrolet Silverado 2500 HD
• 2011-2026 Chevrolet Silverado 3500 HD
• 2016-2019 Chevrolet Suburban 3500 HD
• 2012-2026 GMC Sierra 2500 HD
• 2011-2014 GMC Sierra 3500 HD
• 2016-2026 GMC Sierra 3500 HD
