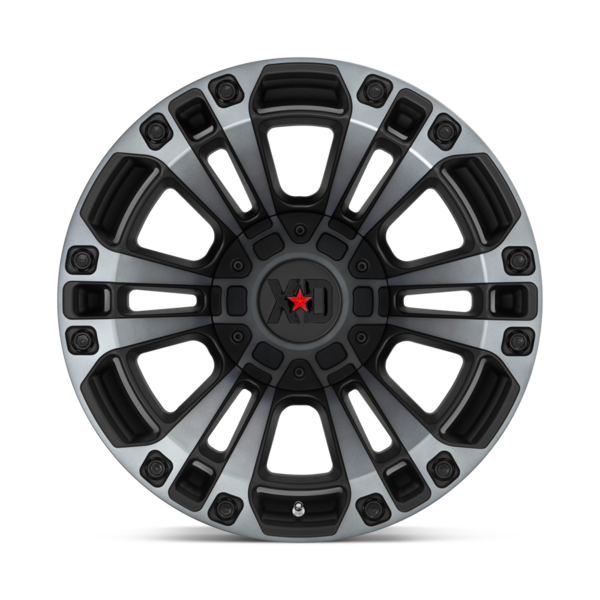

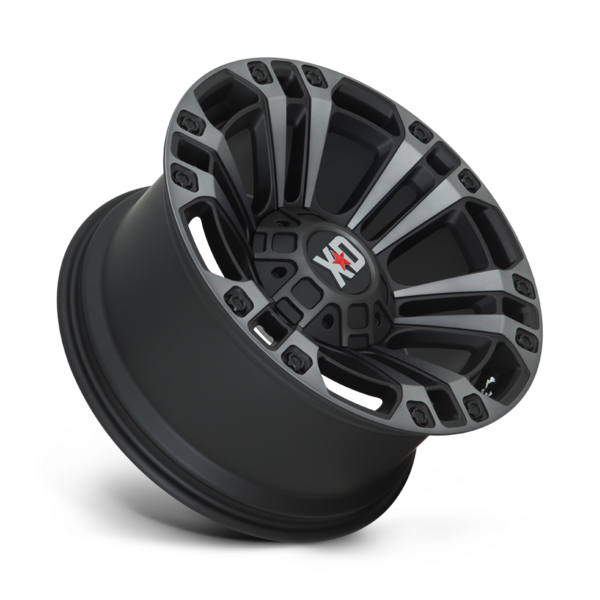

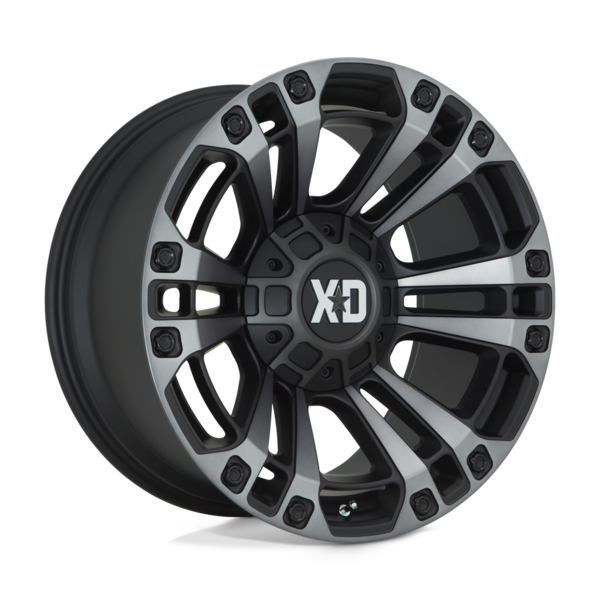

KMC Wheels XD851 Monster 3 (MPN: XD85121035418N)

High-performance 20-inch wheel designed for trucks and SUVs.

The KMC Wheels XD851 Monster 3 is a robust 20-inch wheel designed specifically for trucks and SUVs, featuring a 10-inch width and a striking satin black finish with a gray tinted face. Constructed from a single piece of cast aluminum, this wheel offers durability and strength, with a load capacity of 2500 pounds, making it suitable for various driving conditions. The design includes a 6 split spoke pattern and is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring optimal performance and safety on the road.

With a bolt pattern accommodating multiple configurations, including 5 x 127 millimeter and 5 x 139.7 millimeter, the XD851 Monster 3 provides versatility for different vehicle models. The wheel features a -18 millimeter offset and 4.79 inches of backspacing, which contribute to its aggressive stance and improved handling. Additionally, the 60-degree conical seat lug nut design ensures a secure fit, while the included XD Series logo center cap adds a touch of style.

This wheel is engineered for maximum tire diameter of 42 inches, allowing for a wide range of tire options to enhance your vehicle's performance. The painted satin finish not only enhances the aesthetic appeal but also provides protection against the elements. With a lifetime structural warranty and a one-year finish warranty, the KMC Wheels XD851 Monster 3 is a reliable choice for those seeking quality and performance in their wheel selection.

Features

• Satin Black With Gray Tinted
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD85121035418N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -18
• Backspacing: 4.79
• Finish: Painted Satin
• Color: Black With Gray Tinted Face
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: 5x5.50
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: 5x139.7
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 78.30
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 6 Split Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1970-1974 Chevrolet C10 Pickup
• 1988-1999 Chevrolet C1500
• 1994-1996 Chevrolet Impala
• 1989-1991 Chevrolet V1500 Suburban
• 2000-2010 Dodge Ram 1500
• 1981-1986 GMC C1500
• 1988-1998 GMC C1500
• 1979-1986 GMC C1500 Suburban
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban
• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
• 2011-2018 Ram 1500
• 2024-2024 Ram 1500 Classic
• 2019-2023 Ram 1500 Classic- Old Model
