KMC Wheels XD847 Outbreak 20 Inch Wheel (MPN: XD84721050318N)

Durable cast aluminum wheel with striking design and high load capacity.

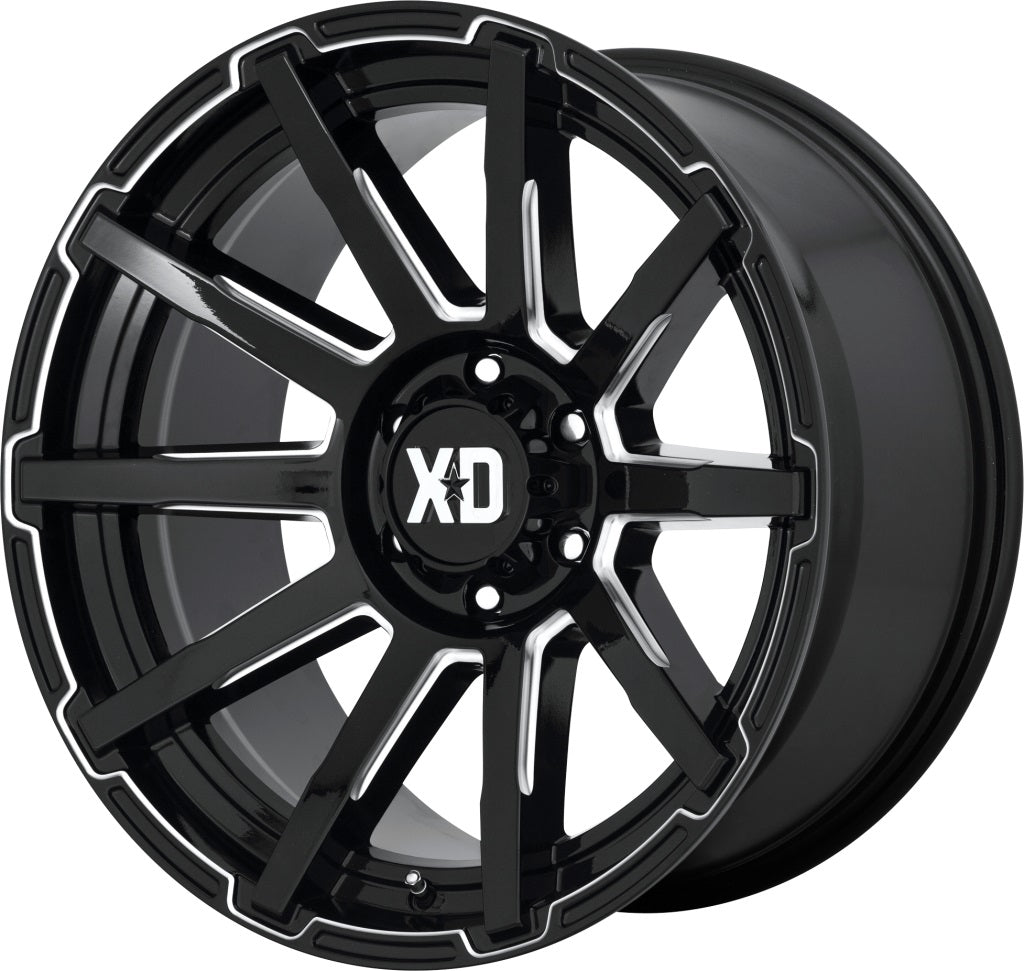

The KMC Wheels XD847 Outbreak is a 20 inch diameter wheel designed for trucks and SUVs, featuring a robust 10 inch width. Constructed from a single piece of cast aluminum, this wheel offers a load capacity of 2500 pounds, making it suitable for various applications. The wheel showcases a gloss black finish with milled accents, providing an aesthetic appeal that complements lifted or lowered vehicles. With a 5 x 127 millimeter bolt pattern and a 60 degree conical seat lug nut design, it ensures compatibility with a wide range of vehicles. Additionally, the XD847 is compatible with Tire Pressure Monitoring Systems, enhancing safety and performance.

Features

• Gloss Black With Milled Accents
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD84721050318N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -18
• Backspacing: 4.79
• Finish: Painted Gloss With Milled Accents
• Color: Black With Natural Accents
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 10 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
