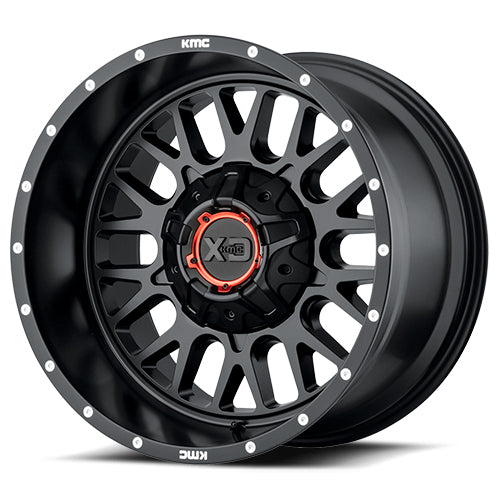

KMC Wheels XD842 Snare Wheel (MPN: XD84221035718N)

Durable 20 Inch Wheel with Deep Lip Design for Off-Road Performance

The KMC Wheels XD842 Snare Wheel features a robust 20 inch diameter and 10 inch width, designed for enhanced performance in off-road conditions. Constructed from a single piece of cast aluminum, this wheel offers a satin black finish that not only provides aesthetic appeal but also durability against harsh environments. With a load capacity of 2500 pounds, it is engineered to support heavy-duty applications while maintaining structural integrity.

This wheel is compatible with various bolt patterns including 5 x 127 millimeter, 5 x 139.7 millimeter, and 5 x 5.00 inch, making it versatile for different vehicle models. The 60 degree conical seat lug design ensures a secure fit, while the 4.79 inch backspacing and -18 millimeter offset contribute to improved handling and stability. Additionally, the XD842 Snare Wheel accommodates a maximum tire diameter of 42 inches, making it suitable for lifted and leveled trucks or Jeeps.

Equipped with a center bore of 78.30 millimeters and featuring the XD Series logo center cap, this wheel combines functionality with style. It is also compatible with Tire Pressure Monitoring Systems (TPMS), providing added convenience for monitoring tire health. The KMC Wheels XD842 Snare Wheel is backed by a lifetime structural warranty and a one-year finish warranty, ensuring long-lasting performance.

Features

• Satin Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD84221035718N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -18
• Backspacing: 4.79
• Finish: Painted Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: 5x5.50
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: 5x139.7
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 78.30
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 10 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1970-1974 Chevrolet C10 Pickup
• 1988-1999 Chevrolet C1500
• 1994-1996 Chevrolet Impala
• 1989-1991 Chevrolet V1500 Suburban
• 1981-1986 GMC C1500
• 1988-1998 GMC C1500
• 1979-1986 GMC C1500 Suburban
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban
• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
