Durable and lightweight design for off-road performance and style.

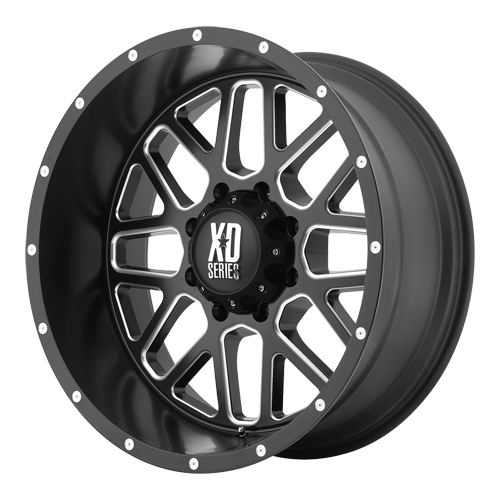

The KMC Wheels XD820 Grenade is a 22 inch diameter wheel designed for off-road enthusiasts seeking both style and performance. Constructed from a single piece of cast aluminum, this wheel features a satin black finish with milled accents, providing a rugged yet refined appearance. With a load capacity of 2500 pounds, it is engineered to withstand the demands of off-road racing, rock crawling, and mudding.
The XD820 Grenade wheel has a bolt pattern of 6 x 139.7 millimeters and a -44 millimeter offset, ensuring compatibility with a wide range of vehicles. Its 4.77 inch backspacing and 106.25 millimeter center bore facilitate a secure fit, while the 60 degree conical seat lug nut design enhances stability. Additionally, this wheel is compatible with Tire Pressure Monitoring Systems (TPMS), allowing for easy monitoring of tire conditions.
With a maximum tire diameter of 40 inches, the XD820 Grenade is designed to accommodate larger tires, making it a versatile choice for off-road applications. The 8 spoke design not only adds to its aesthetic appeal but also contributes to its lightweight construction, making it a preferred option for those who prioritize performance without sacrificing style.
Features
- Satin Black With Milled Accents
- 1-Piece Cast Aluminum Construction
- Compatible With TPMS (Tire Pressure Monitoring System)
- With XD Series Logo Center Cap
- Designs Are Race-Proven And Feature An Unmatched Combination Of Light Weight And Durability
Specifications
- Manufacturer: KMC Wheels
- Manufacturer Part Number: XD82022268944N
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 22
- Width: 12
- Offset: -44
- Backspacing: 4.77
- Finish: Painted Satin With Milled Accents
- Color: Black With Natural Accents
- Material: Aluminum
- Bolt Pattern Inch: 6x5.50
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 6x139.7
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: Yes
- Center Bore: 106.25
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 8 Spoke
- With Inserts: No
- Load Capacity: 2500
- Size: 22x12
- Max Tire Diameter: 40
- Center Cap Design: XD Series Logo
- Finish Warranty: 1 Year
- Structural Warranty: Lifetime
- Quantity: Single
- Construction: One Piece Cast
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
