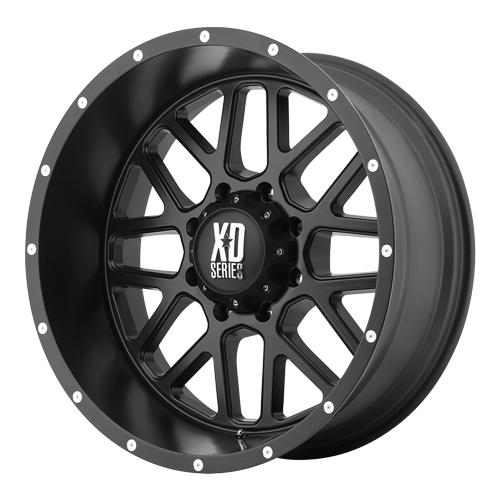

KMC Wheels XD820 Grenade 18 Inch Wheel (MPN: XD82089050718)

Lightweight and durable design for off-road performance.

The KMC Wheels XD820 Grenade is an 18 inch wheel designed for off-road enthusiasts seeking a combination of style and performance. Constructed from one-piece cast aluminum, this wheel features a satin black finish that enhances its rugged appearance while providing durability. With an 8 spoke design and a load capacity of 2500 pounds, it is engineered to withstand the demands of off-road driving.

This wheel is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that tire pressure is monitored effectively during use. The 5 x 127 millimeter bolt pattern and 60 degree conical seat lug nut design facilitate easy installation on a variety of vehicles. Additionally, the 78.30 millimeter center bore allows for a secure fit, making it a reliable choice for off-road racers, rock crawlers, and mudders alike.

The XD820 Grenade wheel is designed to accommodate a maximum tire diameter of 38 inches, providing versatility for different tire options. With its race-proven design, this wheel not only enhances the aesthetic appeal of your vehicle but also contributes to improved performance on challenging terrains.

Features

• Satin Black Finish
• 1-Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap
• Designs Are Race-Proven And Feature An Unmatched Combination Of Light Weight And Durability

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD82089050718
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 18
• Width: 9
• Offset: 18
• Backspacing: 5.71
• Finish: Painted Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 78.30
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 18x9
• Max Tire Diameter: 38
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1991-1996 Buick Roadmaster
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1995-1999 Chevrolet Astro
• 1970-1974 Chevrolet Blazer
• 1975-1986 Chevrolet C10
• 1970-1974 Chevrolet C10 Pickup
• 1970-1986 Chevrolet C10 Suburban
• 1988-1999 Chevrolet C1500
• 1992-1999 Chevrolet C1500 Suburban
• 1983-1996 Chevrolet Caprice
• 1996-2002 Chevrolet Express 1500
• 1975-1995 Chevrolet G10
• 1970-1974 Chevrolet G10 Van
• 1975-1995 Chevrolet G20
• 1970-1974 Chevrolet G20 Van
• 1971-1975 Chevrolet Impala
• 1994-1996 Chevrolet Impala
• 1982-1989 Chevrolet P20
• 1987-1987 Chevrolet R10
• 1987-1988 Chevrolet R10 Suburban
• 1989-1991 Chevrolet R1500 Suburban
• 1995-1999 Chevrolet Tahoe
• 1989-1991 Chevrolet V1500 Suburban
• 2016-2016 Chrysler Town & Country
• 2020-2026 Chrysler Voyager
• 2024-2025 Dodge Charger Daytona
• 2018-2020 Dodge Grand Caravan
• 2018-2020 Dodge Journey
• 1975-1978 GMC C15
• 1967-1969 GMC C15/C1500 Pickup
• 1979-1980 GMC C1500
• 1979-1986 GMC C1500 Suburban
• 1992-1992 GMC C1500 Suburban
• 1994-1999 GMC C1500 Suburban
• 1975-1978 GMC G15
• 1979-1995 GMC G1500
• 1975-1978 GMC G25
• 1980-1995 GMC G2500
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban
• 2000-2001 GMC Safari
• 1996-2002 GMC Savana 1500
• 1992-1999 GMC Yukon
• 2006-2006 Jeep Commander
• 2008-2010 Jeep Commander
• 2020-2025 Jeep Gladiator JT
• 1999-1999 Jeep Grand Cherokee
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
• 1973-1976 Lincoln Continental
• 1979-1980 Lincoln Continental
• 1975-1976 Lincoln Mark IV
• 1977-1979 Lincoln Mark V
• 1977-1980 Lincoln Versailles
• 1982-1989 Oldsmobile Custom Cruiser
• 1980-1983 Oldsmobile Cutlass Cruiser
• 1987-1987 Oldsmobile Cutlass Cruiser
• 1967-1976 Pontiac Bonneville
• 1967-1970 Pontiac Catalina
