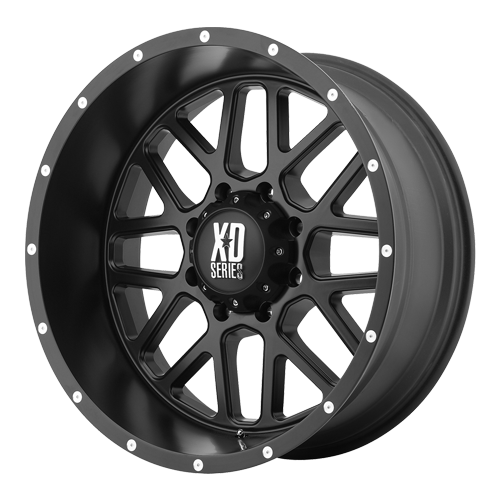

KMC Wheels XD820 Grenade 18 Inch Wheel (MPN: XD82089050712N)

Durable and lightweight design for off-road performance.

The KMC Wheels XD820 Grenade is an 18 inch wheel designed for off-road enthusiasts seeking a combination of style and performance. With a width of 9 inches and a -12 millimeter offset, this wheel is engineered to enhance vehicle stability and handling on rugged terrains. The 8 spoke design, finished in satin black, not only provides a bold aesthetic but also contributes to the wheel's overall durability and strength.

Constructed from a single piece of cast aluminum, the XD820 Grenade offers a load capacity of 2500 pounds, making it suitable for various off-road applications. It features a 60 degree conical seat lug design and is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring optimal performance and safety. The wheel's center bore measures 78.30 millimeters, and it includes an XD Series logo center cap for added branding.

This wheel is designed to accommodate a maximum tire diameter of 38 inches, making it versatile for different tire options. The structural integrity is backed by a lifetime warranty, while the finish is protected with a one-year warranty, ensuring long-lasting quality. The XD820 Grenade is a reliable choice for those looking to enhance their off-road vehicle's capabilities.

Features

• Satin Black Finish
• 1-Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap
• Designs Are Race-Proven And Feature An Unmatched Combination Of Light Weight And Durability

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD82089050712N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 18
• Width: 9
• Offset: -12
• Backspacing: 4.53
• Finish: Painted Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 78.30
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 18x9
• Max Tire Diameter: 38
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1959-1963 Buick Invicta
• 1951-1958 Buick Special
• 1962-1970 Buick Wildcat
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1995-1999 Chevrolet Astro
• 1970-1974 Chevrolet Blazer
• 1970-1972 Chevrolet Brookwood
• 1975-1986 Chevrolet C10
• 1967-1974 Chevrolet C10 Pickup
• 1970-1986 Chevrolet C10 Suburban
• 1988-1999 Chevrolet C1500
• 1992-1999 Chevrolet C1500 Suburban
• 1980-1996 Chevrolet Caprice
• 1996-1999 Chevrolet Express 1500
• 1975-1995 Chevrolet G10
• 1970-1974 Chevrolet G10 Van
• 1975-1995 Chevrolet G20
• 1970-1974 Chevrolet G20 Van
• 1971-1975 Chevrolet Impala
• 1994-1996 Chevrolet Impala
• 1982-1989 Chevrolet P20
• 1987-1987 Chevrolet R10
• 1987-1988 Chevrolet R10 Suburban
• 1989-1991 Chevrolet R1500 Suburban
• 1995-1999 Chevrolet Tahoe
• 1989-1991 Chevrolet V1500 Suburban
• 1975-1978 GMC C15
• 1967-1969 GMC C15/C1500 Pickup
• 1979-1986 GMC C1500
• 1988-1998 GMC C1500
• 1979-1986 GMC C1500 Suburban
• 1992-1992 GMC C1500 Suburban
• 1994-1999 GMC C1500 Suburban
• 1975-1978 GMC G15
• 1979-1995 GMC G1500
• 1975-1978 GMC G25
• 1980-1995 GMC G2500
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban
• 1985-1999 GMC Safari
• 1996-1999 GMC Savana 1500
• 1992-1999 GMC Yukon
• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
• 1973-1976 Lincoln Continental
• 1979-1980 Lincoln Continental
• 1975-1976 Lincoln Mark IV
• 1977-1979 Lincoln Mark V
• 1977-1980 Lincoln Versailles
• 1982-1992 Oldsmobile Custom Cruiser
• 1980-1983 Oldsmobile Cutlass Cruiser
• 1987-1987 Oldsmobile Cutlass Cruiser
• 1967-1976 Pontiac Bonneville
• 1967-1970 Pontiac Catalina
