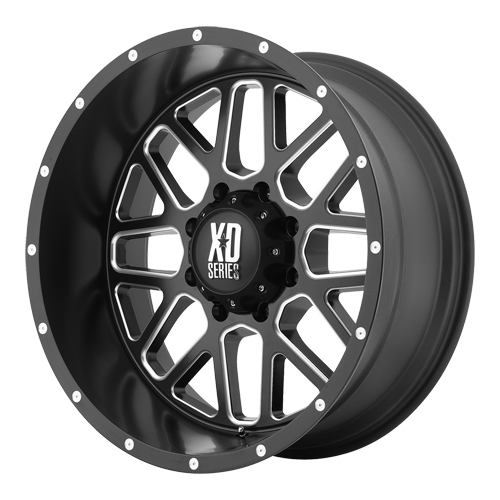

KMC Wheels XD820 Grenade 17 Inch Wheel (MPN: XD82078550900)

Durable and lightweight design for off-road performance and style.

The KMC Wheels XD820 Grenade is a 17 inch wheel designed for off-road enthusiasts seeking both style and performance. Constructed from a single piece of cast aluminum, this wheel features a satin black finish with milled accents, providing a rugged yet refined appearance. With an 8 spoke design and a load capacity of 2500 pounds, it is engineered to withstand the demands of off-road driving while maintaining a lightweight profile.

This wheel is compatible with Tire Pressure Monitoring Systems (TPMS) and has a 5 x 127 millimeter bolt pattern, making it versatile for various vehicle applications. The 0 millimeter offset and 4.75 inch backspacing ensure proper fitment and handling characteristics. Additionally, the 60 degree conical seat lug nut design enhances security and stability during operation.

The XD820 Grenade wheel is not only built for performance but also includes the XD Series logo center cap, adding a touch of branding to its robust design. With a maximum tire diameter of 40 inches, this wheel is suitable for a range of tire options, making it a practical choice for off-road racers, rock crawlers, and mudders alike.

Features

• Satin Black With Milled Accents
• 1-Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap
• Designs Are Race-Proven And Feature An Unmatched Combination Of Light Weight And Durability

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD82078550900
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 8.5
• Offset: 0
• Backspacing: 4.75
• Finish: Painted Satin With Milled Accents
• Color: Black With Natural Accents
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 78.30
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 17x8.5
• Max Tire Diameter: 40
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1959-1963 Buick Invicta
• 1991-1996 Buick Roadmaster
• 1951-1958 Buick Special
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1995-1999 Chevrolet Astro
• 1975-1986 Chevrolet C10
• 1967-1974 Chevrolet C10 Pickup
• 1970-1979 Chevrolet C10 Suburban
• 1981-1981 Chevrolet C10 Suburban
• 1992-1999 Chevrolet C1500 Suburban
• 1980-1996 Chevrolet Caprice
• 1996-2002 Chevrolet Express 1500
• 1971-1975 Chevrolet Impala
• 1994-1996 Chevrolet Impala
• 1987-1987 Chevrolet R10
• 1989-1991 Chevrolet R1500 Suburban
• 1995-1999 Chevrolet Tahoe
• 1989-1991 Chevrolet V1500 Suburban
• 1970-1974 Chrysler Imperial
• 1975-1978 GMC C15
• 1967-1974 GMC C15/C1500 Pickup
• 1979-1986 GMC C1500
• 1988-1998 GMC C1500
• 1992-1999 GMC C1500 Suburban
• 1975-1978 GMC G15
• 1979-1995 GMC G1500
• 1975-1978 GMC G25
• 1980-1995 GMC G2500
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban
• 1985-1999 GMC Safari
• 1996-1999 GMC Savana 1500
• 1995-1995 GMC Yukon
• 1997-1997 GMC Yukon
• 2020-2025 Jeep Gladiator JT
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
• 1982-1992 Oldsmobile Custom Cruiser
• 1980-1983 Oldsmobile Cutlass Cruiser
• 1987-1987 Oldsmobile Cutlass Cruiser
• 1967-1970 Pontiac Bonneville
• 1967-1970 Pontiac Catalina
