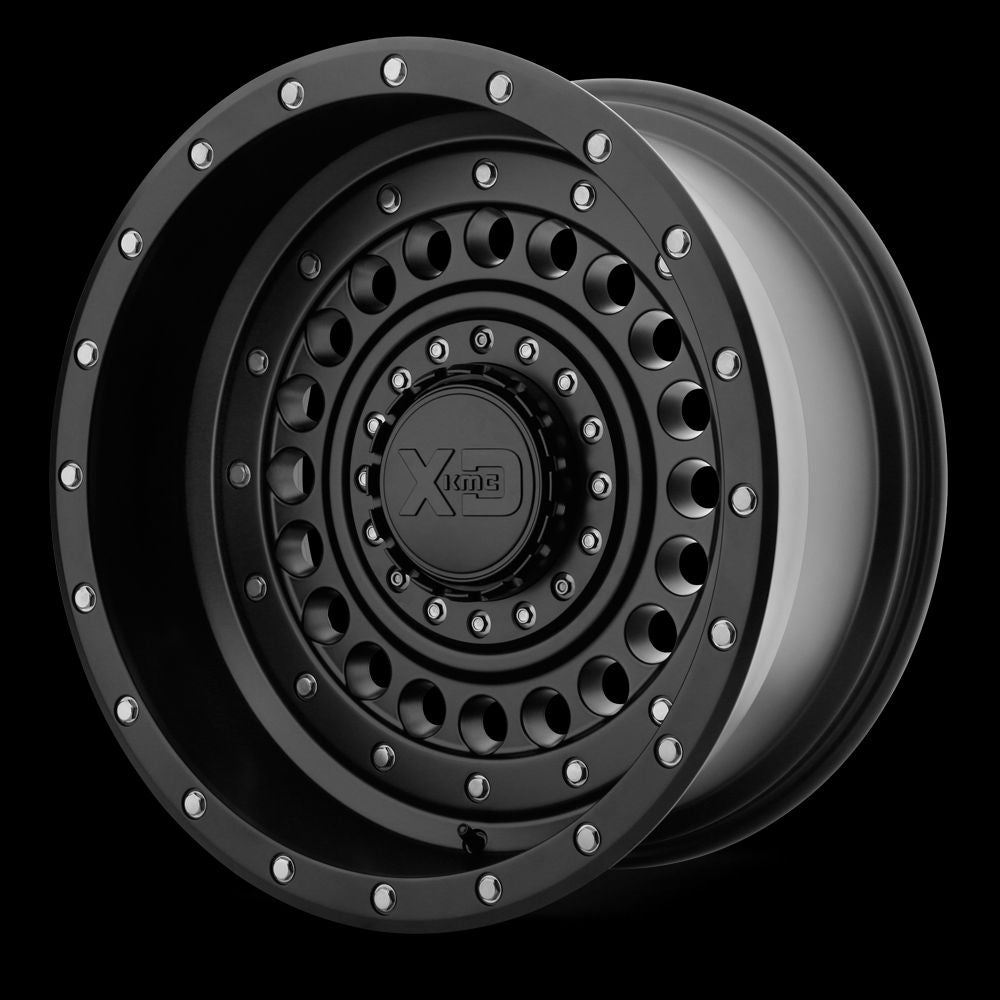

KMC Wheels XD136 Panzer Wheel (MPN: XD13679035712N)

Durable 17 Inch Wheel with Satin Black Finish and High Load Capacity

The KMC Wheels XD136 Panzer Wheel is engineered for strength and performance, featuring a robust 1 piece cast aluminum construction. With a diameter of 17 inches and a width of 9 inches, this wheel is designed to accommodate a variety of vehicles while supporting a maximum tire diameter of 40 inches. The satin black finish not only enhances its aesthetic appeal but also provides added durability against the elements.

This wheel is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that tire pressure is monitored effectively for optimal performance. The XD136 Panzer Wheel features a 60 degree conical seat lug design and a -12 millimeter offset, which contributes to improved handling and stability. With a load capacity of 2500 pounds, it is suitable for heavy-duty applications.

The wheel includes a center cap adorned with the XD Series logo, adding a distinctive touch to its design. The 20 hole basic design and various bolt patterns, including 5 x 127 millimeter and 5 x 139.7 millimeter, provide versatility for different vehicle fitments. This wheel is backed by a lifetime structural warranty, ensuring long-lasting reliability.

Features

• Satin Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD13679035712N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 9
• Offset: -12
• Backspacing: 4.53
• Finish: Painted Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: 5x5.50
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: 5x139.7
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 78.30
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 20 Hole
• With Inserts: No
• Load Capacity: 2500
• Size: 17x9
• Max Tire Diameter: 40
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1959-1963 Buick Invicta
• 1951-1958 Buick Special
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1995-1999 Chevrolet Astro
• 1975-1986 Chevrolet C10
• 1967-1974 Chevrolet C10 Pickup
• 1970-1979 Chevrolet C10 Suburban
• 1981-1981 Chevrolet C10 Suburban
• 1993-1999 Chevrolet C1500 Suburban
• 1980-1996 Chevrolet Caprice
• 1996-1999 Chevrolet Express 1500
• 1971-1975 Chevrolet Impala
• 1994-1996 Chevrolet Impala
• 1987-1987 Chevrolet R10
• 1989-1991 Chevrolet R1500 Suburban
• 1995-1999 Chevrolet Tahoe
• 1989-1991 Chevrolet V1500 Suburban
• 1975-1978 GMC C15
• 1967-1974 GMC C15/C1500 Pickup
• 1979-1986 GMC C1500
• 1988-1998 GMC C1500
• 1979-1986 GMC C1500 Suburban
• 1992-1999 GMC C1500 Suburban
• 1975-1978 GMC G15
• 1979-1995 GMC G1500
• 1975-1978 GMC G25
• 1980-1995 GMC G2500
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban
• 1985-1999 GMC Safari
• 1996-1999 GMC Savana 1500
• 1992-1999 GMC Yukon
• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
• 1982-1992 Oldsmobile Custom Cruiser
• 1980-1983 Oldsmobile Cutlass Cruiser
• 1987-1987 Oldsmobile Cutlass Cruiser
• 1967-1970 Pontiac Bonneville
• 1967-1970 Pontiac Catalina
