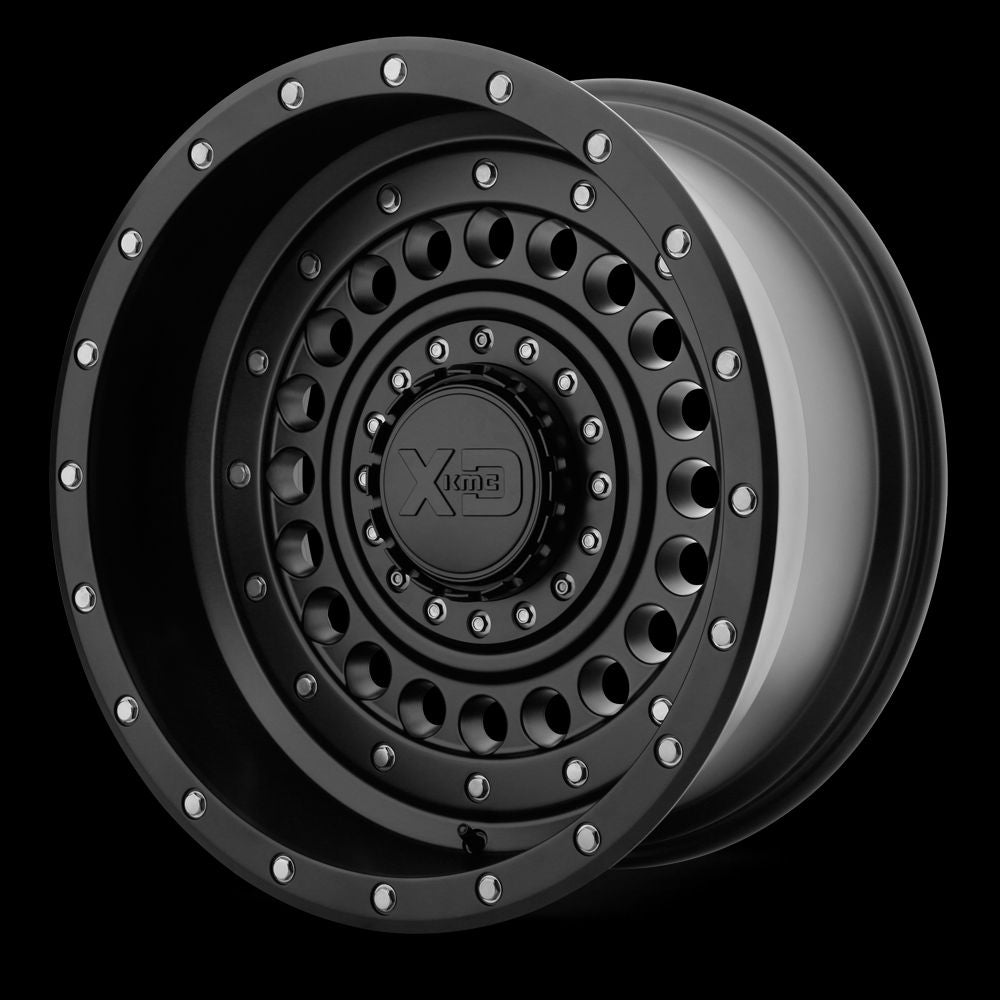

KMC Wheels XD136 Panzer Wheel (MPN: XD13621235744N)

Durable 20 Inch Wheel with Satin Black Finish and High Load Capacity

The KMC Wheels XD136 Panzer Wheel is engineered for strength and performance, featuring a robust 1 piece cast aluminum construction. With a diameter of 20 inches and a width of 12 inches, this wheel is designed to support a maximum tire diameter of 42 inches, making it suitable for a variety of vehicles. The satin black finish not only enhances its aesthetic appeal but also provides durability against the elements.

This wheel accommodates multiple bolt patterns including 5 x 127 millimeter, 5 x 139.7 millimeter, and 5 x 5.00 inch, ensuring compatibility with a wide range of vehicles. The 60 degree conical seat lug nut design and a load capacity of 2500 pounds make it a reliable choice for heavy-duty applications. Additionally, the wheel features a center bore of 78.30 millimeters and includes a center cap adorned with the XD Series logo.

The KMC Wheels XD136 Panzer Wheel is also compatible with Tire Pressure Monitoring Systems (TPMS), providing added convenience for monitoring tire health. With a negative offset of -44 millimeters and backspacing of 4.77 inches, this wheel is designed to enhance vehicle handling and stability. Backed by a lifetime structural warranty and a 1 year finish warranty, this wheel is built to last.

Features

• Satin Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD13621235744N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 12
• Offset: -44
• Backspacing: 4.77
• Finish: Painted Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: 5x5.50
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: 5x139.7
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 78.30
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 20 Hole
• With Inserts: No
• Load Capacity: 2500
• Size: 20x12
• Max Tire Diameter: 42
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
