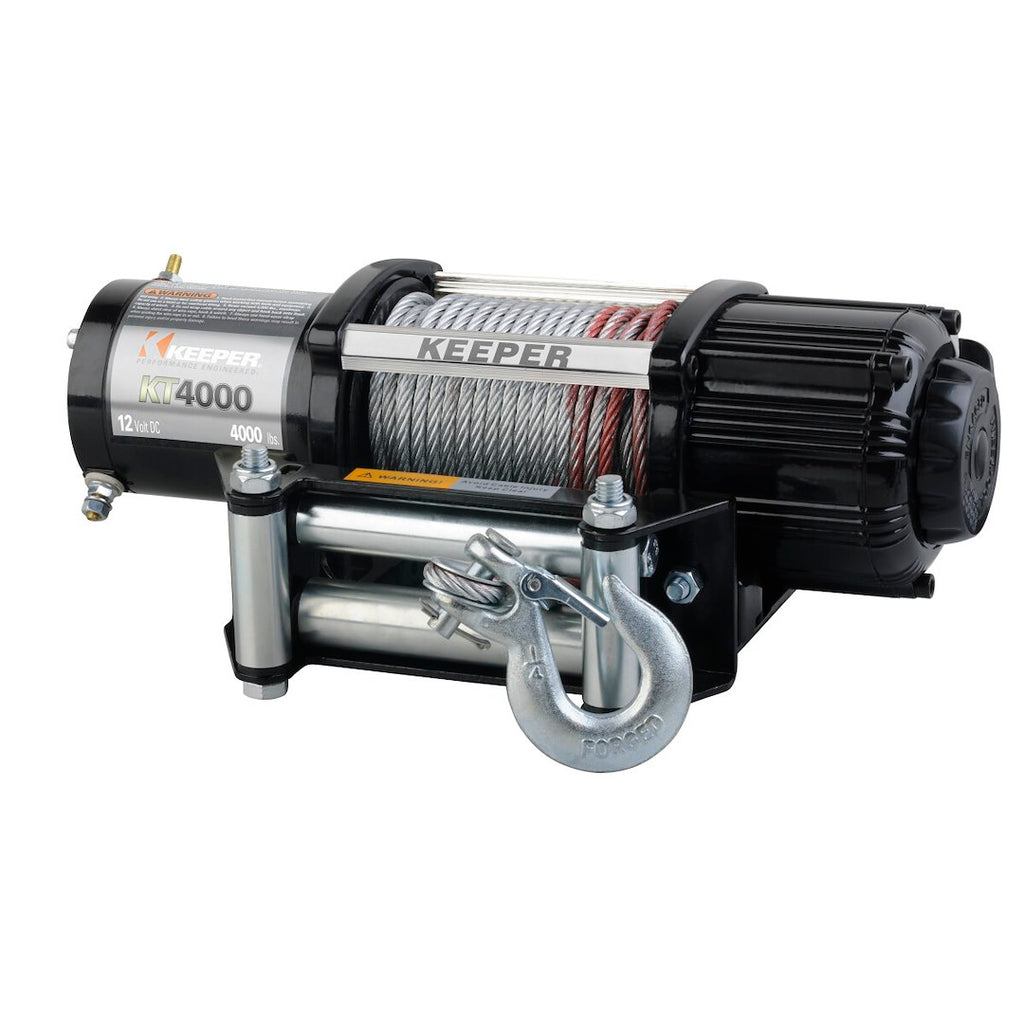

Keeper Corporation Winch (MPN: KT4000)

High-capacity electric winch for versatile utility applications.

The Keeper Corporation Winch is designed for a variety of applications including UTVs, race car trailers, and general utility use. With a robust 4000-pound single line pull capacity, this winch is equipped with a 12 Volt DC motor and a 55-foot galvanized wire rope, ensuring reliable performance in demanding situations. The winch features a three-stage planetary gear drive, providing efficient power transfer and control during operation.

This winch includes a wired remote for easy operation, allowing users to manage loads from a safe distance. The freespool clutch and mechanical and dynamic brake enhance safety and usability, making it easier to load and unload trailers. The all-metal gear train and drum-centric design contribute to the durability and longevity of the winch, while the unique mounting bracket allows for versatile installation options.

With a high-efficiency motor that draws low amps, the Keeper Corporation Winch is designed to minimize power consumption while maximizing performance. The included roller fairlead and load doubling pulley block further enhance its functionality, making it a valuable tool for both recreational and professional use.

Features

• Power In And Out, Circuit Breaker Protected
• Freespool Clutch. 3 Stage Planetary Gear Box
• Mechanical And Dynamic Brake. Drum Centric Design
• All Metal Gear Train. Hand Held Remote Switch
• High Efficiency Low Amp Draw Motor. Unique Mounting Bracket Allows For Removal And Use As Hand Held Remote
• 15 Feet Wired Hand Held Remote With Light And Handle Bar Mini Rocker Switch
• Roller Fairlead, Load Doubling Pulley Block, Flat Bed Mounting Plate Included

Specifications

• Manufacturer: Keeper Corporation
• Manufacturer Part Number: KT4000
• Winch Rating: 4000 Pound
• Recommended Use: ATV/ UTV
• Operation Type: Electric
• Mount Type: Fixed Mount
• Voltage: 12 Volt
• Free Spooling: Yes
• Line Length (FT): 55 Feet
• Line Material: Steel
• Remote Type: Wired
• Universality: Fully Universal
• Mounting Pattern Size: 3 Inch Length X 6-5/8 Inch Width
• Brake Type: Dynamic And Mechanical
• Max Amp Draw: 260 Amp Draw At 4000 Pound
• Gear Reduction Ratio: 136:1
• Includes Mounting Hardware: Yes
• Thermal Shutoff: No
• Color: Black
• Motor Horsepower: 1.6 Horsepower
• Fairlead Type: Roller
• Line Speed At Max Pull: 3.5 Feet Per Minute At 4000 Pound
• Electrical Control Type: Circuit Breaker
• Motor Type: Permanent Magnet
• Drive Gear Type: Planetary
• Line Diameter (IN): 7/32 Inch
• Mounting Hole Quantity: 4
• Drum Material: Steel
• Estimated Install Time (Hours): 2
