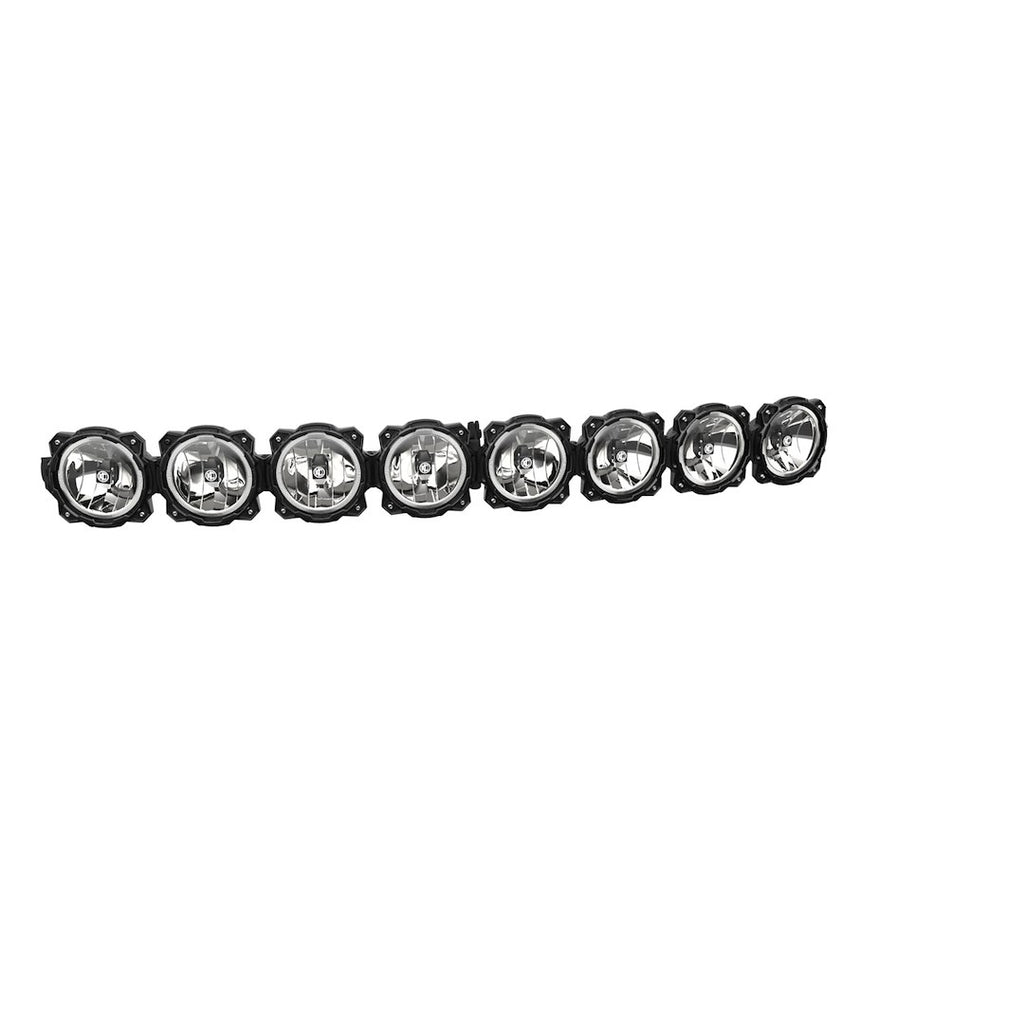

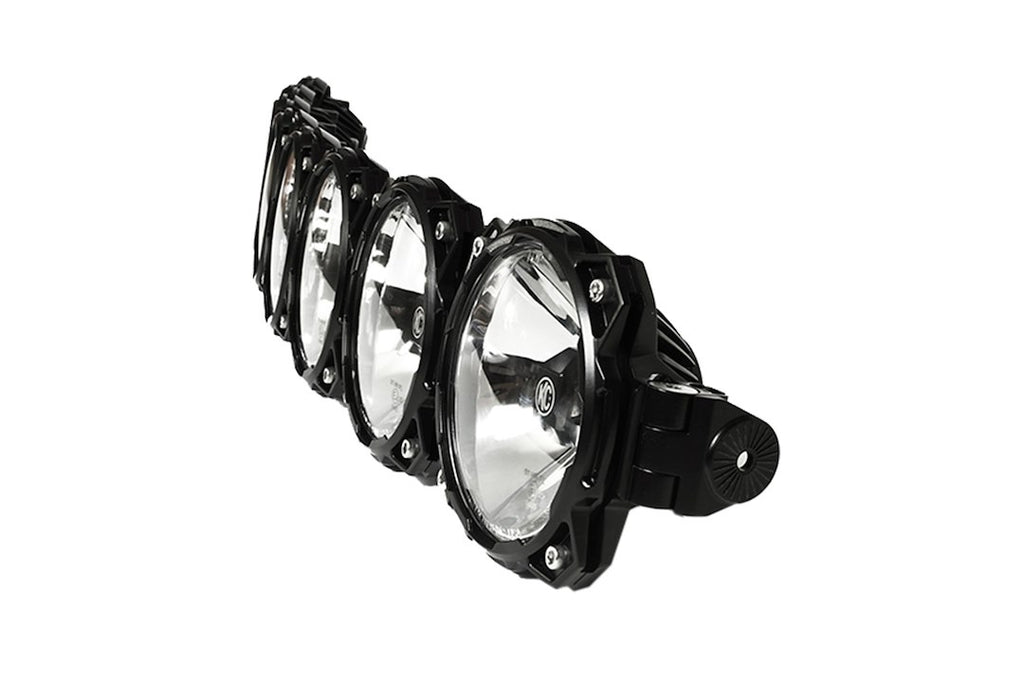

KC Hilites Gravity Pro6 LED Light Bar (MPN: 91398)

Modular and adjustable light bar with superior clarity and output.

The KC Hilites Gravity Pro6 LED Light Bar is designed for versatility and performance, featuring a unique modular system that allows users to customize their lighting setup. With a length of 50 inches and powered by eight clear LED bulbs, this light bar delivers an impressive 18400 raw lumens while maintaining a low amp draw of 13.04 amps. The patented Infinity Ring system enables easy transformation between straight and curved orientations, accommodating widths from 20 inches to 57 inches for various applications.

Utilizing KC's Gravity Reflective Diode technology, the Pro6 light bar provides exceptional light clarity and an effective beam pattern. The combination of spot and wide-40 beam types ensures optimal visibility in diverse conditions. Constructed with a durable black aluminum housing, this light bar is built to withstand the rigors of off-road environments.

The Pro6 can function as a standalone universal LED light bar or be integrated with KC M-RACKS for expanded lighting solutions. Included with the light bar are eight light covers, a wiring harness, and a switch, making installation straightforward and efficient. This product is engineered for users seeking reliable and powerful lighting solutions.

Features

• Powered By Patented And Powerful Gravity LED G6 Optical Inserts
• Patented Infinity Ring With Adjustable Radius Light Orientation
• G6 LED Reflector Optics Utilizing Spot And Wide-40 Beam Pattern Lights
• Use As A Standalone Universal LED Light Bar Or Add-On Light Bar To KC M-RACKS

Specifications

• Manufacturer: KC Hilites
• Manufacturer Part Number: 91398
• Bulb Type: LED
• Style: Straight
• Length: 50 Inch
• Beam Type: Combo Beam Spot And Wide-40
• Number Of Rows: 1
• Light Color: White
• Housing Color: Black
• Smart Technology Compatible: Not Smart Technology Compatible
• Lumens: 18400 Lumens
• Wattage: 160 Watt
• Width: 3.33 Inch
• Height: 6 Inch
• Voltage Rating: 9 To 32 Volt
• Ampere Rating At 12 Volts: 13.04 Amp
• Bulb Specifications: 8 Clear LED Bulbs
• Housing Material: Aluminum
• Mounting Length: 51-5/8 Inch
• Mounting Style: Universal Mount

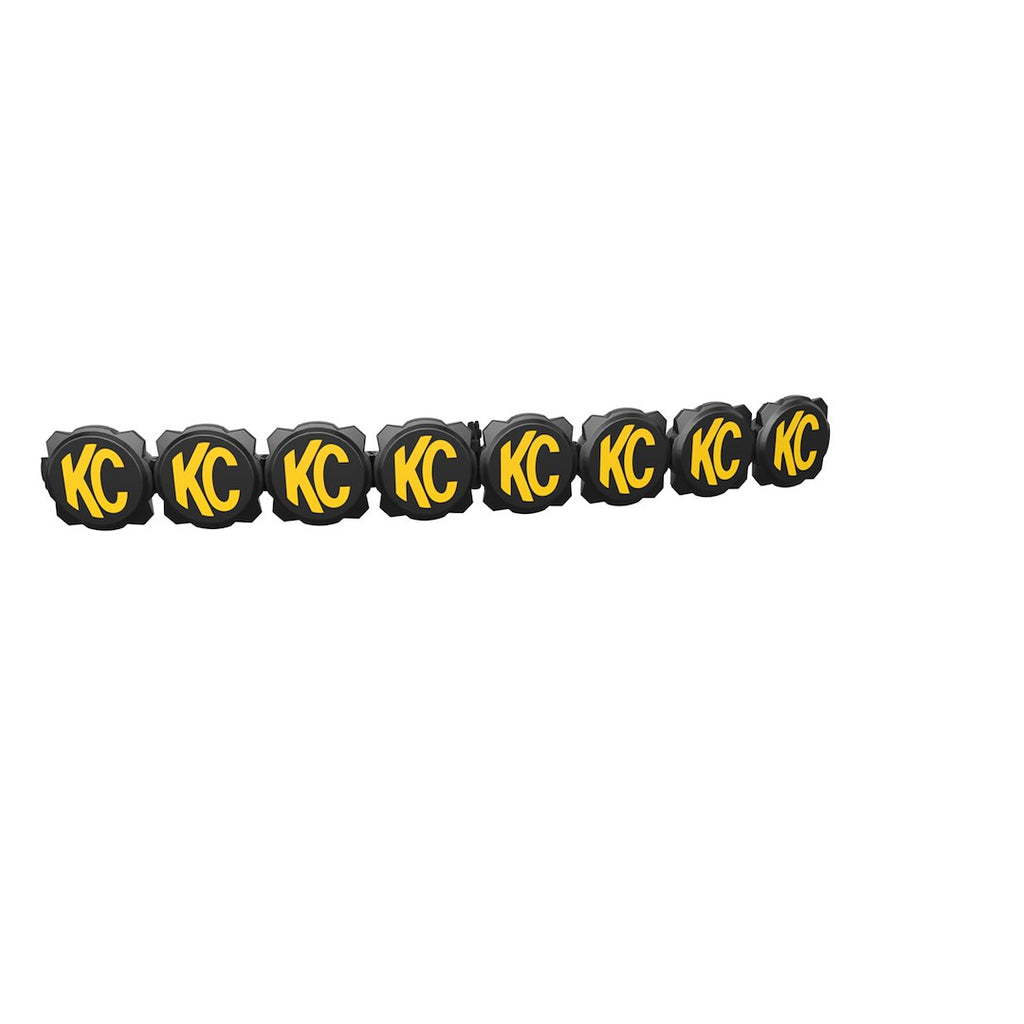

• Includes: With 8 Light Covers/ Wiring Harness/ Switch
• Estimated Install Time (Hours): 1.5

Technical Documents

• 3264QA_Pro6_Wiring_Instructions_20170907.pdf
• 3265dn-gravity_pro6lightbar_usletter_full_04112025-rev2.pdf
• kc_pro6_bars_data_sheet.pdf
• 91306-91313_Gravity_LED_Pro6_LEDLightBar_QuickStart.pdf
• 3265dn-gravity_pro6lightbar_usletter_full_04112025-rev2.pdf
• 91306-91313_Gravity_LED_Pro6_LEDLightBar_QuickStart.pdf
