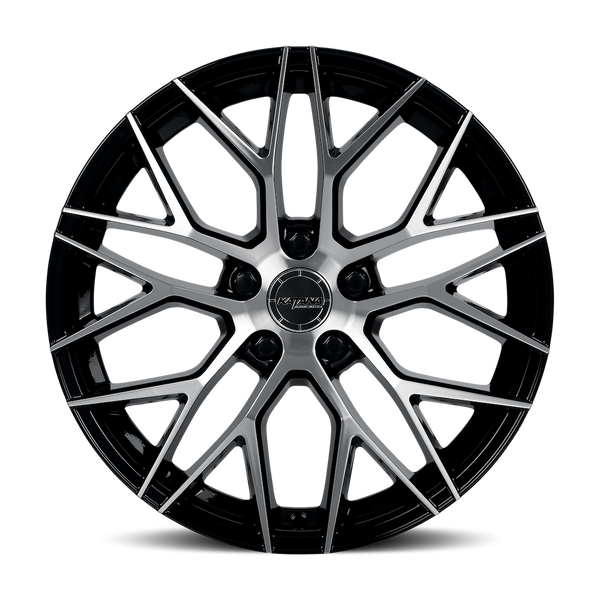

Katana Racing Wheels KR01 (MPN: KR01-208545GBF)

Durable 20 Inch Wheel with Modern Design and High Load Capacity

The Katana Racing Wheels KR01 model features a unique design inspired by the Ninja Sai, showcasing a sharp extruded main spoke that connects to a tapered apex point. This design results in a distinct hexagonal-shaped faceplate, while the outer fins extend beyond the lip of the wheel barrel, enhancing both aesthetics and structural integrity. Constructed from one-piece cast aluminum, this wheel offers a robust load capacity of 1600 pounds, making it suitable for various applications.

With a diameter of 20 inches and a width of 8.5 inches, the KR01 is designed to accommodate a maximum tire diameter of 34.1 inches. The wheel features a 5 x 120 millimeter bolt pattern and a 40 millimeter offset, ensuring compatibility with a wide range of vehicles. Additionally, the 60 degree conical seat lug nut design and 73.10 millimeter center bore provide a secure fitment.

The KR01 is finished in a gloss black with a machined face, offering a modern and streamlined appearance that complements today's popular colorways. It is also compatible with tire pressure monitoring systems, enhancing safety and performance. The inclusion of the Katana logo center cap adds a distinctive touch to the overall design.

Features

• Bold Symbolic Designs Integrated With High-Quality Manufacturing Processing Enable Un-Countered Durability And Strength In Our Wheels
• Features Modern Streamlined Designs Accompanied By Today's Most Popular Colorways To Fully Enable That Custom-Tailored Look For Your Vehicle
• Compatible With Tire Pressure Monitoring System
• With Katana Logo Center Cap
• Tough-Application-Chemically-Treated Coatings

Specifications

• Manufacturer: Katana
• Manufacturer Part Number: KR01-208545GBF
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 8.5
• Offset: 40
• Backspacing: 6.32
• Finish: Painted Gloss With Machined Face
• Color: Black With Natural Face
• Material: Aluminum
• Bolt Pattern Inch: 5x4.72
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x120
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 73.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Split Spoke
• With Inserts: No
• Load Capacity: 1600
• Size: 20x8.5
• Max Tire Diameter: 34.1
• Center Cap Design: Katana Logo
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2017-2020 Acura MDX
• 2022-2026 Acura MDX
• 2005-2012 Acura RL
• 2014-2020 Acura RLX
• 2009-2014 Acura TL
• 2021-2025 Acura TLX
• 2008-2009 BMW 128i
• 2011-2013 BMW 128i
• 2008-2013 BMW 135i
• 2013-2013 BMW 135is
• 2014-2016 BMW 228i
• 2016-2016 BMW 228i xDrive
• 2020-2021 BMW 228i xDrive Gran Coupe
• 2017-2024 BMW 230i
• 2017-2021 BMW 230i xDrive
• 2023-2025 BMW 230i xDrive
• 2013-2018 BMW 320i
• 2013-2018 BMW 320i xDrive
• 2000-2000 BMW 323Ci
• 1999-2000 BMW 323i
• 2001-2006 BMW 325Ci
• 2001-2006 BMW 325i
• 2005-2006 BMW 325xi
• 2000-2000 BMW 328Ci
• 2014-2018 BMW 328d
• 2014-2018 BMW 328d xDrive
• 1999-2000 BMW 328i
• 2007-2016 BMW 328i
• 2014-2016 BMW 328i GT xDrive
• 2009-2012 BMW 328i xDrive
• 2014-2016 BMW 328i xDrive
• 2007-2008 BMW 328xi
• 2001-2006 BMW 330Ci
• 2016-2018 BMW 330e
• 2001-2006 BMW 330i
• 2017-2018 BMW 330i
• 2017-2019 BMW 330i GT xDrive
• 2017-2019 BMW 330i xDrive
• 2006-2006 BMW 330xi
• 2009-2011 BMW 335d
• 2007-2015 BMW 335i
• 2014-2016 BMW 335i GT xDrive
• 2009-2015 BMW 335i xDrive
• 2011-2013 BMW 335is
• 2007-2008 BMW 335xi
• 2016-2018 BMW 340i
• 2017-2019 BMW 340i GT xDrive
• 2016-2018 BMW 340i xDrive
• 2014-2016 BMW 428i
• 2015-2016 BMW 428i Gran Coupe
• 2014-2016 BMW 428i xDrive
• 2015-2016 BMW 428i xDrive Gran Coupe
• 2017-2021 BMW 430i
• 2017-2020 BMW 430i Gran Coupe
• 2022-2022 BMW 430i Gran Coupe
• 2017-2021 BMW 430i xDrive
• 2017-2020 BMW 430i xDrive Gran Coupe
• 2014-2016 BMW 435i
• 2015-2016 BMW 435i Gran Coupe
• 2014-2016 BMW 435i xDrive
• 2015-2016 BMW 435i xDrive Gran Coupe
• 2017-2020 BMW 440i
• 2017-2020 BMW 440i Gran Coupe
• 2017-2020 BMW 440i xDrive
• 2017-2020 BMW 440i xDrive Gran Coupe
• 2011-2016 BMW 528i
• 2009-2010 BMW 528i xDrive
• 2012-2016 BMW 528i xDrive
• 2014-2016 BMW 535d
• 2014-2016 BMW 535d xDrive
• 2008-2010 BMW 535i
• 2013-2016 BMW 535i
• 2010-2017 BMW 535i GT
• 2011-2017 BMW 535i GT xDrive
• 2009-2010 BMW 535i xDrive
• 2013-2015 BMW 535i xDrive
• 2008-2008 BMW 535xi
• 2011-2016 BMW 550i
• 2011-2015 BMW 550i GT
• 2011-2017 BMW 550i GT xDrive
• 2011-2016 BMW 550i xDrive
• 2012-2018 BMW 640i
• 2013-2019 BMW 640i Gran Coupe
• 2014-2018 BMW 640i xDrive
• 2014-2018 BMW 640i xDrive Gran Coupe
• 2018-2018 BMW 640i xDrive Gran Turismo
• 2012-2018 BMW 650i
• 2013-2019 BMW 650i Gran Coupe
• 2012-2018 BMW 650i xDrive
• 2013-2019 BMW 650i xDrive Gran Coupe
• 2016-2017 BMW 750i
• 2016-2017 BMW 750i xDrive
• 2013-2015 BMW ActiveHybrid 3
• 2012-2013 BMW ActiveHybrid 5
• 2016-2016 BMW ActiveHybrid 5
• 2015-2019 BMW Alpina B6 xDrive Gran Coupe
• 2016-2017 BMW M2
• 2019-2020 BMW M2
• 2014-2016 BMW M235i
• 2015-2016 BMW M235i xDrive
• 2020-2020 BMW M235i xDrive Gran Coupe
• 2017-2019 BMW M240i
• 2021-2021 BMW M240i
• 2017-2023 BMW M240i xDrive
• 1995-1999 BMW M3
• 2001-2006 BMW M3
• 2008-2013 BMW M3
• 2015-2015 BMW M3
• 2015-2015 BMW M4
• 2021-2022 BMW M440i xDrive
• 2012-2015 BMW M6
• 2018-2018 BMW M6
• 2014-2015 BMW M6 Gran Coupe
• 2018-2019 BMW M6 Gran Coupe
• 2004-2013 BMW X3
• 2015-2017 BMW X3
• 2015-2020 BMW X4
• 2010-2015 BMW X6
• 2009-2016 BMW Z4
• 2000-2003 BMW Z8
• 2021-2026 Buick Envision
• 2012-2017 Buick Regal
• 2021-2026 Cadillac CT5
• 2016-2020 Cadillac CT6
• 2008-2017 Cadillac CTS
• 2020-2025 Cadillac XT4
• 2013-2019 Cadillac XTS
• 2010-2024 Chevrolet Camaro
• 2011-2017 Chevrolet Caprice
• 2025-2026 Chevrolet Corvette
• 2015-2015 Chevrolet Equinox
• 2015-2020 Chevrolet Impala
• 2013-2014 Chevrolet Malibu
• 2016-2016 Chevrolet Malibu Limited
• 2014-2015 Chevrolet SS
• 2016-2019 GMC Terrain
• 2017-2021 Honda Civic
• 2005-2014 Honda Odyssey
• 2019-2019 Honda Odyssey
• 2024-2026 Honda Odyssey
• 2019-2026 Honda Passport
• 2009-2025 Honda Pilot
• 2006-2014 Honda Ridgeline
• 2017-2020 Honda Ridgeline
• 2024-2025 Honda Ridgeline
• 2020-2024 Land Rover Defender 110
• 2023-2025 Land Rover Defender 130
• 2021-2024 Land Rover Defender 90
• 1999-2004 Land Rover Discovery
• 2018-2024 Land Rover Discovery
• 2011-2016 Land Rover LR4
• 2003-2016 Land Rover Range Rover
• 2018-2024 Land Rover Range Rover
• 2006-2016 Land Rover Range Rover Sport
• 2018-2024 Land Rover Range Rover Sport
• 2020-2025 Lexus LS500
• 2018-2025 Lexus LS500h
• 2008-2016 Lexus LS600h
• 2025-2026 Lexus TX350
• 2008-2009 Pontiac G8
• 2010-2011 Saab 9-5
• 2021-2021 Tesla S
• 2024-2026 Toyota Grand Highlander
• 2024-2025 Toyota Mirai
