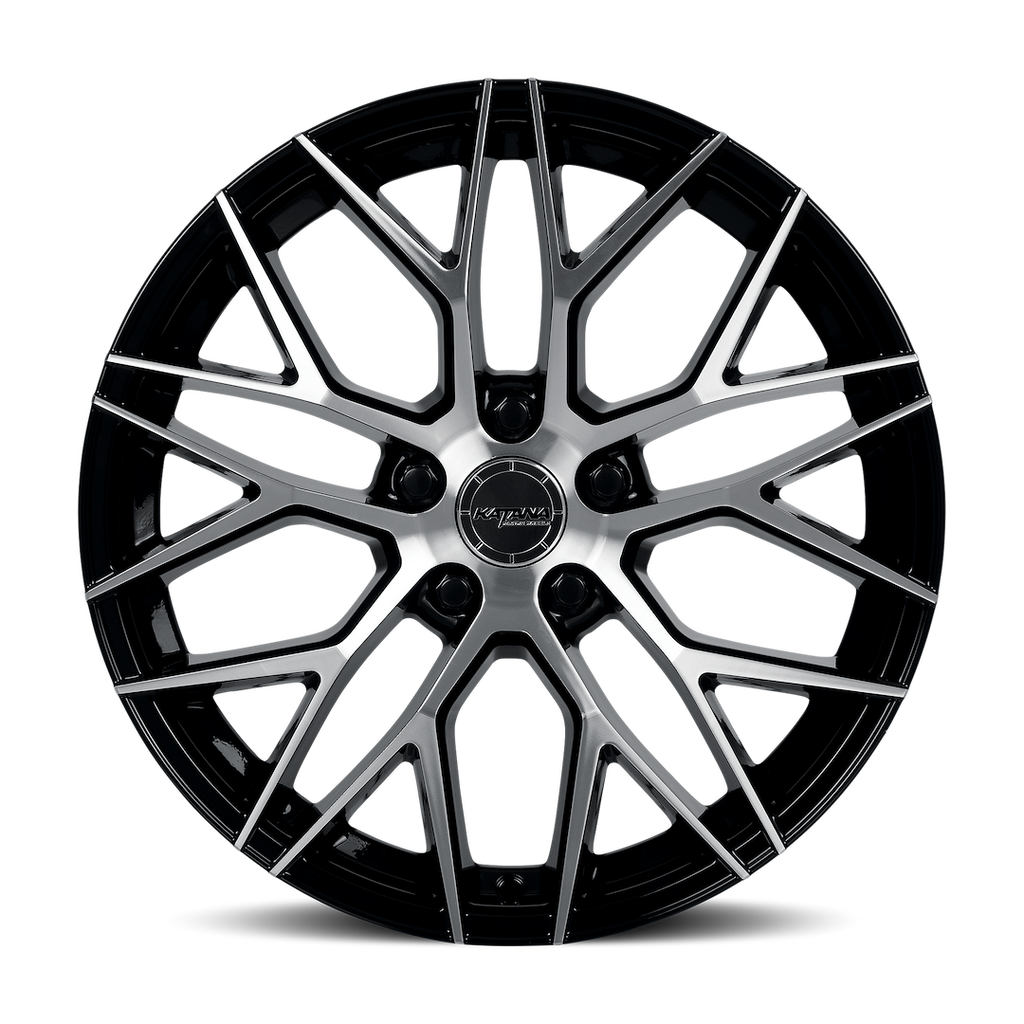

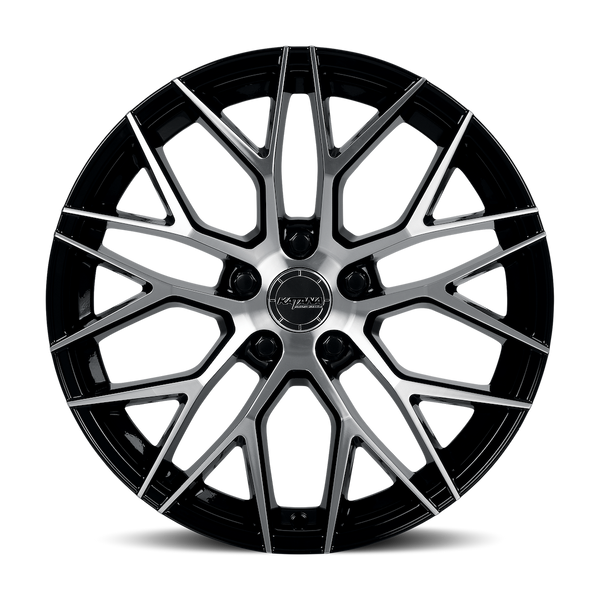

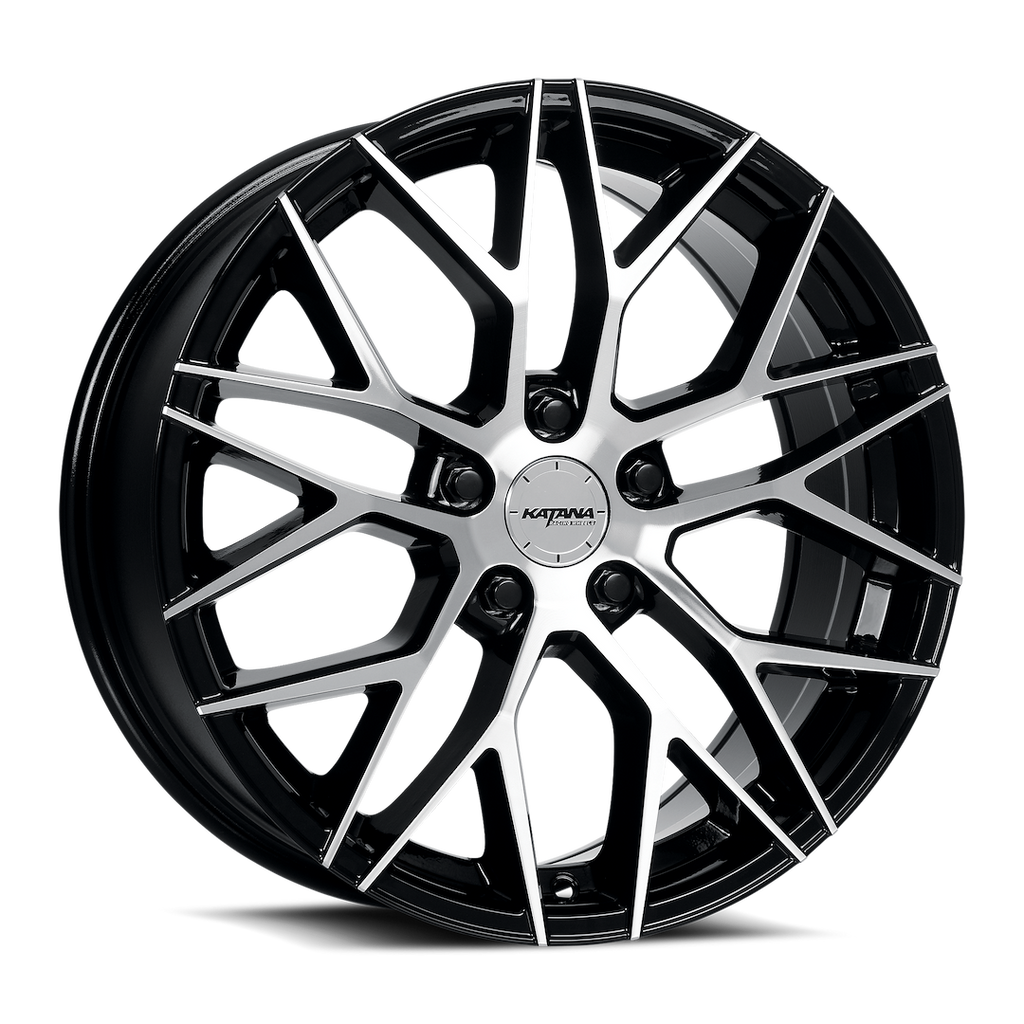

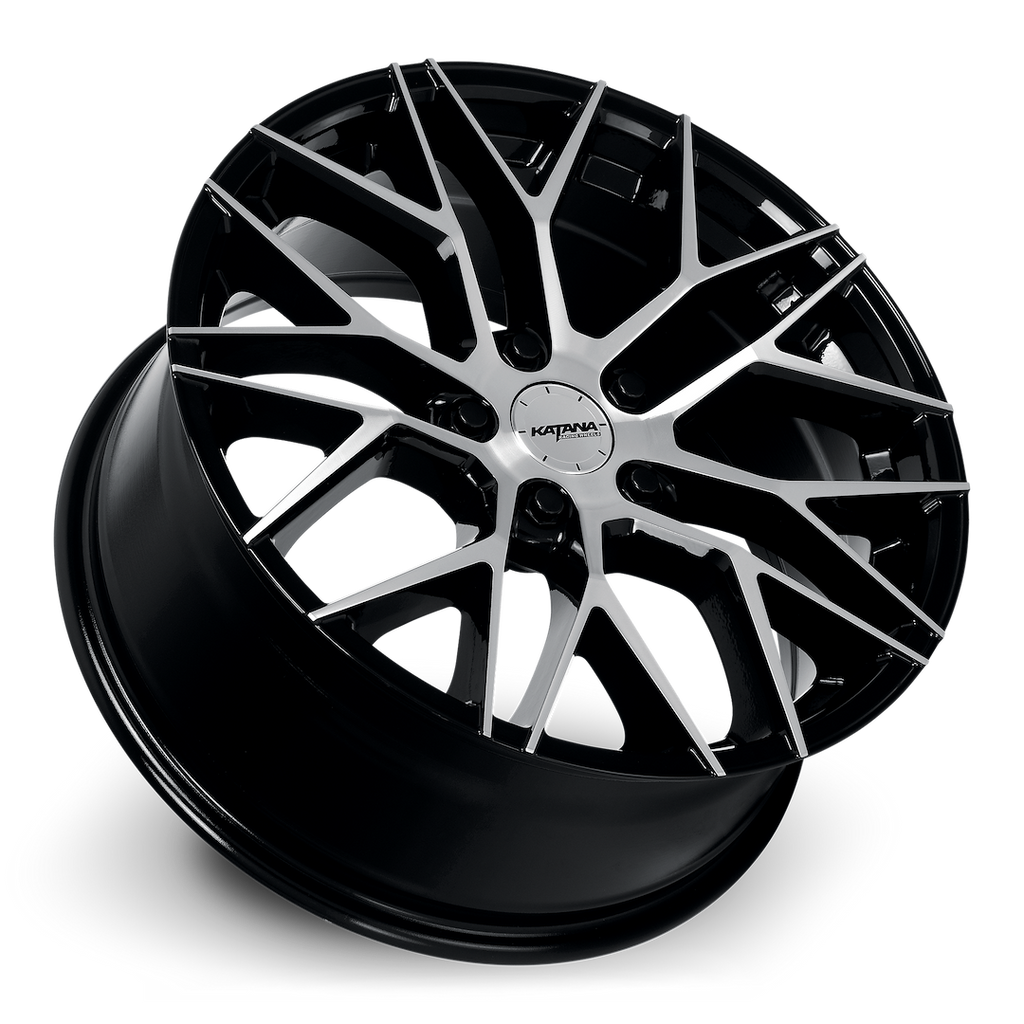

Katana Racing Wheels KR01 (MPN: KR01-177558GBF)

Durable 17 Inch Wheel with Modern Design and High Load Capacity

The Katana Racing Wheels KR01 model features a unique design inspired by the Ninja Sai, showcasing a sharp extruded main spoke that connects to a tapered apex point. This design results in a distinct hexagonal-shaped faceplate, while the outer fins extend beyond the lip of the wheel barrel, enhancing both aesthetics and structural integrity. Constructed from one-piece cast aluminum, this wheel offers a robust load capacity of 1600 pounds, making it suitable for various applications.

With a diameter of 17 inches and a width of 7.5 inches, the KR01 is designed to accommodate a maximum tire diameter of 32.7 inches. The wheel features a 5 x 108 millimeter bolt pattern and a 40 millimeter offset, ensuring compatibility with a wide range of vehicles. Additionally, the 60 degree conical seat lug nut design and 73.10 millimeter center bore provide a secure fit.

The KR01 is finished in a gloss black with a machined face, combining modern streamlined aesthetics with durability. It is also compatible with Tire Pressure Monitoring Systems (TPMS) and includes a Katana logo center cap. The tough application chemically-treated coatings enhance the wheel's resistance to wear and environmental factors, ensuring longevity and performance.

Features

• Bold Symbolic Designs Integrated With High-Quality Manufacturing Processing Enable Un-Countered Durability And Strength In Our Wheels
• Features Modern Streamlined Designs Accompanied By Today's Most Popular Colorways To Fully Enable That Custom-Tailored Look For Your Vehicle
• Compatible With Tire Pressure Monitoring System
• With Katana Logo Center Cap
• Tough-Application-Chemically-Treated Coatings

Specifications

• Manufacturer: Katana
• Manufacturer Part Number: KR01-177558GBF
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 7.5
• Offset: 40
• Backspacing: 5.82
• Finish: Painted Gloss With Machined Face
• Color: Black With Natural Face
• Material: Aluminum
• Bolt Pattern Inch: 5x4.25
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x108
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 73.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Split Spoke
• With Inserts: No
• Load Capacity: 1600
• Size: 17x7.5
• Max Tire Diameter: 32.7
• Center Cap Design: Katana Logo
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5
