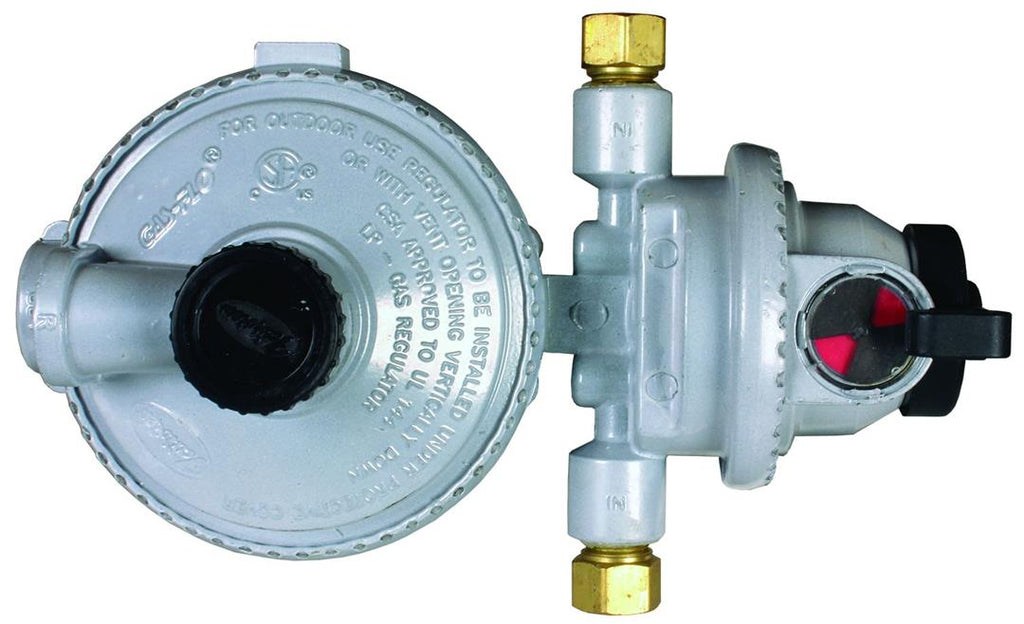

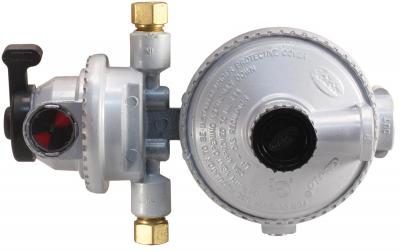

JR Products Propane Regulator (MPN: 07-30395)

Reliable two-stage propane regulator for efficient gas flow management.

The JR Products Propane Regulator is designed to ensure a consistent and reliable flow of LP gas vapor. This two-stage regulator features a 1/4 inch inverted flare inlet and a 3/8 inch FPT outlet, making it suitable for various applications. Constructed from durable zinc die cast, it is built to withstand the rigors of use while providing long-lasting performance.

One of the key features of this regulator is its automatic redirection of gas flow from an empty service cylinder to a reserve cylinder, ensuring uninterrupted operation. The green indicator dome provides a visual cue, changing to red when the service cylinder requires refilling. This functionality enhances safety and convenience for users.

The regulator is UL approved and includes a second stage relief mechanism in compliance with UL 144 standards. It operates at a low pressure with an outlet pressure of 11 inches WC and supports a BTU level of 345,000 BTU. Designed for vertical installation, this propane regulator is an essential component for efficient gas management in various settings.

Features

• Automatically Redirects LP Gas Vapor Flow From An Empty Designated Service Cylinder To A Reserve Cylinder Without Interruption
• Green Indicator Dome Changes To Red When The Service Cylinder Needs To Be Filled
• Made From Zinc Die Cast. Molded Rubber Diaphragms
• UL Approved. 2nd Stage Relief Mechanism Per UL 144

Specifications

• Manufacturer: JR Products
• Manufacturer Part Number: 07-30395
• Pressure: Low Pressure
• RV Approved: No
• Inlet Connection: 1/4 Inch Female Inverted Flare
• Outlet Connection: 3/8 Inch Female Threads
• Installation Type: Vertical
• Outlet Pressure: 11 Inch WC
• Number Of Stages: 2
• BTU Level: 345,000 BTU
• Material: Die-Cast Zinc
• With Shut Off Valve: Yes
• With Hose: No
