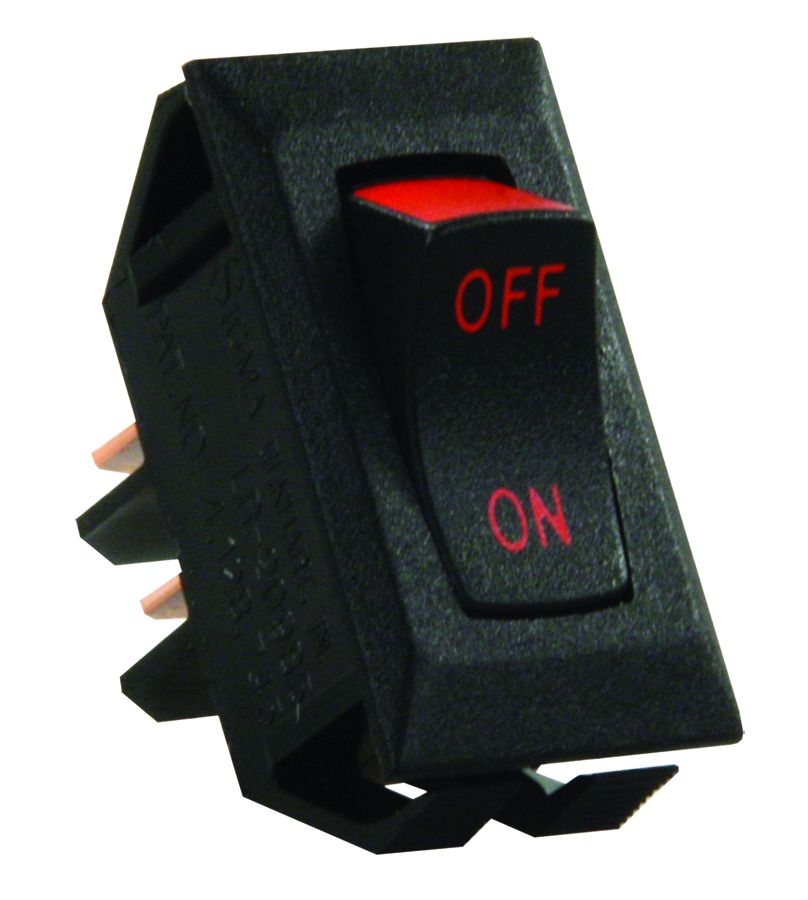

JR Products Multi Purpose Switch (MPN: 13655)

Versatile On-Off Switch for RV and General Use

The JR Products Multi Purpose Switch is designed for a variety of applications, providing reliable on-off functionality in both RVs and other settings. This switch features a single pole single throw design, ensuring straightforward operation with a simple rocker mechanism. Rated for 16 amps at 125 volts AC and 12 amps at 250 volts AC, it is suitable for a range of electrical needs, including 3/4 horsepower at 125 to 250 volts AC and 10 amps at 14 volts DC.

Constructed with durability in mind, this switch is UL, CSA, VDE, and RoHS approved, ensuring compliance with safety standards. The contoured design of the switch panel allows for easy use, making it a practical choice for various environments. With a cutout size of 1.125 inches by 0.550 inches and a switch dimension of 1.120 inches by 0.547 inches, it fits seamlessly into standard installations, providing a clean and functional appearance.

Features

• This Single Switch Is Designed For Functionally With A Simple And Timeless Style
• Made For A Number Of Uses Inside The RV And Out
• This Double Pole Double Throw (DPDT) Rocker Switch Is Very High Quality For A Long Usable Life
• The Switch Panel Also Provides Easy Use With A Contoured Design
• UL/CSA/VDE/RoHS Approved

Specifications

• Manufacturer: JR Products
• Manufacturer Part Number: 13655
• Design: Rocker
• Activation: Constant
• Switch Positions: On-Off
• Operation: Single Pole Single Throw
• Current Rating: 10/ 12/ 16 Amp
• Number Of Switches: 1
• Color: Black
• Illumination: Non-Illuminated
• Marine: No
• Voltage: 14/ 125/ 250 Volt
• Connector Gender: Male
• Terminal Type: Blade
