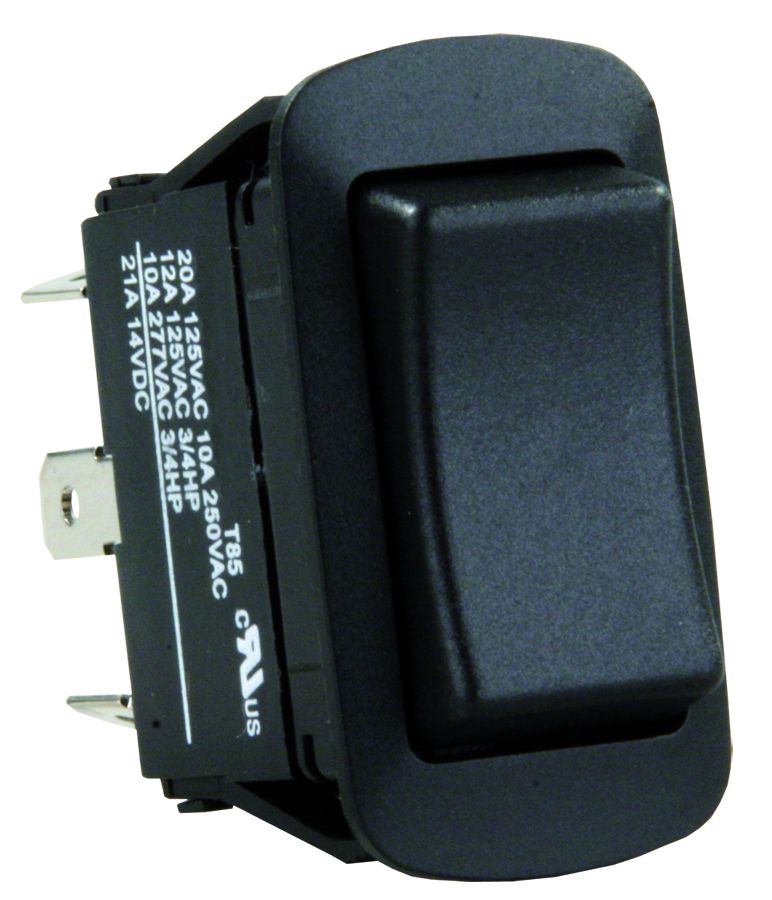

JR Products Multi Purpose Rocker Switch (MPN: 13855)

Durable and versatile switch for various applications in RVs and beyond.

The JR Products Multi Purpose Rocker Switch is engineered for reliable performance in a variety of settings, particularly within the RV industry. This momentary switch features a double pole double throw design, allowing for efficient control with its On-Off-On functionality. Rated for 20 Amps at 125 Volts AC and 10 Amps at 250 Volts AC, this switch is suitable for a range of electrical applications, ensuring versatility and dependability.

Constructed with a water-resistant design, the switch is built to withstand challenging environments, making it ideal for both indoor and outdoor use. The contoured switch panel enhances usability, providing a comfortable grip for operation. With UL, CSA, RoHS, and IP66 approvals, this switch meets high safety and quality standards, ensuring a long usable life.

Measuring 0.835 inches by 1.457 inches for the cutout and 0.984 inches by 0.500 inches for the switch itself, the JR Products Rocker Switch is designed for easy installation. Its non-illuminated feature maintains a sleek appearance while delivering reliable functionality. This switch is a practical choice for anyone looking to enhance their electrical systems with a high-quality component.

Features

• This Single Switch Is Designed For Functionally With A Simple And Timeless Style
• Made For A Number Of Uses Inside The RV And Out
• This Double Pole Double Throw (DPDT) Rocker Switch Is Very High Quality For A Long Usable Life
• The Switch Panel Also Provides Easy Use With A Contoured Design
• UL/CSA/RoHS/IP66 Approved

Specifications

• Manufacturer: JR Products
• Manufacturer Part Number: 13855
• Design: Rocker
• Activation: Momentary
• Switch Positions: On-Off-On
• Operation: Double Pole Double Throw
• Current Rating: 10/ 12/ 20 Amp
• Number Of Switches: 1
• Color: Black
• Illumination: Non-Illuminated
• Marine: No
• Voltage: 125/ 250/ 277 Volt
• Terminal Type: Blade
