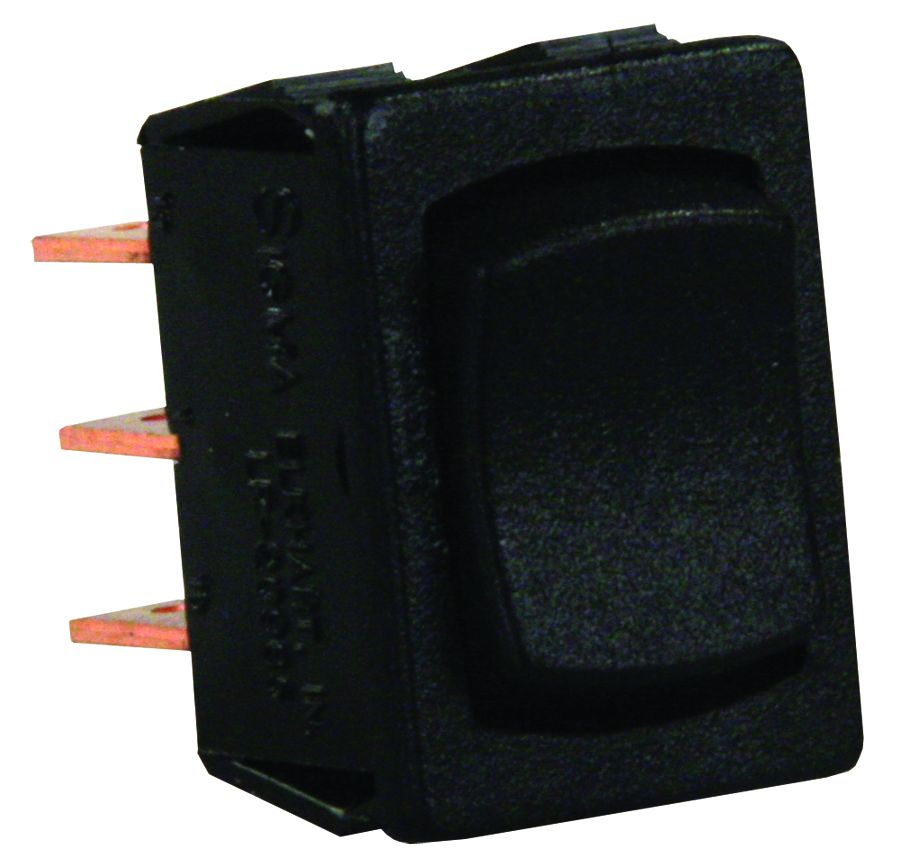

JR Products Multi Purpose Rocker Switch (MPN: 13445)

Versatile On-Off-On Switch for RV and General Use

The JR Products Multi Purpose Rocker Switch is designed for a variety of applications both inside and outside of recreational vehicles. This momentary switch features a double pole double throw (DPDT) configuration, allowing for efficient control of electrical circuits. With a current rating of 13 amps at 125 volts AC and 10 amps at 250 volts AC, it is suitable for a range of electrical needs. The switch is constructed with a simple and timeless style, ensuring functionality without compromising aesthetics.

Measuring 0.756 inches by 0.508 inches for the cutout and 0.745 inches by 0.500 inches for the switch itself, this non-lighted rocker switch is easy to install and operate. The contoured design of the switch panel enhances usability, making it accessible for various users. Additionally, the switch is UL, CSA, and RoHS approved, ensuring compliance with safety and environmental standards. This high-quality switch is built for longevity, making it a reliable choice for your electrical control needs.

Features

• This Single Switch Is Designed For Functionally With A Simple And Timeless Style
• Made For A Number Of Uses Inside The RV And Out
• This Double Pole Double Throw (DPDT) Rocker Switch Is Very High Quality For A Long Usable Life
• The Switch Panel Also Provides Easy Use With A Contoured Design
• UL/CSA/RoHS Approved

Specifications

• Manufacturer: JR Products
• Manufacturer Part Number: 13445
• Design: Rocker
• Activation: Momentary
• Switch Positions: On-Off-On
• Operation: Double Pole Double Throw
• Current Rating: 5/ 10/ 13 Amp
• Number Of Switches: 1
• Color: Black
• Illumination: Non-Illuminated
• Marine: No
• Voltage: 14/ 125/ 250 Volt
• Connector Gender: Male
• Terminal Type: Blade
