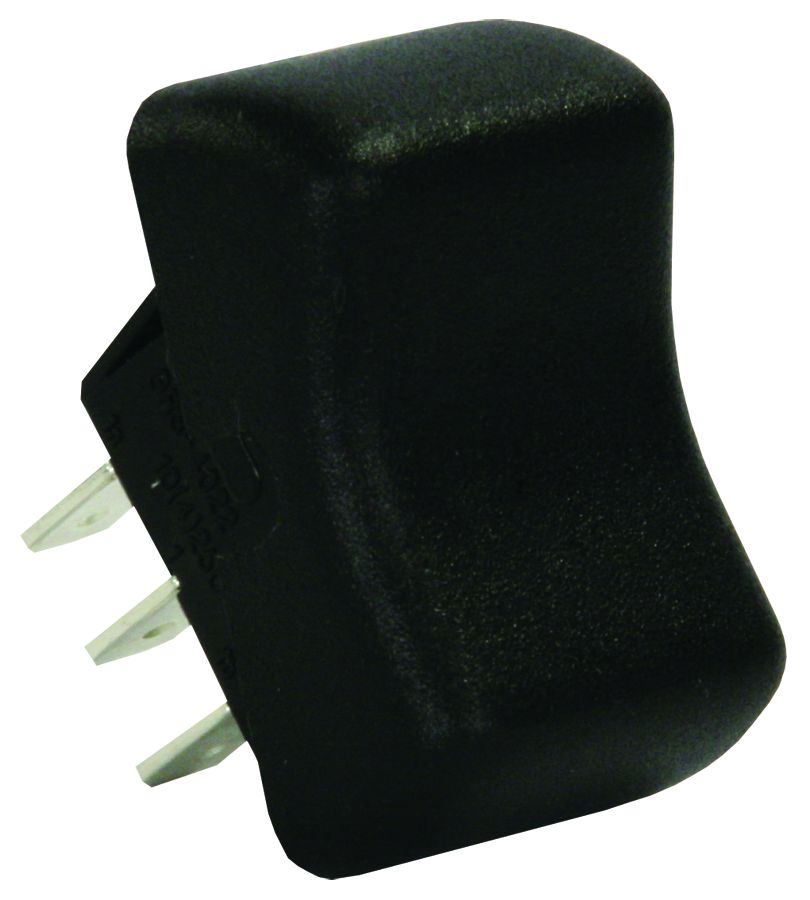

JR Products Multi Purpose Rocker Switch (MPN: 13055)

Versatile On-On Switch for Various Applications in RVs and Beyond

The JR Products Multi Purpose Rocker Switch is engineered for versatility and reliability in various applications, particularly within the RV industry. This double pole double throw switch features a simple and timeless design, making it suitable for a range of uses both inside and outside of recreational vehicles. With a current rating of 16 amps at 125 to 250 volts AC and 10 amps at 14 volts DC, this switch is built to handle demanding electrical tasks while ensuring a long usable life.

Constructed with a contoured design, the switch panel allows for easy operation, enhancing user experience. The non-illuminated rocker switch is UL, CSA, and VDE approved, ensuring compliance with safety standards. Measuring 0.670 inches by 0.500 inches for the cutout and 1.285 inches by 0.830 inches for the switch itself, it fits standard installations seamlessly. This high-quality switch is an essential component for reliable electrical control in various settings.

Features

• This Single Switch Is Designed For Functionally With A Simple And Timeless Style
• Made For A Number Of Uses Inside The RV And Out
• This Double Pole Double Throw (DPDT) Rocker Switch Is Very High Quality For A Long Usable Life
• The Switch Panel Also Provides Easy Use With A Contoured Design
• UL/CSA/VDE Approved

Specifications

• Manufacturer: JR Products
• Manufacturer Part Number: 13055
• Design: Rocker
• Activation: Constant
• Switch Positions: On-On
• Operation: Double Pole Double Throw
• Current Rating: 3/ 10/ 16 Amp
• Number Of Switches: 1
• Color: Black
• Illumination: Non-Illuminated
• Marine: No
• Voltage: 14/ 125/ 250 Volt
• Connector Gender: Male
• Terminal Type: Blade
