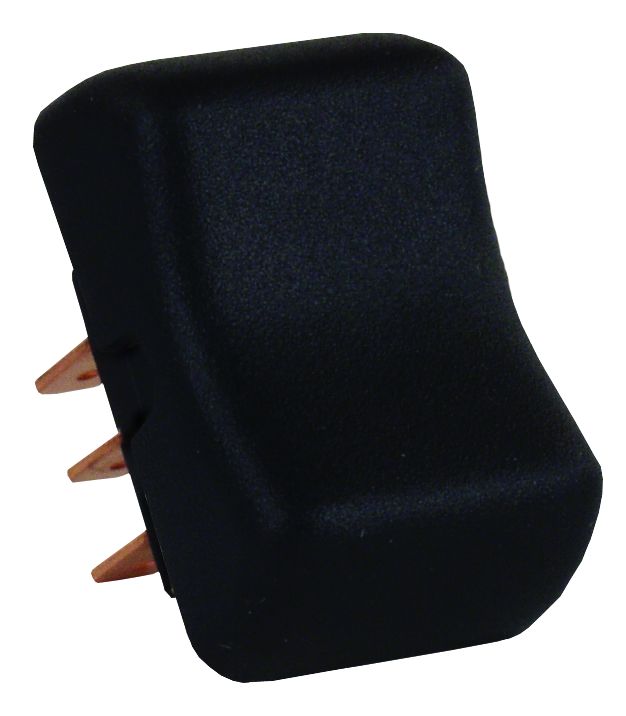

JR Products Multi Purpose Rocker Switch (MPN: 13025)

Versatile On-Off-On Switch for RV and General Use

The JR Products Multi Purpose Rocker Switch is designed for a variety of applications both inside and outside of recreational vehicles. This momentary switch features a double pole double throw (DPDT) configuration, allowing for efficient control of electrical circuits. With a current rating of 8 amps at 125 volts AC and 9 amps at 14 volts DC, it is suitable for a range of electrical tasks. The switch is constructed with a simple and timeless style, ensuring functionality without compromising aesthetics.

Measuring 0.670 inches by 0.500 inches for the cutout and 1.285 inches by 0.830 inches for the switch itself, this non-lighted rocker switch is easy to install and operate. The contoured design of the switch panel enhances usability, making it accessible for various users. Additionally, the switch is UL/CSA approved, ensuring compliance with safety standards for reliable performance in demanding environments.

Features

• This Single Switch Is Designed For Functionally With A Simple And Timeless Style
• Made For A Number Of Uses Inside The RV And Out
• This Double Pole Double Throw (DPDT) Rocker Switch Is Very High Quality For A Long Usable Life
• The Switch Panel Also Provides Easy Use With A Contoured Design
• UL/CSA Approved

Specifications

• Manufacturer: JR Products
• Manufacturer Part Number: 13025
• Design: Rocker
• Activation: Momentary
• Switch Positions: On-Off-On
• Operation: Double Pole Double Throw
• Current Rating: 8/ 9 Amp
• Number Of Switches: 1
• Color: Black
• Illumination: Non-Illuminated
• Marine: No
• Voltage: 14/ 125 Volt
• Connector Gender: Male
• Terminal Type: Blade
