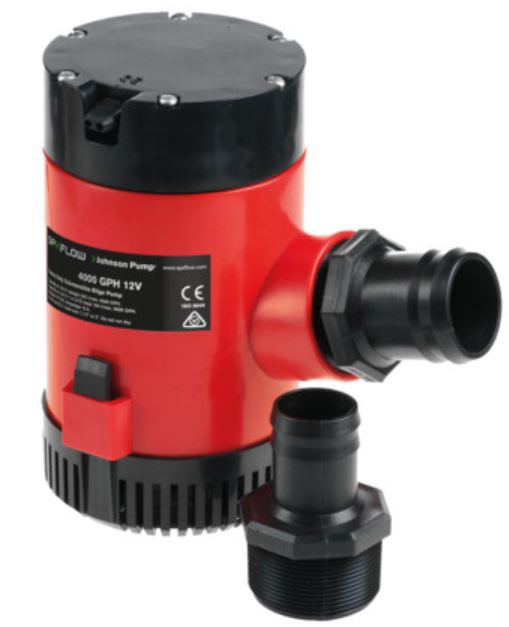

Johnson Pumps Heavy Duty Submersible Bilge Pump (MPN: 40004)

High capacity bilge pump designed for efficient water removal.

The Johnson Pumps Heavy Duty Submersible Bilge Pump is engineered for high performance with a flow rate of 4000 gallons per hour. This pump features a robust motor design and a mechanical shaft seal, ensuring reliable operation in demanding conditions. Constructed from high impact ABS plastic and stainless steel, it is built to withstand the rigors of marine environments. The pump includes a universal base plate and offers a choice of two different port sizes, facilitating straightforward installation.

Designed for automatic operation, the pump is pre-wired with either a non-clogging electronic switch or an electro-magnetic float switch. The liquid cooled, 12-pole motor is equipped with double ball bearings, contributing to an extended service life. The impeller is meticulously designed and tested to optimize head and flow, making this pump a dependable choice for effective water management in bilge applications.

Features

• Pre-Wired With Either The Non-Clogging Electronic Switch Ultima Switch Or The Electro-Magnetic Float Switch For Automatic Operation
• Liquid Cooled, 12-Pole Motor With Double Ball Bearings For Extended Service Life
• 2200 Gallons Per Hour Motor Is Sealed Off By A Mechanical Seal Design, While The 1600 Gallons Per Hour Model Has Lipseal
• Impeller Is Carefully Designed And Tested To Maximize Head And Flow
• Universal Base Plate And Choice Of Two Different Ports Makes For A Simple Installation

Specifications

• Manufacturer: Johnson Pumps
• Manufacturer Part Number: 40004
• Type: Submersible
• Voltage Rating: 12 Volt
• Flow Rate: 4000 Gallon Per Hour
• Port Type: 1-1/2 Inch And 2 Inch Hose
• Length: Not Applicable
• Width: Not Applicable
• Height: 8-1/2 Inch

Technical Documents

• johnson-pump-marine-52238jp-r01-ib-106-r07-hdbilgepump-5.pdf
• johnson-pump-marine-heavydutybilgepumps-1600-4000-flyer.pdf
