High performance bilge pump with 2200 GPH flow rate and durable design.

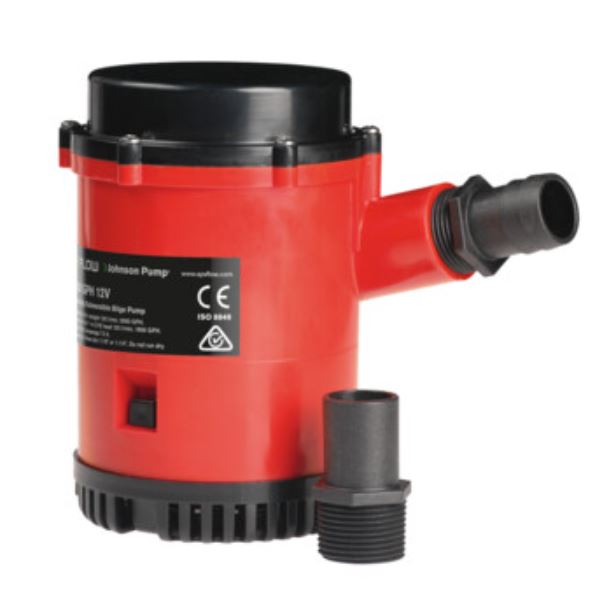

The Johnson Pumps Heavy Duty Submersible Bilge Pump is engineered for efficient water removal with a flow rate of 2200 gallons per hour. This pump features a robust mechanical seal design that enhances reliability and longevity, making it suitable for various marine applications. The pump is constructed with thermoplastic materials and a stainless steel shaft, ensuring durability in harsh environments.
Designed for ease of installation, the pump includes a universal base plate and offers two different port sizes of 1-1/8 inch and 1-1/4 inch. The impeller is meticulously designed to optimize head and flow, providing effective water management. Additionally, the pump is pre-wired with either a non-clogging electronic switch or an electro-magnetic float switch for automatic operation, enhancing its usability.
With a liquid-cooled, 12-pole motor featuring double ball bearings, this bilge pump is built for extended service life. The removable check valve further adds to its functionality, preventing backflow and ensuring efficient operation. This bilge pump is a reliable solution for maintaining dry conditions in boats and other watercraft.
Features
- Pre-Wired With Either The Non-Clogging Electronic Switch Ultima Switch Or The Electro-Magnetic Float Switch For Automatic Operation
- Liquid Cooled, 12-Pole Motor With Double Ball Bearings For Extended Service Life
- 2200 Gallons Per Hour Motor Is Sealed Off By A Mechanical Seal Design, While The 1600 Gallons Per Hour Model Has Lipseal
- Impeller Is Carefully Designed And Tested To Maximize Head And Flow
- Universal Base Plate And Choice Of Two Different Ports Makes For A Simple Installation
Specifications
- Manufacturer: Johnson Pumps
- Manufacturer Part Number: 22004
- Type: Submersible
- Voltage Rating: 12 Volt
- Flow Rate: 2200 Gallon Per Hour
- Port Type: 1-1/8 Inch And 1-1/4 Inch Hose
- Length: Not Applicable
- Width: Not Applicable
- Height: 7 Inch
