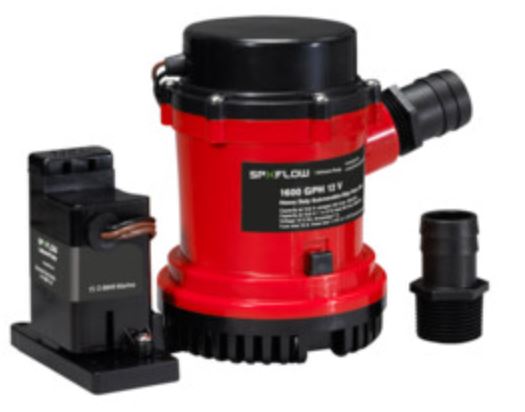

Johnson Pumps Automatic Submersible Bilge Pump (MPN: 01604-00)

  • Sale
  • Regular price $202.51

Accepted Credit Cards

Efficiently removes water with high flow rate and durable design.

The Johnson Pumps Automatic Submersible Bilge Pump is engineered for reliable water removal in various applications. With a flow rate of 1600 gallons per hour, this pump features a robust thermoplastic construction and a stainless steel shaft, ensuring durability and longevity. The pump operates on a 12-volt system and is designed with a lip seal for effective sealing against water ingress.

This model includes a pre-wired electronic switch for automatic operation, enhancing convenience during use. The liquid-cooled, 12-pole motor is equipped with double ball bearings, which contribute to an extended service life. The impeller is meticulously designed to optimize head and flow, making it a dependable choice for efficient water management.

Installation is straightforward, thanks to the universal base plate and the option of two different port sizes (1-1/8 inch and 1-1/4 inch). A removable check valve is also included, further simplifying the setup process. This bilge pump is suitable for various marine and industrial applications, providing a reliable solution for water removal.

Features

  • Pre-Wired With Either The Non-Clogging Electronic Switch Ultima Switch Or The Electro-Magnetic Float Switch For Automatic Operation
  • Liquid Cooled, 12-Pole Motor With Double Ball Bearings For Extended Service Life
  • 2200 Gallons Per Hour Motor Is Sealed Off By A Mechanical Seal Design, While The 1600 Gallons Per Hour Model Has Lipseal
  • Impeller Is Carefully Designed And Tested To Maximize Head And Flow
  • Universal Base Plate And Choice Of Two Different Ports Makes For A Simple Installation

Specifications

  • Manufacturer: Johnson Pumps
  • Manufacturer Part Number: 01604-00
  • Type: Automatic Submersible
  • Voltage Rating: 12 Volt
  • Flow Rate: 1600 Gallon Per Hour
  • Port Type: 1-1/8 Inch And 1-1/4 Inch Hose
  • Length: Not Applicable
  • Width: Not Applicable
  • Height: 5.86 Inch
