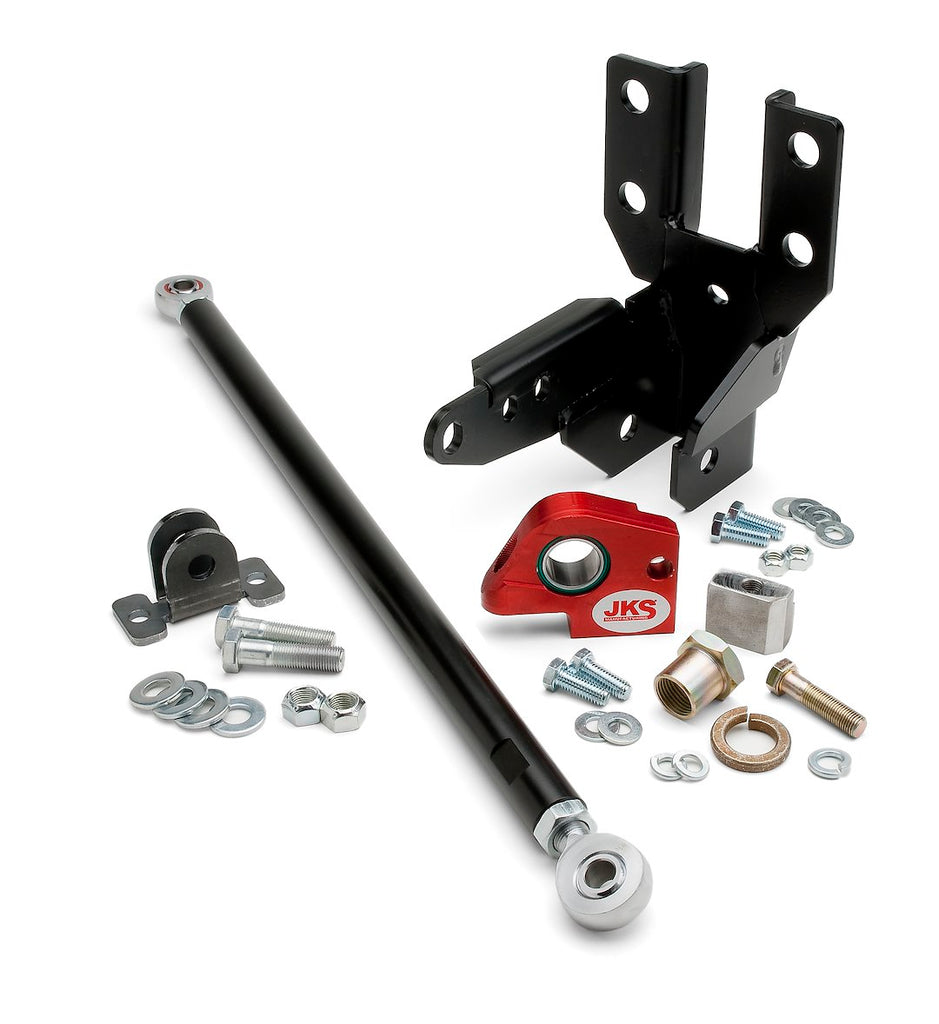

JKS Manufacturing Track Bar Brace (MPN: JKSOGS166)

Enhance steering stability and support for Wrangler JK models.

The JKS Manufacturing Track Bar Brace is designed to reinforce the front track bar and steering box on Wrangler JK models, addressing the vulnerabilities associated with large diameter tires and hydraulic-assist steering. This heavy-duty bracket strengthens the factory track bar mount, which is prone to failure under extreme forces, ensuring that the chassis can withstand the demands of off-road driving.

In addition to supporting the track bar mount, the brace features a heavy-duty bearing fixture that stabilizes the steering box output shaft, preventing premature wear and failure. The external bearing supports the sector shaft below the pitman arm, providing double-shear strength for enhanced durability.

The tubular support strut connects both sides of the chassis, significantly improving steering responsiveness and overall handling. This upgrade not only increases load capacity but also enhances driver confidence by delivering greater control during operation. The powder-coated black finish adds an extra layer of protection against the elements, ensuring longevity and performance.

Features

• Heavy-Duty Bracket Strengthens And Supports Weak OE Trackbar Mount On Chassis
• Increases Load Capacity To Accommodate Large Tires And Hydraulic Assist Steering
• Heavy-Duty Bearing Fixture Stabilizes And Supports Steering Box Output Shaft To Prevent Failure
• External Bearing Supports Sector Shaft Below Pitman Arm For Double-Shear Strength
• Heavy-Duty Tubular Support Strut Connects Left And Right Side Of Chassis Together
• Dramatically Improves Steering Responsiveness For Greater Control, Handling And Driver Confidence

Specifications

• Manufacturer: JKS Manufacturing
• Manufacturer Part Number: JKSOGS166
• Finish: Powder Coated
• Color: Black
• Material: Steel

Compatibility / Fit

• 2007-2018 Jeep Wrangler JK

Technical Documents

• JKSOGS166.pdf
