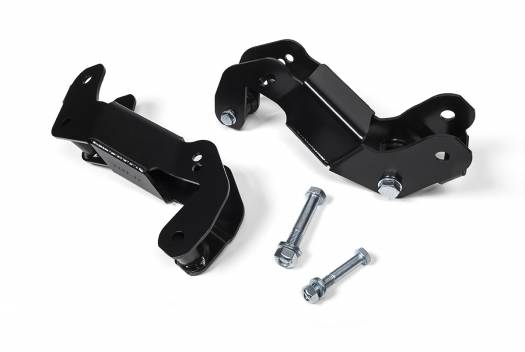

JKS Control Arm Relocation Bracket (MPN: JKS6201)

Enhance suspension performance with precise control arm positioning.

The JKS Control Arm Relocation Bracket is designed to optimize the geometry of your vehicle's suspension system when lifting between 2 to 4.5 inches. By relocating the upper and lower control arms, this bracket reduces control arm angles, allowing the front suspension to navigate bumps and grooves more effectively. The precision-engineered mounting holes ensure correct caster settings, enhancing stability and handling across various lift heights.

Constructed from heavy-duty 7GA steel, the fully boxed and welded design of the brackets provides superior strength compared to traditional bolt-together options. This robust construction not only improves durability but also enhances the performance of the front drive shaft CV joint by optimizing operating angles throughout the full wheel travel. The installation process is straightforward, utilizing factory hardware and outlined mounting locations for ease of use.

Additionally, the JKS Control Arm Relocation Bracket is compatible with JKS adjustable control arms, making it a versatile choice for both on-road and off-road applications. The dual hole positions for the upper control arm mount allow for proper caster settings, ensuring that your vehicle maintains optimal performance regardless of the terrain.

Features

• Reduced Control Arm Angles Allow The Front Suspension To More Naturally Roll Over Bumps And Grooves In The Road
• Corrects Caster For 2 Inch To 4-1/2 Inch Of Lift. The New Upper And Lower Control Arm Mounting Holes Are Precisely Positioned To Provide The Correct Caster At The Listed Lift Heights
• The Upper Control Arm Mount Provides Two Hole Positions For Proper Caster Settings Through The Full Lift Height Range
• Improves The Front Drive Shaft CV Joint Operating Angles Through Full Wheel Travel. The New Geometry Increases Clearance Between The Front Driveshaft And Exhaust At Full Suspension Droop
• Brackets Are Made From Heavy-Duty 7GA Steel And Are Fully Boxed And Welded For Superior Strength When Compared To Bolt Together 2-Piece Designs
• The Heavy Boxed Construction, Fully Gusseted Lower Mount And Welded Crush Sleeves Give You Extra Confidence Both On And Off Road
• The Control Arm Correction Brackets Can Be Used With JKS Adjustable Control Arms For The Ultimate On And Off Road Performance
• The Proper Mounting Locations For The Installed Lift Heights Are Outlined In The Installation Instructions
• The Brackets Install Inside The Factory Upper And Lower Control Arm Mounts With The Factory Hardware

Specifications

• Manufacturer: JKS Manufacturing
• Manufacturer Part Number: JKS6201
• Color: Black
• Material: Steel
• Estimated Install Time (Hours): 2

Compatibility / Fit

• 2018-2025 Jeep Wrangler JL
