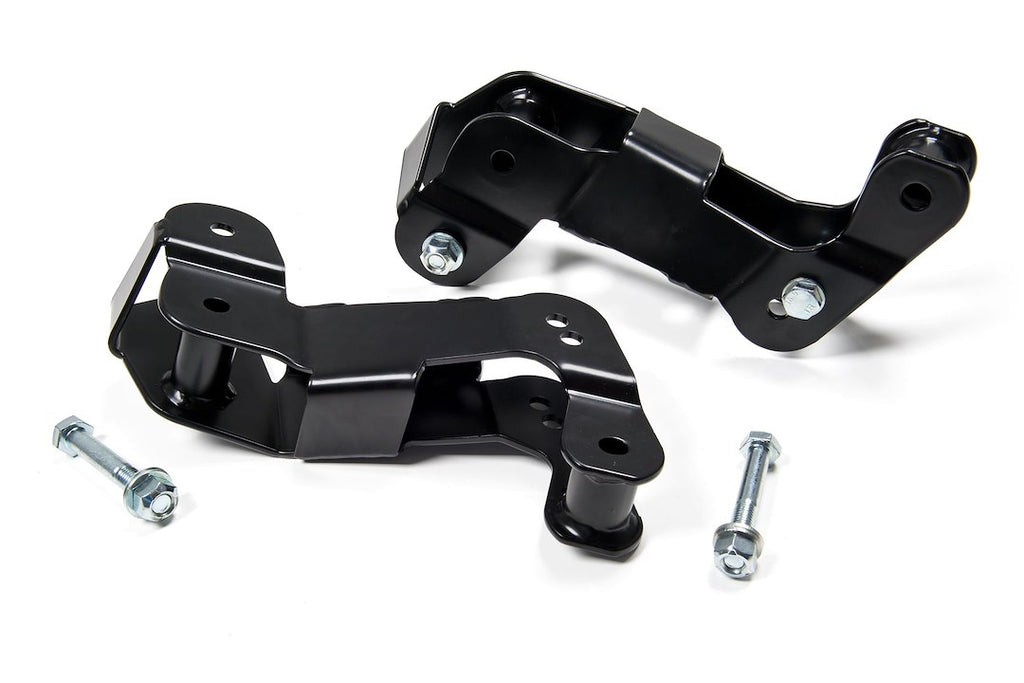

JKS Control Arm Relocation Bracket (MPN: JKS6200)

Enhance Jeep Wrangler JK handling with precision-engineered brackets.

The JKS Control Arm Relocation Bracket is designed to improve the handling and performance of lifted Jeep Wrangler JK models. Specifically engineered for use with lift kits ranging from 2 inches to 4-1/2 inches, these brackets adjust the control arm operating angles to closely match or enhance factory specifications. This adjustment helps to correct caster and geometry issues that arise from increased ride height, ensuring optimal suspension performance during both on-road and off-road driving.

Constructed from heavy-duty 7GA steel, the fully boxed and welded design of the brackets provides superior strength compared to traditional bolt-together designs. The brackets feature two mounting hole positions that allow for precise caster settings tailored to the specific lift height. This ensures that the front suspension can effectively roll over bumps and grooves, improving overall ride quality and stability.

Installation is straightforward, utilizing factory hardware to mount the brackets inside the existing upper and lower control arm mounts. The design also enhances the operating angles of the front drive shaft CV joint throughout the full range of wheel travel, increasing clearance between the drive shaft and exhaust during suspension droop. For those seeking ultimate performance, these brackets can be paired with JKS adjustable control arms.

Features

• Reduced Control Arm Angles Allow The Front Suspension To More Naturally Roll Over Bumps And Grooves In The Road
• Corrects Caster For 2 Inch To 4-1/2 Inch Of Lift And The New Upper And Lower Control Arm Mounting Holes Are Precisely Positioned To Provide The Correct Caster At The Listed Lift Heights
• The Upper Control Arm Mount Provides Two Hole Positions For Proper Caster Settings Through The Full Lift Height Range
• The Proper Mounting Locations For The Installed Lift Heights Are Outlined In The Installation Instructions

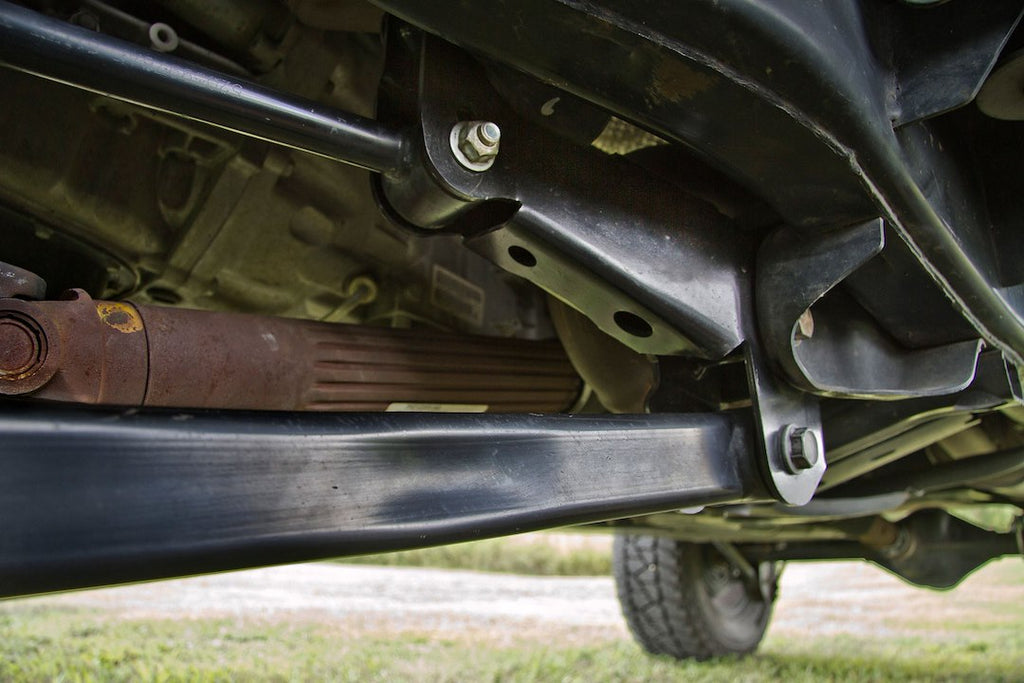

• Improves The Front Drive Shaft CV Joint Operating Angles Through Full Wheel Travel And The New Geometry Increases Clearance Between The Front Driveshaft And Exhaust At Full Suspension Droop
• Brackets Are Made From Heavy-Duty 7GA Steel And Are Fully Boxed And Welded For Superior Strength When Compared To Bolt Together 2-Piece Designs
• The Heavy Boxed Construction, Fully Gusseted Lower Mount And Welded Crush Sleeves Give You Extra Confidence Both On And Off Road
• The Control Arm Correction Brackets Can Be Used With JKS Adjustable Control Arms For The Ultimate On And Off Road Performance

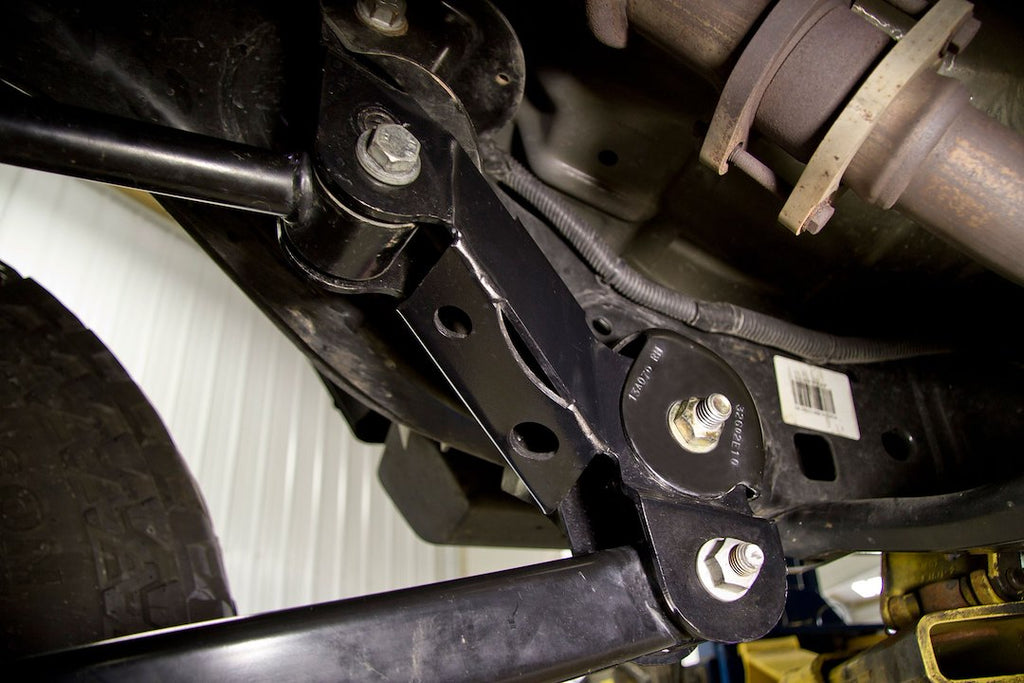

• The Brackets Install Inside The Factory Upper And Lower Control Arm Mounts With The Factory Hardware

Specifications

• Manufacturer: JKS Manufacturing
• Manufacturer Part Number: JKS6200
• Compatibility: Relocate The Upper And Lower Control Arms
• Color: Black
• Material: Steel
• Estimated Install Time (Hours): 2
• Finish: Powder Coated

Compatibility / Fit

• 2007-2018 Jeep Wrangler JK

Technical Documents

• JKS6200.pdf
