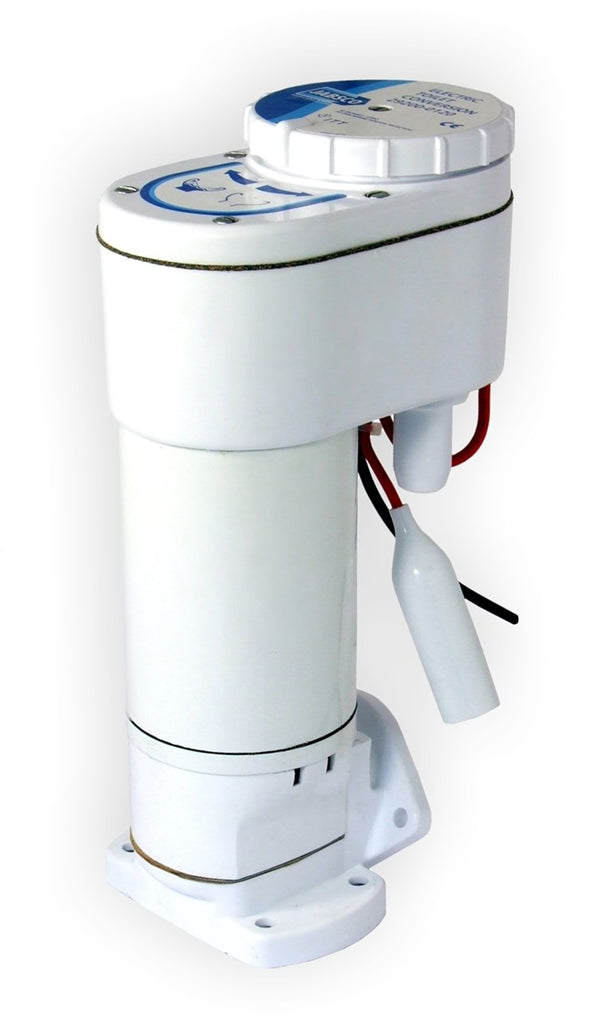

Jabsco Toilet Pump (MPN: 29200-0120)

Reliable self-priming electric flush pump for marine applications.

The Jabsco Toilet Pump is designed for efficient waste management in marine environments. This self-priming electric flush pump operates on a 12 Volt DC power supply and is compatible with a 3/4 inch barb inlet hose. Its compact dimensions of 87 millimeters in width, 150 millimeters in depth, and 270 millimeters in height make it suitable for various installation spaces, whether above or below the waterline.

This pump features a simple rotary control that allows users to select between 'flush and discharge' or 'discharge only' modes, enhancing operational flexibility. It is designed to work with existing discharge elbows and outlet hoses from manual pumps, making installation straightforward for both left and right-handed configurations. The unit operates with a characteristic noise level, providing audible feedback during operation.

In case of power supply failure, the manual pump can be easily refitted, ensuring continued functionality. The Jabsco Toilet Pump is an essential component for maintaining hygiene and comfort on board, making it a reliable choice for boat owners.

Features

• Connections: For 19 Millimeter Bore Inlet Hose
• Uses Existing Discharge Elbow And Outlet Hose On Manual Pump
• For Standard And Regular Bowl, Left And Right-Handed Installations
• Simple Rotary Control For ‘flush And Discharge’ Or ‘discharge Only’
• Self-Priming Pumps Permit Installation Above Or Below Waterline
• Noise: This Unit Runs With A Characteristic ‘buzz’
• Manual Pump Easy To Refit If Power Supply Fails

Specifications

• Manufacturer: Jabsco
• Manufacturer Part Number: 29200-0120
• Type: Flush
• Operation Type: Electric
• Voltage: 12 Volt
• Port Type: 3/4 Inch Hose Barb Inlet
• Dimensions: 3.42 Inch Width x 5.9 Inch Depth x 10.62 Inch Height

Technical Documents

• 29200-electric-conversion-kit-.pdf
