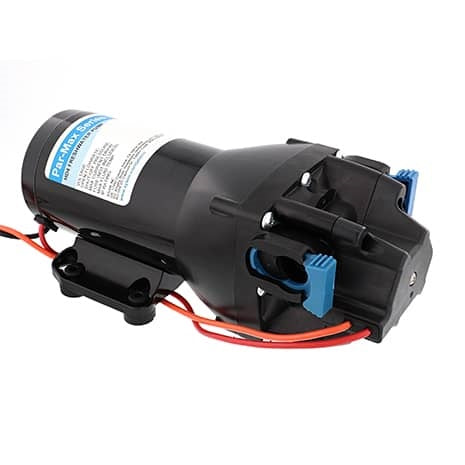

Jabsco Fresh Water Pump (MPN: Q401J-118S-3A)

Durable and high-performing pump for marine applications

The Jabsco Fresh Water Pump is engineered for durability and high performance, making it suitable for various marine applications. This 12 Volt DC pump features a self-priming design that ensures efficient operation, delivering a flow rate of 4 gallons per minute while maintaining a pressure rating of 60 PSI. Its compact dimensions of 9.4 inches in length, 4.1 inches in width, and 3.8 inches in height allow for easy installation in tight spaces.

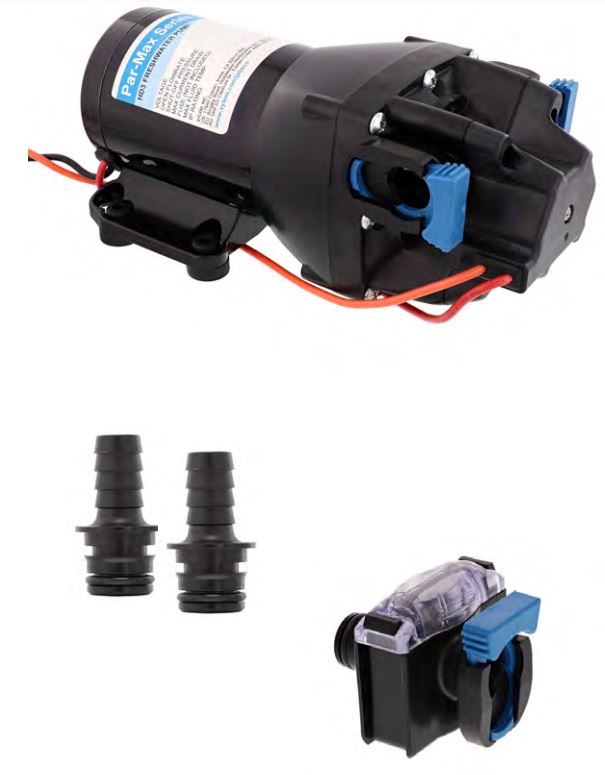

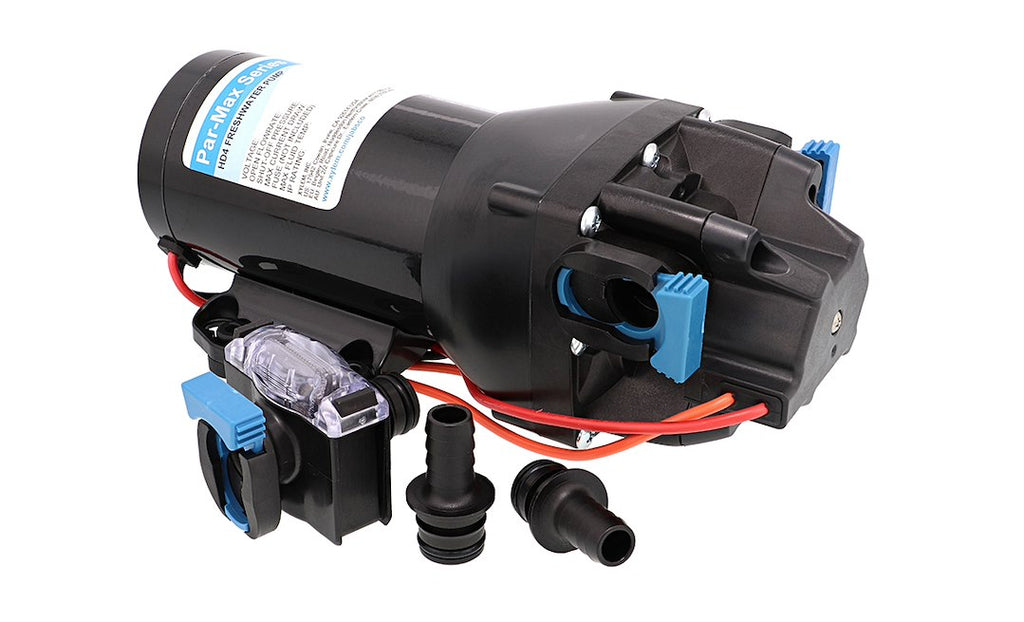

Equipped with a heavy-duty coated motor and an integrated sealed pressure switch, this pump operates quietly and efficiently. The thermal motor protection feature ensures that the pump can run dry without sustaining damage, enhancing its reliability and longevity. The included 2 inch x 1/2 inch straight hose barb and inline quick connect strainer facilitate straightforward connections, making setup and maintenance hassle-free.

Designed to provide years of satisfactory service, the Jabsco Fresh Water Pump is a robust solution for your fresh water needs on board. Its combination of advanced features and solid construction makes it a dependable choice for marine enthusiasts.

Features

• Heavy Duty, Coated Motor
• Integrated Sealed Pressure Switch
• Efficient, Quiet Operation
• Self-priming
• Runs Dry Without Damage

Specifications

• Manufacturer: Jabsco
• Manufacturer Part Number: Q401J-118S-3A
• Pump Operation: 12 Volt DC
• Flow Rate: 4 Gallon Per Minute
• Pressure Rating (PSI): 60 Pounds Per Square Inch
• Type: Self-Priming
• Inlet Port Type: 1/2 Inch Hose Barb
• Outlet Port Type: 1/2 Inch Hose Barb
• Length (IN): 9-7/16 Inch
• Width (IN): 4-1/8 Inch
• Height (IN): 3-13/16 Inch
• Material: Plastic
• With Thermal Overload Protection: Yes
• With Pressure Switch: Yes

Technical Documents

• jabsco-par-max-hotshot-iom-hd-models.pdf
• q401j-118s-3a-parmax-hd4-datasheet.pdf
• par-max-series-technical-drawing.pdf
• par-max-series_brochure_en.pdf
