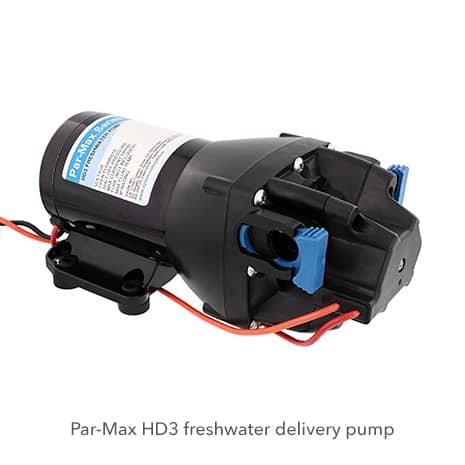

Jabsco Fresh Water Pump (MPN: Q301J-115S-3A)

Reliable self-priming pump for efficient freshwater systems on boats.

The Jabsco Fresh Water Pump is designed for marine applications, providing a dependable solution for freshwater systems. Operating on 12 Volt DC, this self-priming pump delivers a flow rate of 3 gallons per minute and features a pressure shut-off at 40 PSI, ensuring consistent water supply. Its compact dimensions of 8.62 inches in length, 4.1 inches in width, and 3.82 inches in height make it suitable for various installations on vessels.

Constructed with a glass-filled polypropylene upper housing and a cast aluminum lower housing, the pump is built for durability and longevity. It includes thermal motor protection and is capable of running dry without sustaining damage, enhancing its reliability in demanding marine environments. The integrated sealed pressure switch allows for efficient and quiet operation, making it a practical choice for boat owners.

The Jabsco Fresh Water Pump is equipped with two 1/2 inch straight hose barbs and an inline quick connect strainer, facilitating easy installation and maintenance. This pump is part of the Par-Max Series, known for its heavy-duty performance and versatility, catering to vessels with multiple outlets.

Features

• Heavy Duty, Coated Motor
• Integrated Sealed Pressure Switch
• Efficient, Quiet Operation
• Self-Priming
• Runs Dry Without Damage

Specifications

• Manufacturer: Jabsco
• Manufacturer Part Number: Q301J-115S-3A
• Pump Operation: 12 Volt DC
• Flow Rate: 3 Gallon Per Minute
• Pressure Rating (PSI): 40 Pounds Per Square Inch
• Type: Self-Priming
• Inlet Port Type: 1/2 Inch Hose Barb
• Outlet Port Type: 1/2 Inch Hose Barb
• Length (IN): 8-5/8 Inch
• Width (IN): 4-1/8 Inch
• Height (IN): 3-13/16 Inch
• Material: EPDM Valve, Santoprene Diaphragm, Polypropylene Housing
• With Thermal Overload Protection: Yes
• With Pressure Switch: Yes
• Marine: Yes

Technical Documents

• jabsco-par-max--hotshot-iom-hd-models.pdf
• Q301J-115S-3A_BUL.pdf
