High performance diaphragm pump for efficient washdown applications.

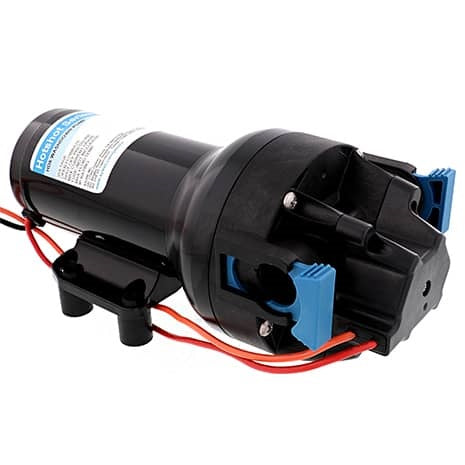

The Jabsco Boat Washdown Pump is designed for high efficiency and reliability in marine environments. This heavy-duty diaphragm pump features a unique 5 chamber co-molded TPV diaphragm that allows for dry running, making it suitable for various washdown tasks. With a flow rate of 6 gallons per minute, it provides powerful performance while maintaining a compact size with overall dimensions of 10.2 inches in length, 5.1 inches in width, and 4.7 inches in height.
Operating on a 12 Volt DC power supply, this pump is equipped with thermal motor protection to ensure longevity and safe operation. The water-resistant design, rated IPX6, allows for use with seawater, making it ideal for marine applications. The self-priming capability of up to 2.1 meters or 7 feet vertical lift enhances its usability in various setups.

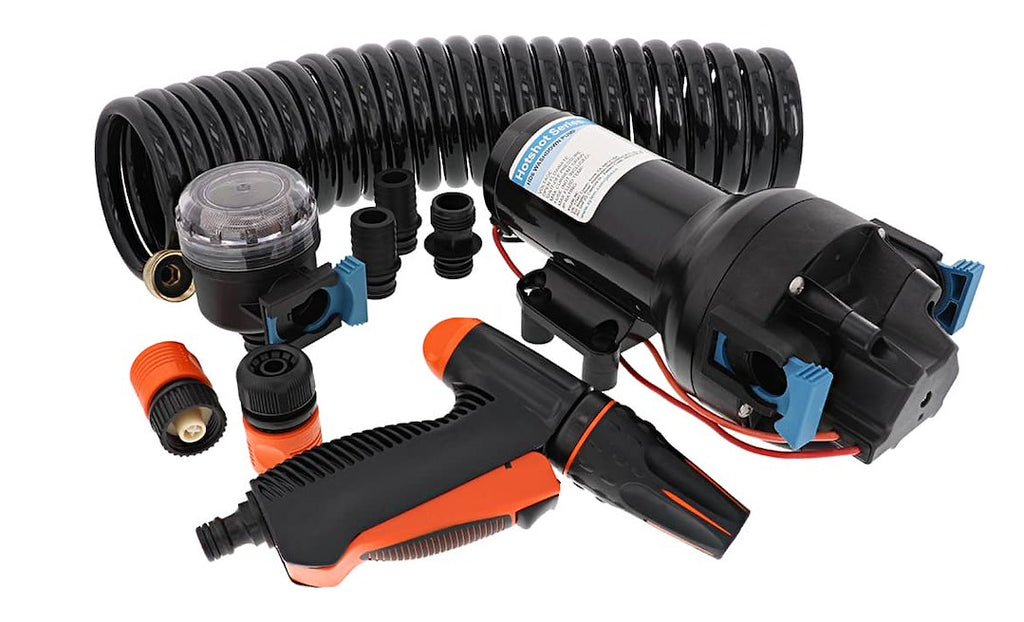

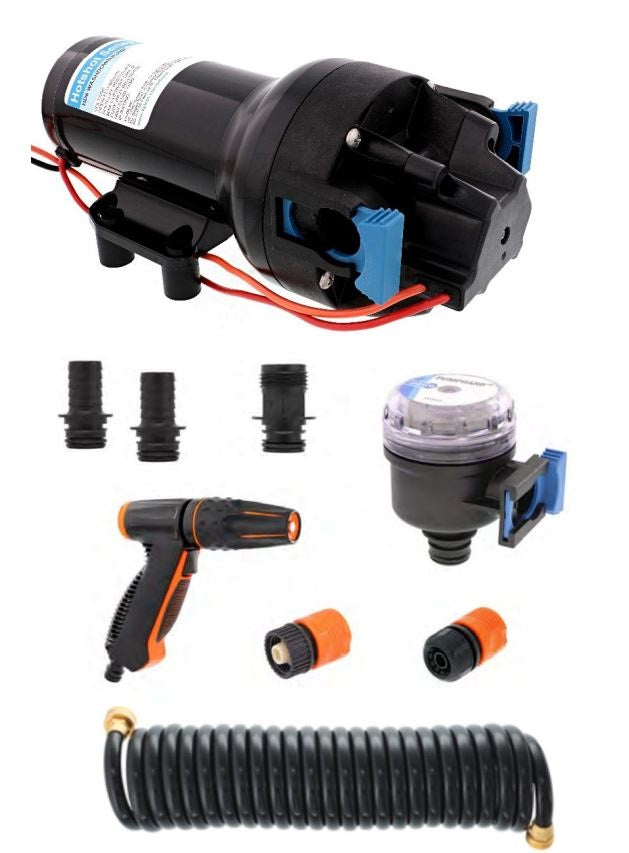

Included with the pump are essential accessories such as a 90-degree quick connect strainer, a deluxe trigger nozzle, and multiple adapters for easy connection to hoses. The robust construction, featuring a coated motor and cast aluminum lower housing, ensures durability even under high pressure, making the Jabsco Boat Washdown Pump a reliable choice for boat owners.
Features
- Connections: For 19 Millimeter Bore Hose And 3/4 Inch US GHT
- New 5 Chamber Design, Heavy Duty, Coated Motor
- Diaphragm Design Allows Dry Running
- High Flow And High Pressure
- Water Resistant IPX6 Suitable For Use With Seawater
- Self-Priming Up To 2.1 Meter Or 7 Feet Vertical Lift
- Heavy Duty Models Feature Motors And Cast Aluminum Lower Housings For Longer Life Even At High Pressures
Specifications
- Manufacturer: Jabsco
- Manufacturer Part Number: P601J-219N-4A
- Type: Diaphragm
- Flow Rate: 6 Gallon Per Minute
- Inlet Port Type: 3/4 Inch Hose Barb
- Outlet Port Type: 3/4 Inch GHT
- Length: 10.2 Inch
- Width: 5.1 Inch
- Height: 4.7 Inch
- Voltage Rating: 12 Volt
- With Thermal Overload Protection: Yes
- With Pistol Grip Plastic Spray Nozzle: Yes
- With Swivel Straight Adapter: Yes
