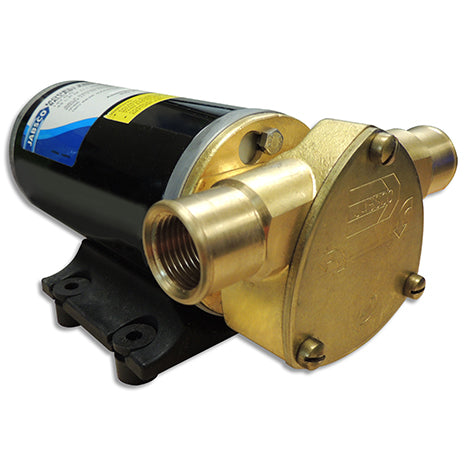

Jabsco Ballast King 22610 Series Pump (MPN: 22610-9007)

Efficiently manage ballast systems with reversible pumping technology.

The Jabsco Ballast King 22610 Series Pump is designed for effective management of ballast systems in marine applications. Utilizing advanced reversible flexible impeller technology, this self-priming pump can fill or empty ballast tanks quickly, achieving a flow rate of 15 gallons per minute. The pump features a 1 inch hose barb outlet and a 1/2 inch NPT inlet port, making it versatile for various setups.

This pump is equipped with ignition protection and complies with USCG 183.410 and ISO 8846 marine standards, ensuring safe operation in demanding environments. The reversible function allows for easy transfer of ballast between tanks or for discharging ballast overboard when necessary. The compact design, measuring 8 inches in length and 4-3/4 inches in width, makes it suitable for installation in tight spaces.

With the Ballast King, users can efficiently control their ballast systems, switching the pump on to fill tanks and off when full. This functionality streamlines the process of managing ballast, enhancing overall performance on the water.

Features

• Pump Is Reversible So It Can Add Liquid Ballast, And Then Pump It Overboard When Needed
• Complies With USCG 183.410 And ISO 8846 MARINE
• Pump Has Been Designed To Pump Fluid Into Ballast Tanks
• When Required, The Pump Is Switched On To Fill The Tank Then The Pump Switched Off When Full
• To Reduce Ballast, The Pump Will Reverse To Pump Ballast Back Over Board
• Same Operation Is Used For Ballast Transfer Between Two Tanks

Specifications

• Manufacturer: Jabsco
• Manufacturer Part Number: 22610-9007
• Type: Self-Priming
• Flow Rate: 15 Gallon Per Minute
• Inlet Port Type: 1/2 Inch NPT
• Outlet Port Type: 1 Inch Hose Barb
• Length: 8 Inch
• Width: 4-3/4 Inch
• Height: 3-5/8 Inch
• Voltage Rating: 12 Volt
• With Ignition Protection: Yes

Technical Documents

• 22610-ballast-king-pump.pdf
• jabsco-ballast-pumps-flyer.pdf
