J.W. Speaker Work Light 524 Series (MPN: 0543881)

High-performance LED lighting for various industrial applications.

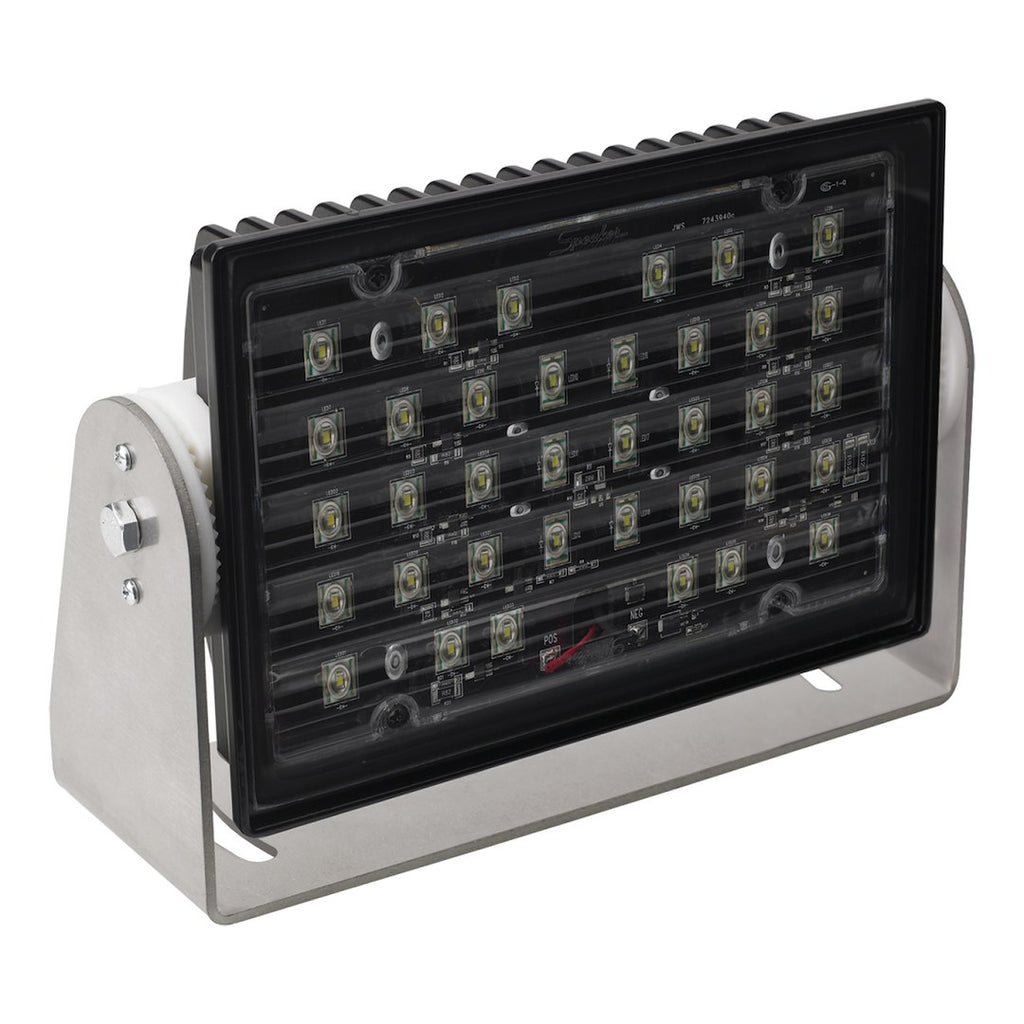

The J.W. Speaker Work Light 524 Series is engineered for demanding environments such as agriculture, construction, industrial, material handling, mining, railroad, and specialty vehicles. This work light features a robust 9 inch by 8 inch rectangular housing designed for pedestal mounting, providing versatility in installation. With an output of 8100 raw lumens and 3900 effective lumens, it delivers bright, white LED lighting that enhances visibility in low-light conditions.

Constructed with a durable black die-cast aluminum housing and a clear glass lens, the 524 Series is built to withstand harsh conditions while maintaining optimal performance. The wide flood beam pattern ensures a broad area is illuminated, making it suitable for various applications. This model operates efficiently on a power source of 12 to 24 volts, drawing 4 amps at 24 volts DC, which makes it compatible with a range of vehicles and equipment.

Designed to retrofit existing 9 inch by 8 inch rectangular lighting systems, the 524 Series offers a seamless upgrade for users looking to enhance their lighting solutions. Its technical specifications and robust design make it a reliable choice for professionals in need of high-quality lighting solutions.

Features

• Bright, White LED Lighting Providing Maximum Visibility
• Available In 1DC Configurations

Specifications

• Manufacturer: J.W. Speaker
• Manufacturer Part Number: 0543881
• Type: Pedestal Mount
• Bulb Type: LED
• Power Source: 12 To 24 Volt
• Quantity: Single
• Diameter (IN): Not Applicable
• Length (IN): 10 Inch
• Width (IN): 3-1/2 Inch
• Height (IN): 7 Inch
• Housing Color: Black
• Light Color: White
• Shape: Rectangular
• Lens Material: Glass
• Housing Material: Die-Cast Aluminum
• Bulb or Lens Guard: No
• Ampere Rating At 12 Volts: 6.7 Amp
• Ampere Rating At 24 Volts: 3.7 Amp
• Includes Charging Port: No

Technical Documents

• 0543881_BUL.pdf
