J.W. Speaker Work Light (MPN: 1707051)

High-performance LED work light for various applications and environments.

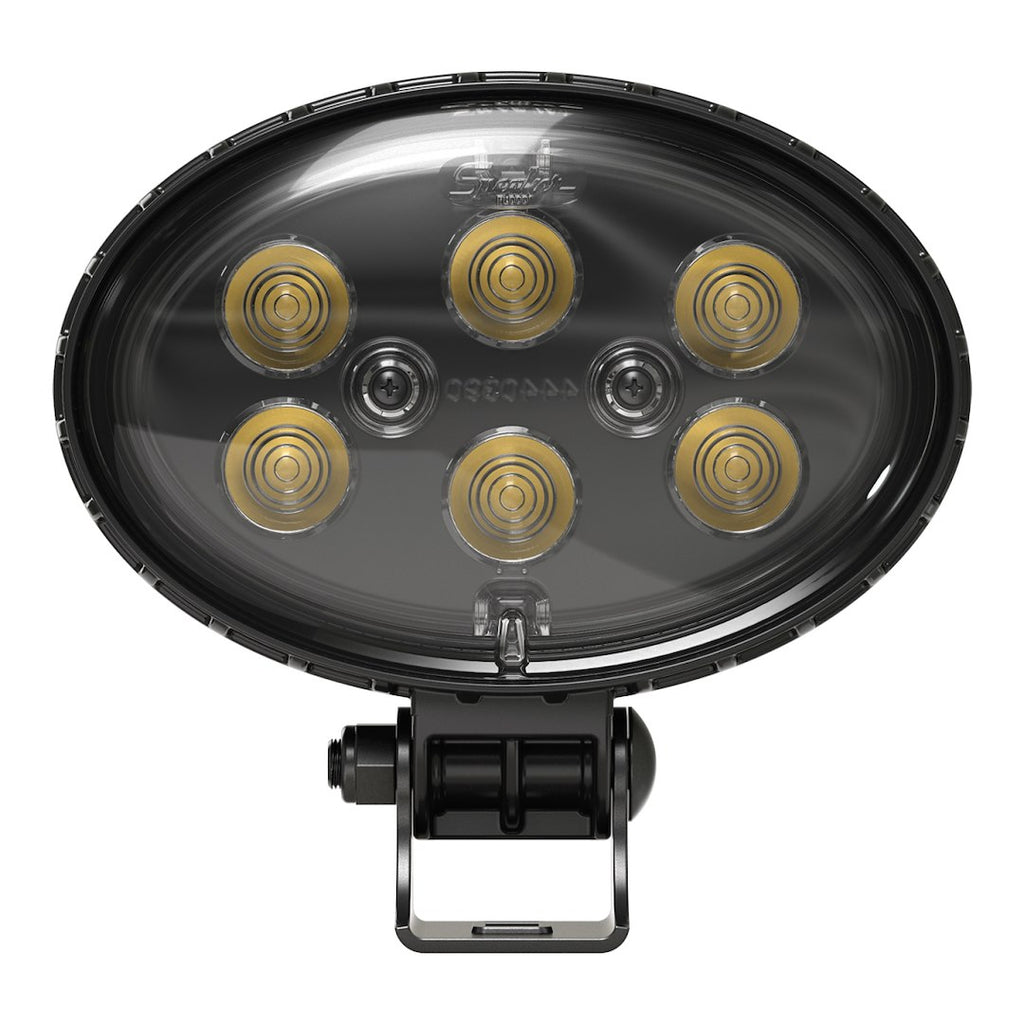

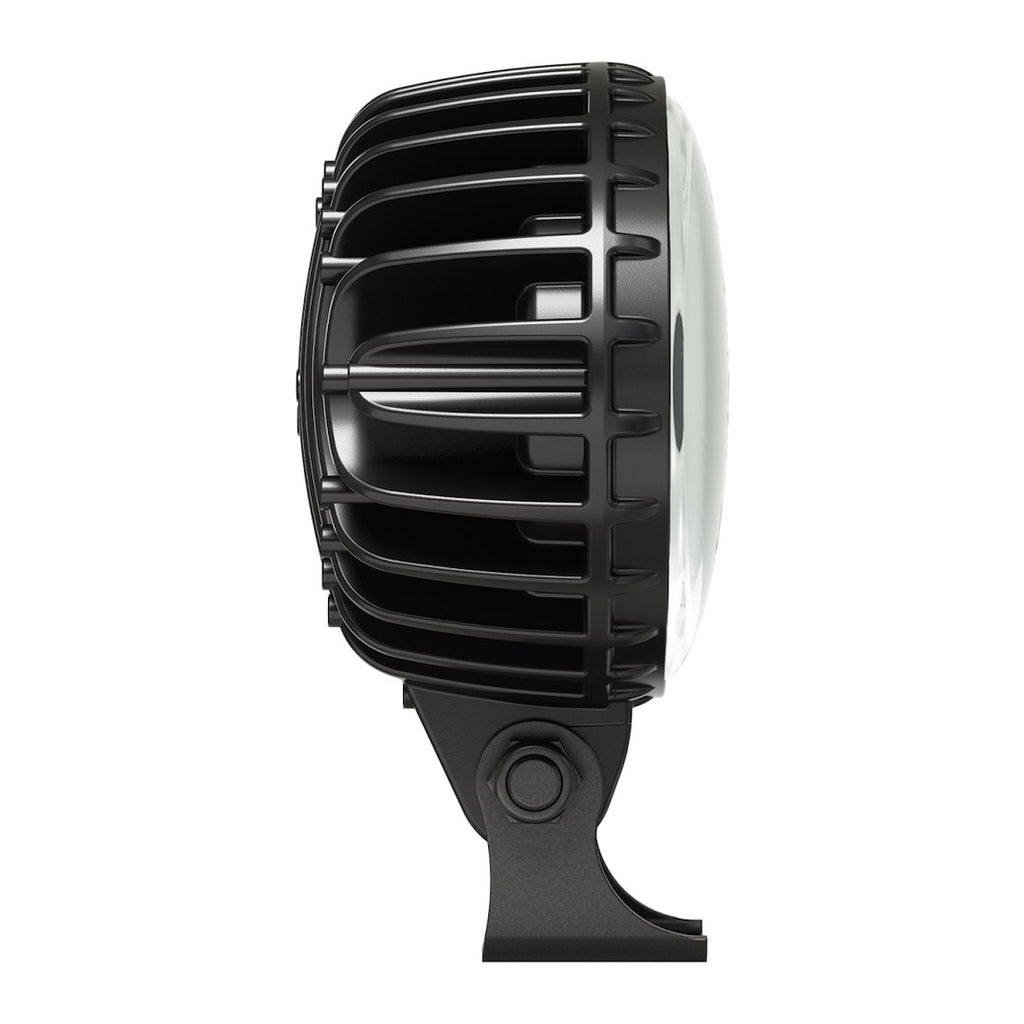

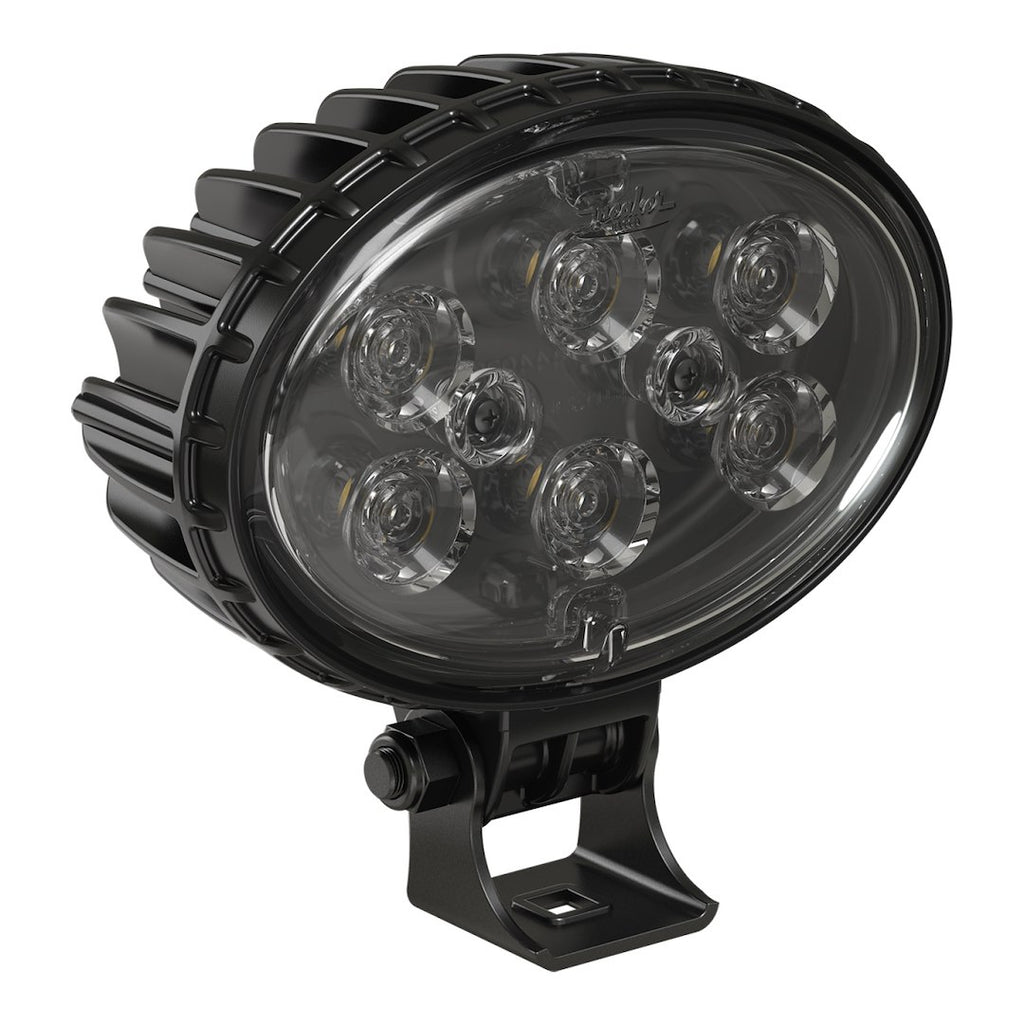

The J.W. Speaker Work Light is designed for a wide range of applications including agriculture, automotive, construction, industrial, material handling, mining, off-road 4x4, railroad, and specialty vehicles. With a robust oval shape measuring 5.68 inches in width and 5.4 inches in height, this work light features a durable black die-cast aluminum housing that ensures resistance to shock, vibration, and corrosion. The clear polycarbonate lens provides optimal light distribution with a spot beam, delivering 3900 raw lumens and 2600 effective lumens for enhanced visibility in demanding conditions.

This work light operates on a power source of 12 to 24 volts DC, drawing 3.50 amps at 12 volts and 1.75 amps at 24 volts. It is equipped with an integrated 2-pin Deutsch weather-proof socket and comes with a mating connector for easy installation. The lamp is eco-friendly and has been tested to meet IEC IP69K standards, ensuring it can withstand harsh environments. Made in the USA, this work light is a reliable choice for professionals seeking high-performance lighting solutions.

Features

• Housing Material Is Constructed From Die-Cast Aluminum
• Eco Friendly And IEC IP69K
• SAE J1113-13 Tested

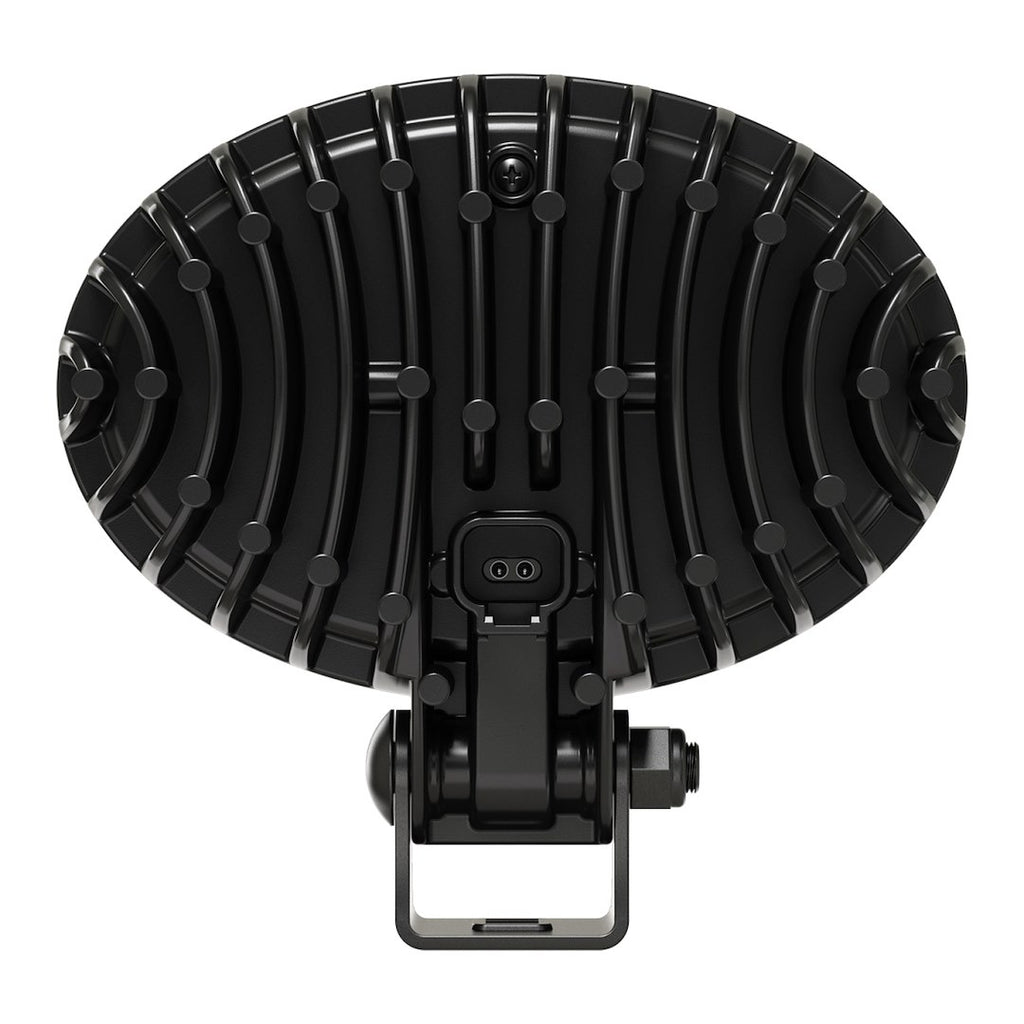

• Integrated 2-Pin Deutsch Weather-Proof Socket
• Mating Connector 2-Pin Deutsch Weather-Proof Plug
• Made In USA

Specifications

• Manufacturer: J.W. Speaker
• Manufacturer Part Number: 1707051
• Type: Pedestal Mount
• Bulb Type: LED
• Power Source: 12 To 24 Volt
• Quantity: Single
• Diameter (IN): Not Applicable
• Length (IN): 2.6 Inch
• Width (IN): 5.68 Inch
• Height (IN): 5.4 Inch
• Housing Color: Black
• Light Color: White
• Shape: Oval
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Bulb or Lens Guard: No
• Includes Charging Port: No
• Includes Mounting Hardware: Yes
• Marine: No

Technical Documents

• Part_1707051_-_JW_Speaker.pdf
