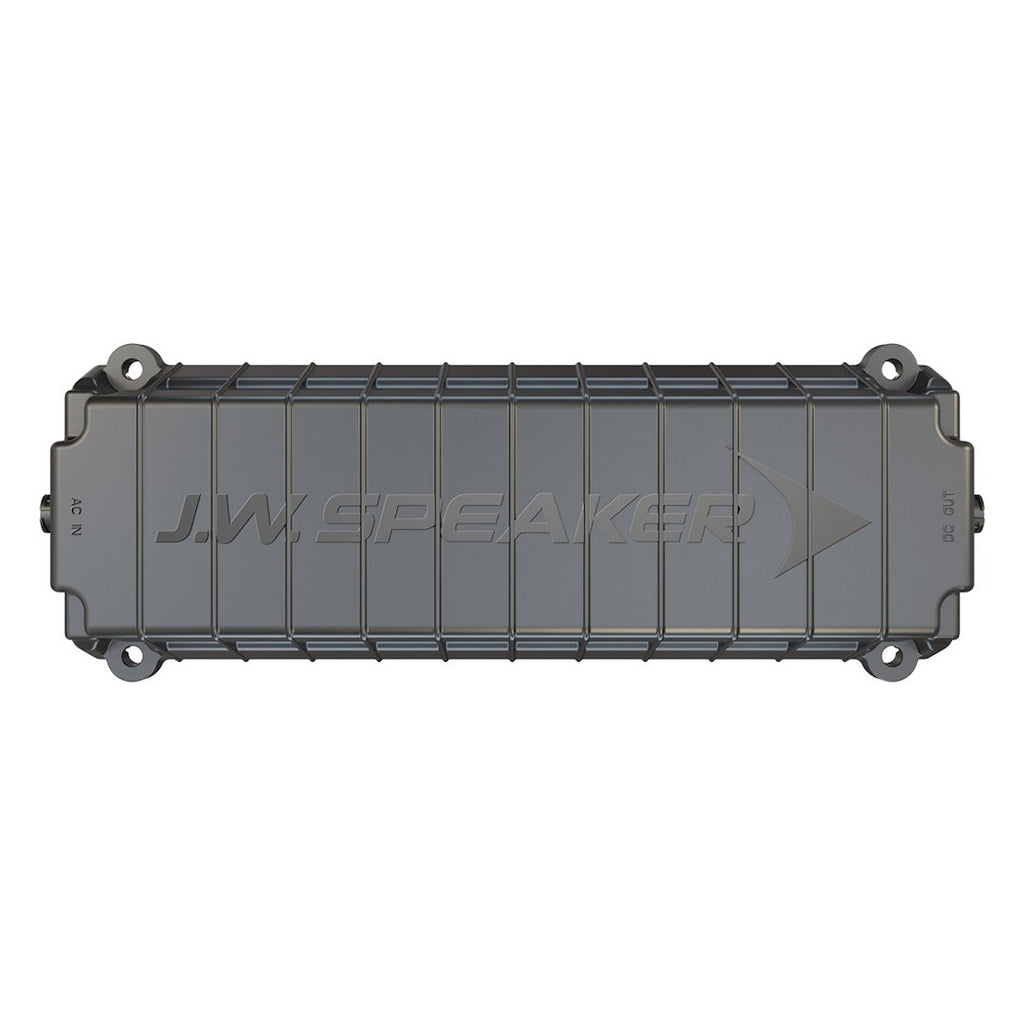

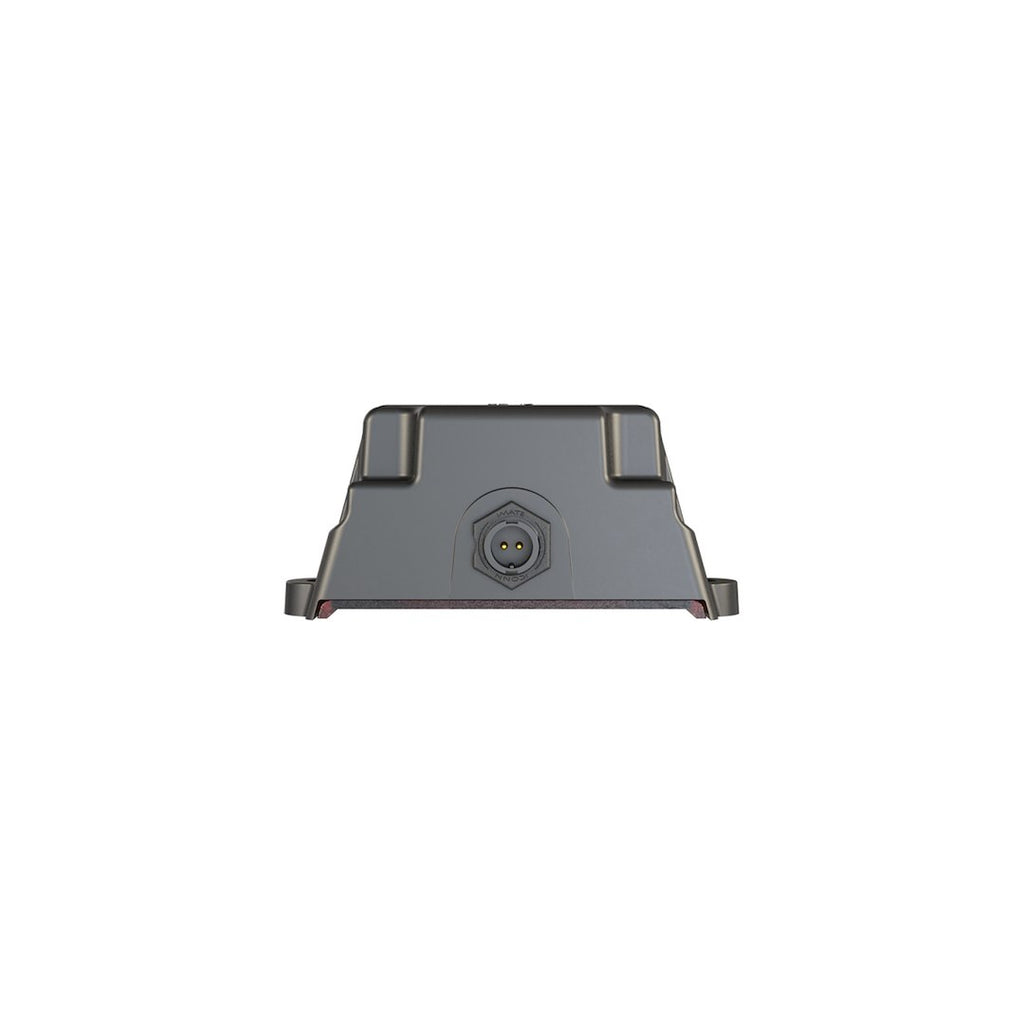

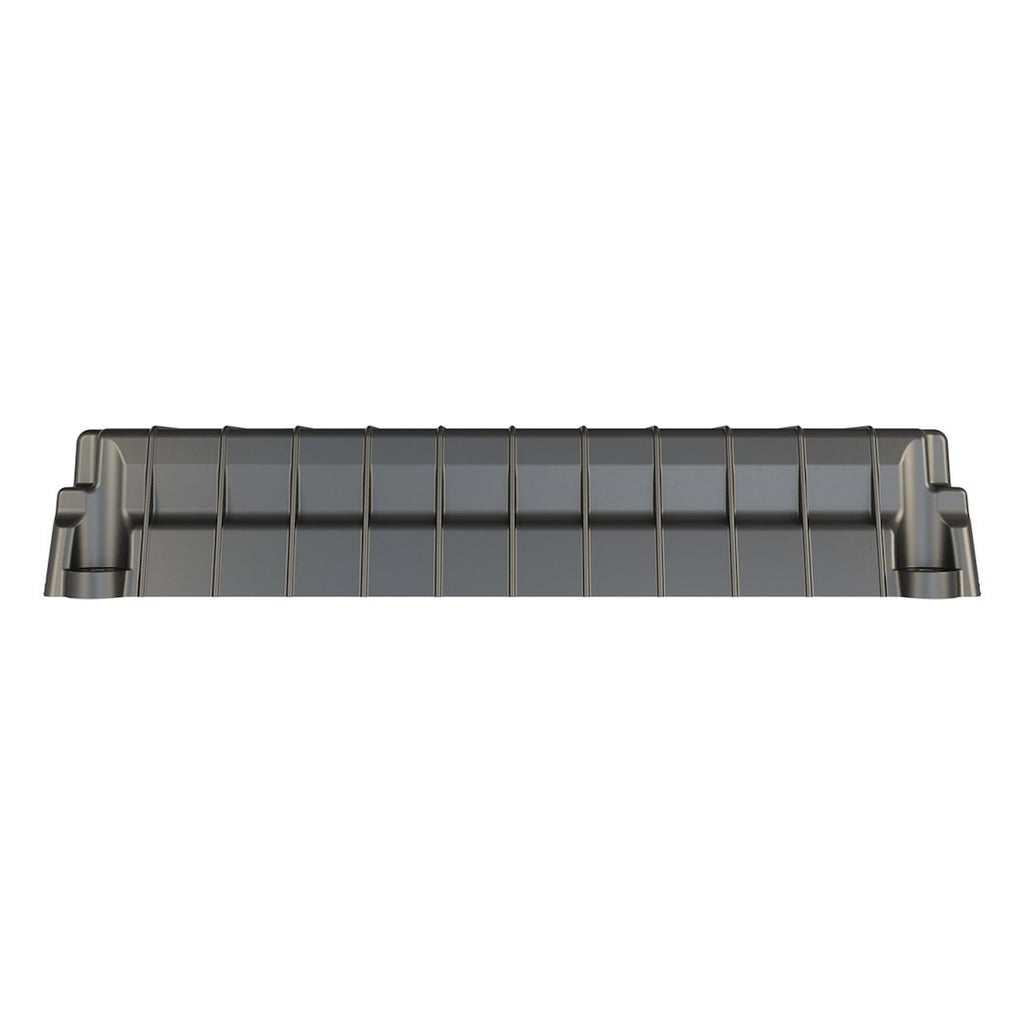

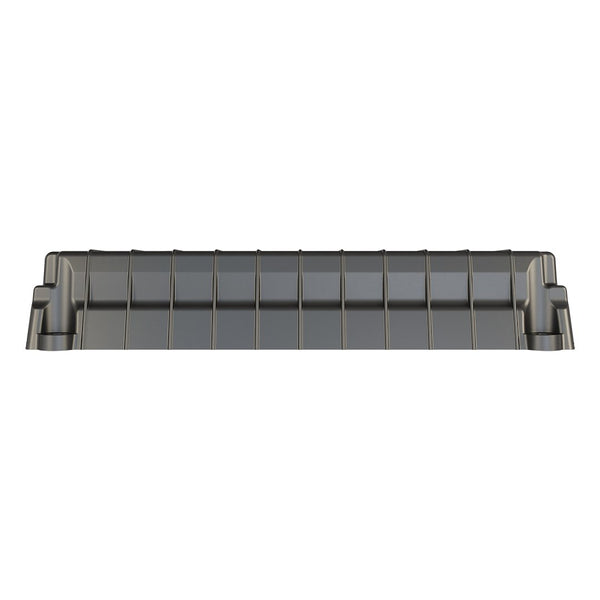

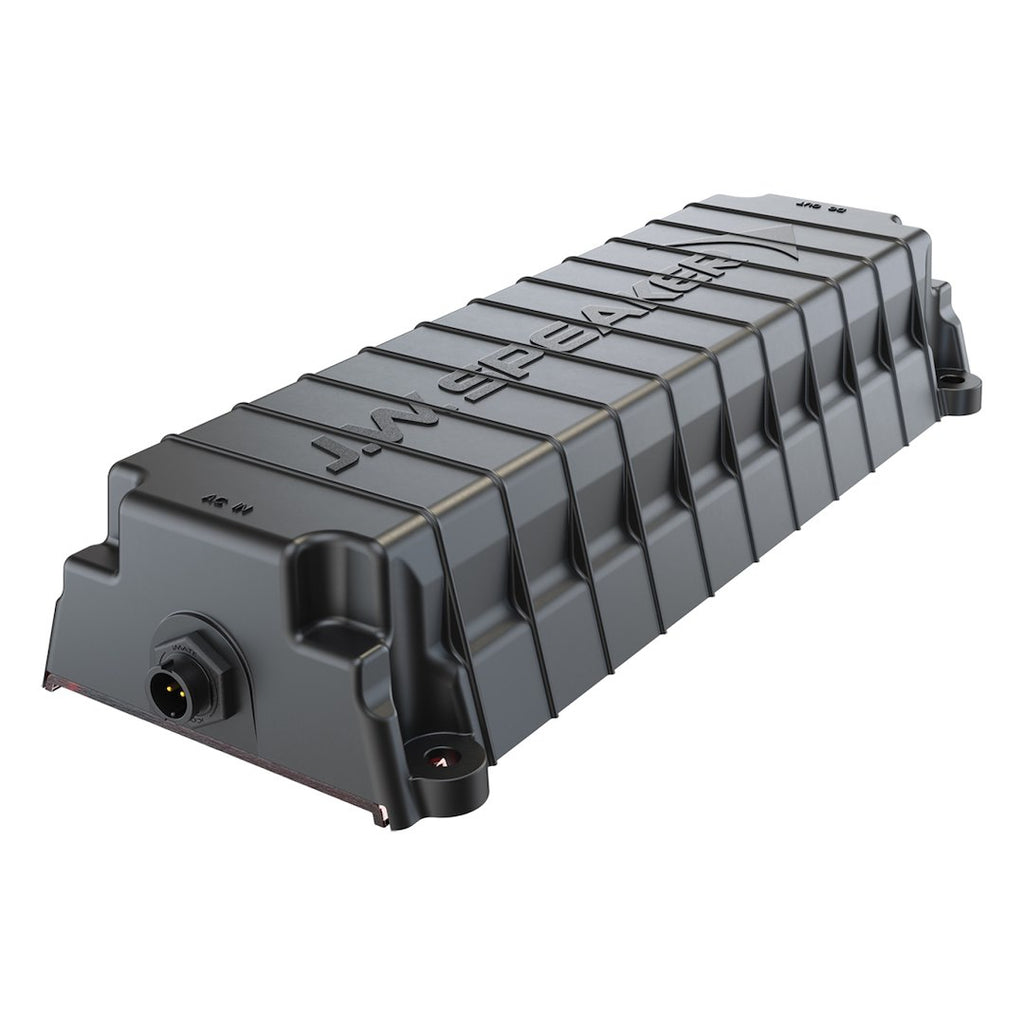

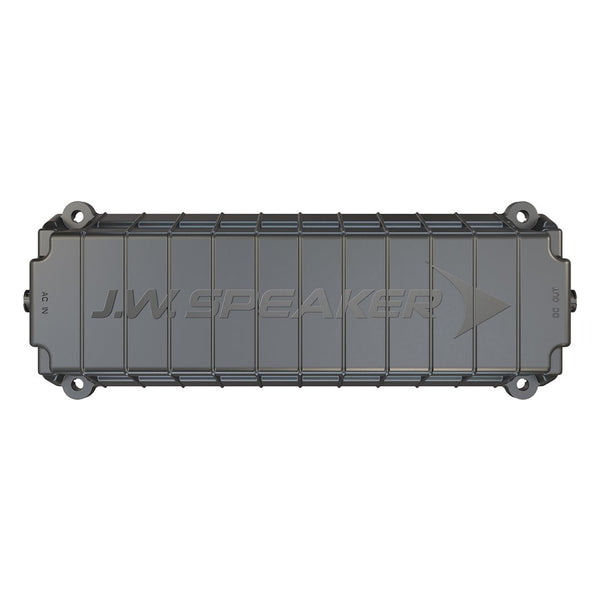

J.W. Speaker Power Converter (MPN: 0842301)

Efficiently converts AC power to DC for versatile applications.

The J.W. Speaker Power Converter is designed to convert 100-277 Volt AC to 24 Volt DC, providing a reliable power solution for various applications. With a continuous output power of 150 Watts and a maximum output current of 6.25 Amps, this converter is suitable for demanding environments such as mining, locomotives, and industrial settings. The unit features a heavy-duty XENOY housing and rugged harnesses, ensuring durability and longevity in challenging conditions.

This power converter system is customizable, allowing users to select the necessary AC or DC converter box, input harness, and output harness tailored to their specific needs. The low-profile mount design facilitates easy implementation in tight spaces, making it a practical choice for various installations. The converter is designed for straightforward plug-and-play assembly with ICONN connectors, enhancing user convenience and efficiency.

Features

• Heavy-Duty XENOY Housing And Rugged Harnesses Provide Durability
• Perfect For Mining, Locomotive, And Industrial Applications
• System Is Customizable, Allowing You To Select The Necessary AC Or DC Converter Box, Input Harness And Output Harness For Your Application Needs
• Converter Boxes Are Designed With Heavy-Duty Zenoy Housings And Were ICONN Connectors For Easy Plug And Play Assembly
• Low-Profile Mount For Easy Implementation

Specifications

• Manufacturer: J.W. Speaker
• Manufacturer Part Number: 0842301
• Converts: 100-277 Volt AC To 24 Volt DC
• Continuous Output Power: 150 Watt
• Ampere Rating: 6.25 Amp
• Number Of Outlets: 1
• Length: 12-1/2 Inch
• Width: 4-1/4 Inch
• Height: 2-1/4 Inch
• Remote On/Off Capable: No
• With USB Port: No
• With Volt/Watt Meter: No
• With Short Circuit: No
• With Reverse Battery Protection: No
• With Thermal Protection: No
• With Battery Cables: No
• With Built-In Charger: No
• With Fuse: No
