J.W. Speaker Model 710 Work Light (MPN: 1000121)

Compact and powerful lighting solution for industrial applications.

The J.W. Speaker Model 710 is a versatile work light designed for warehouse, construction, and industrial environments. This compact flush-mount light provides exceptional illumination with three distinct settings: driving beam, high beam, and full spread beam. With a maximum output of 2000 raw lumens in six-light mode and 1630 raw lumens in three-light mode, it ensures optimal visibility in various conditions.

Constructed with a rugged polycarbonate housing, the Model 710 is built to withstand the demands of tough work environments. The integrated 2-pin weatherproof Deutsch connector allows for easy installation and reliable performance. Its compact design offers flexibility in mounting, making it suitable for a range of applications including trucks and buses.

The light operates efficiently with a low amp draw of 1.54 amps at 12 volts in three-light mode and 1.59 amps in six-light mode. This energy-efficient LED work light is an essential tool for enhancing safety and productivity in any workspace.

Features

• Compact Flush-Mount Design For Mounting Flexibility
• Powerful Punch Of Light In Both Vertical And Horizontal Planes
• Rugged Polycarbonate Housing
• Integrated 3-Pin Packard Connector
• Three Settings: Driving, High, And Full

Specifications

• Manufacturer: J.W. Speaker
• Manufacturer Part Number: 1000121
• Type: Flush Mount
• Bulb Type: LED
• Power Source: 12 To 110 Volt
• Quantity: Single
• Diameter (IN): Not Applicable

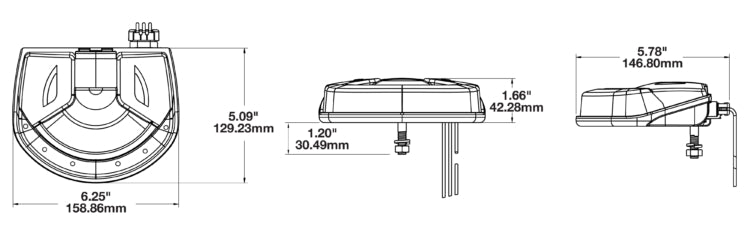

• Length (IN): 1-3/4 Inch
• Width (IN): 6-1/4 Inch
• Height (IN): 5-1/8 Inch
• Housing Color: Black
• Light Color: White
• Shape: Rectangular
• Lens Material: Polycarbonate
• Housing Material: Polycarbonate
• Bulb or Lens Guard: No
• Ampere Rating At 12 Volts: 1.6 Amp
• Ampere Rating At 24 Volts: 0.7 Amp
• Includes Charging Port: No
• Includes Mounting Hardware: Yes

Technical Documents

• JW-Speaker-Model-710-Sell-Sheet-2018.pdf
