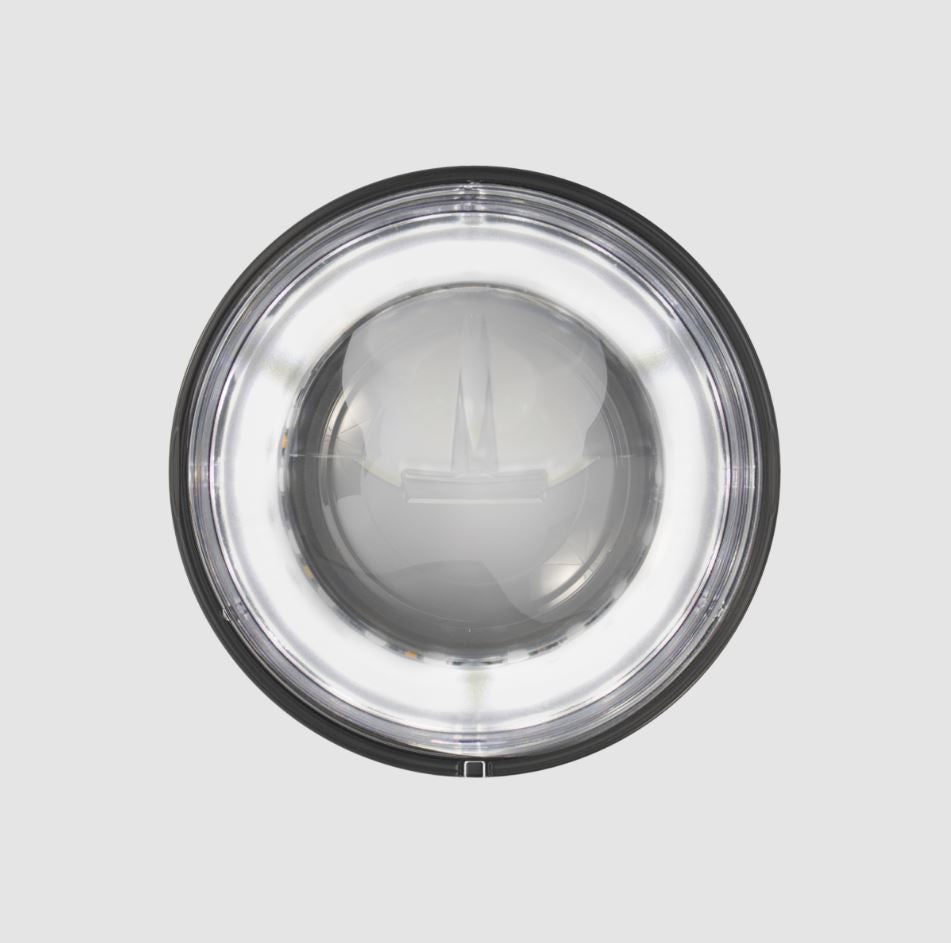

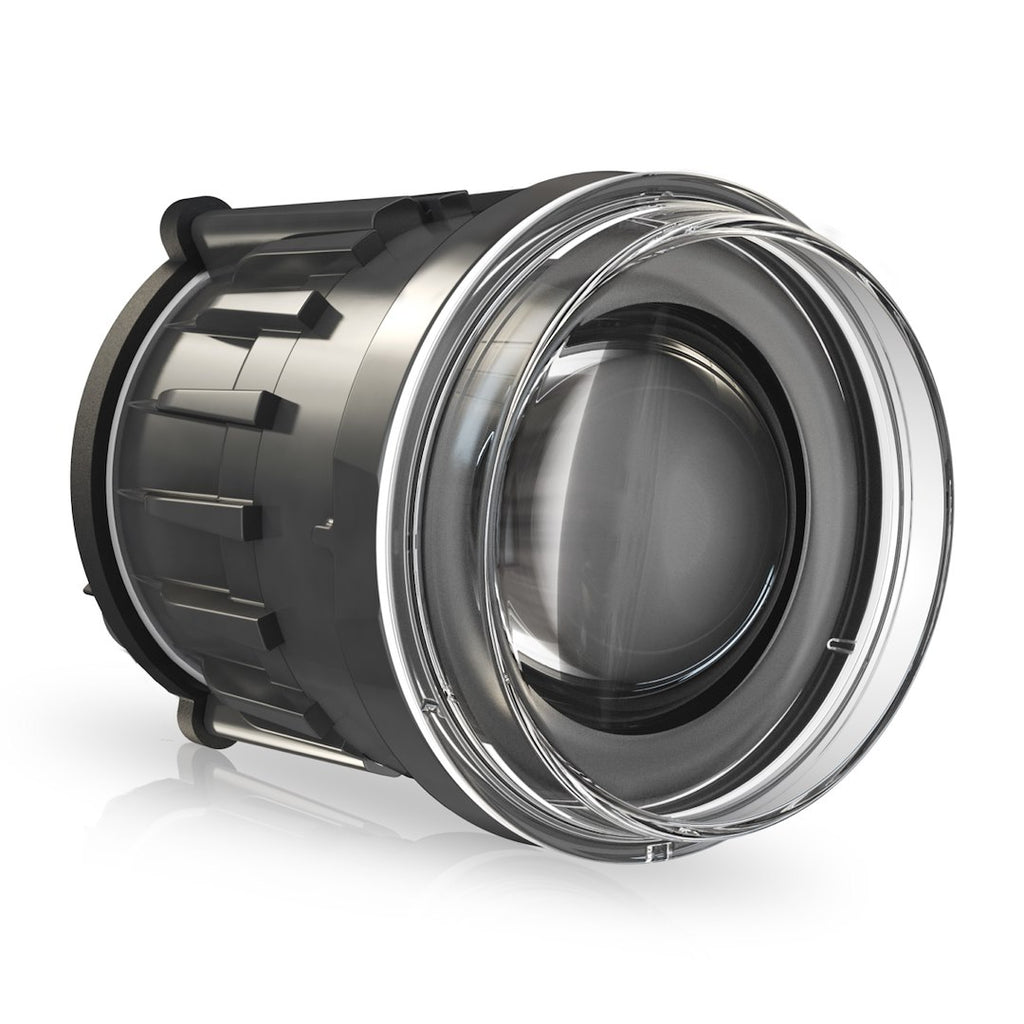

J.W. Speaker LED Model 93 Headlight Assembly (MPN: 0530091)

High-performance LED headlight with multiple functionalities for various vehicles.

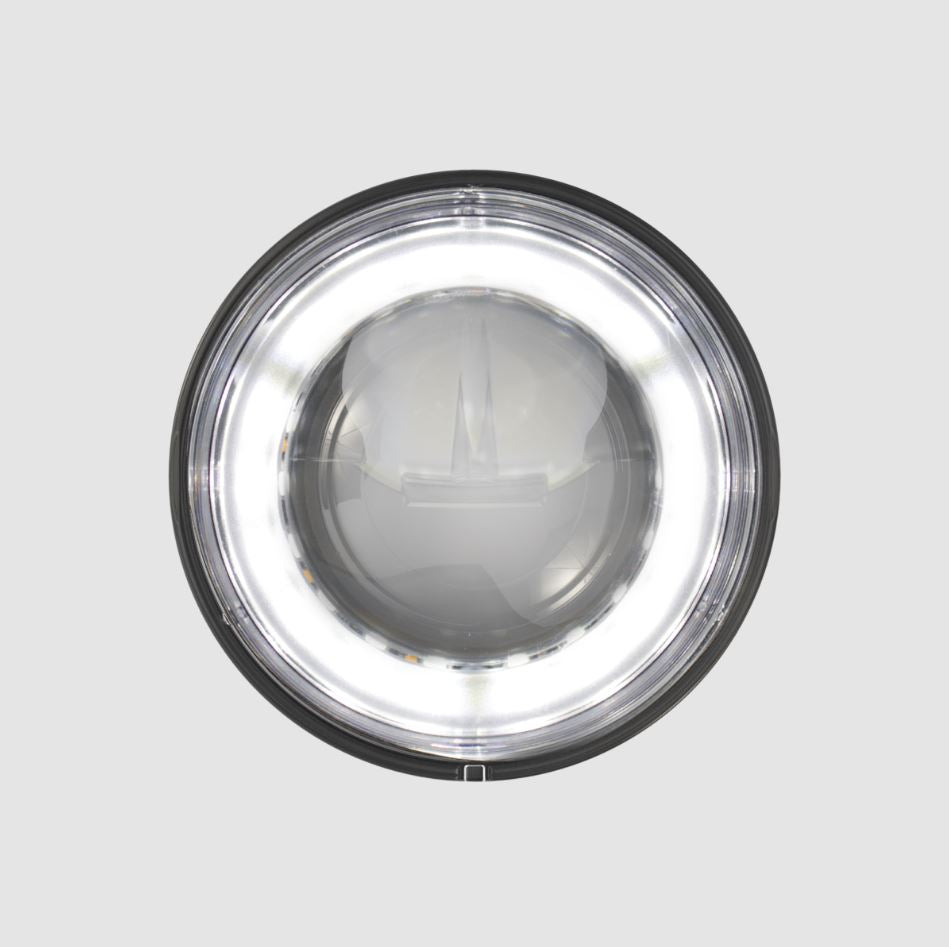

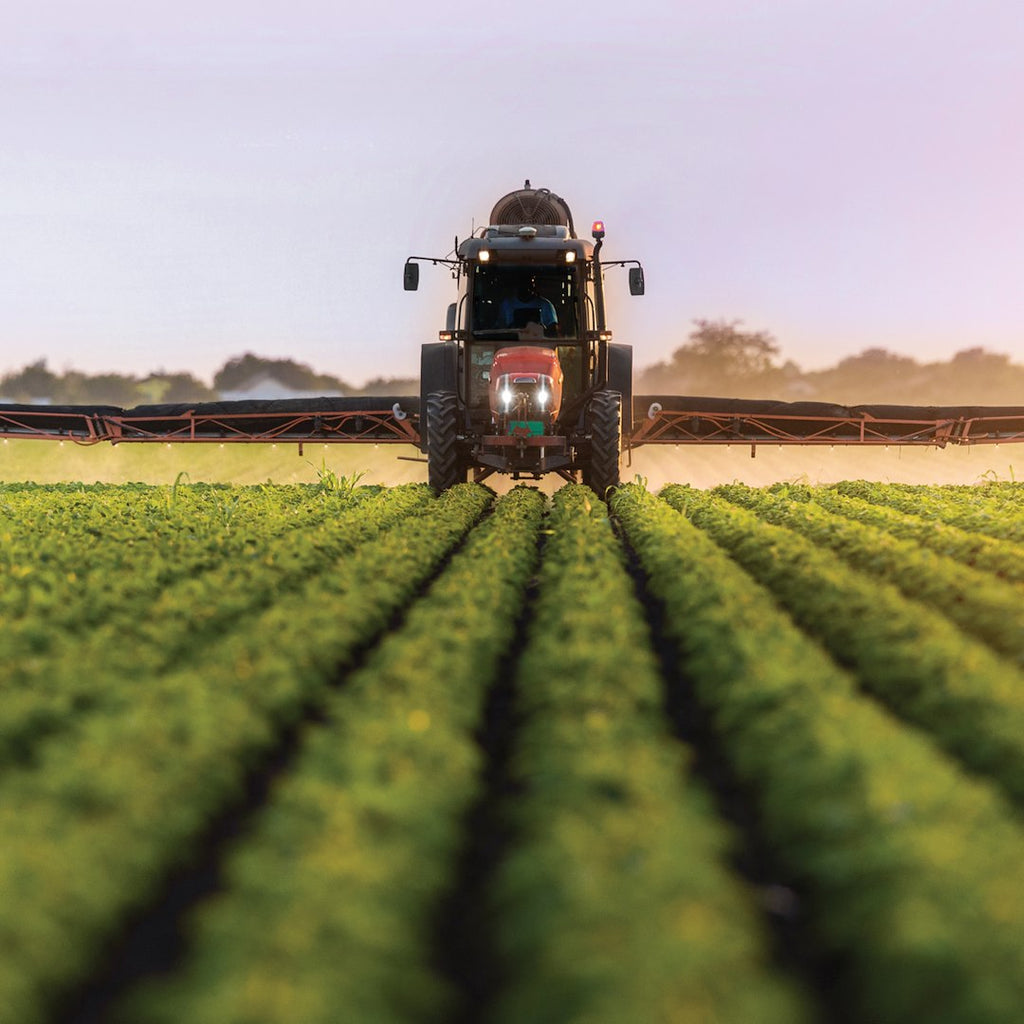

The J.W. Speaker LED Model 93 headlight assembly is engineered to serve as a versatile lighting solution for 90 millimeter applications. This advanced headlight features a 5-in-1 design, incorporating Low Beam, High Beam, Daytime Running Light, Front Position, and Turn Signal functionalities, making it suitable for a wide range of vehicles including agricultural, automotive, and industrial applications. With a clear polycarbonate lens and a robust black aluminum housing, this headlight is built to withstand harsh conditions while providing optimal visibility.

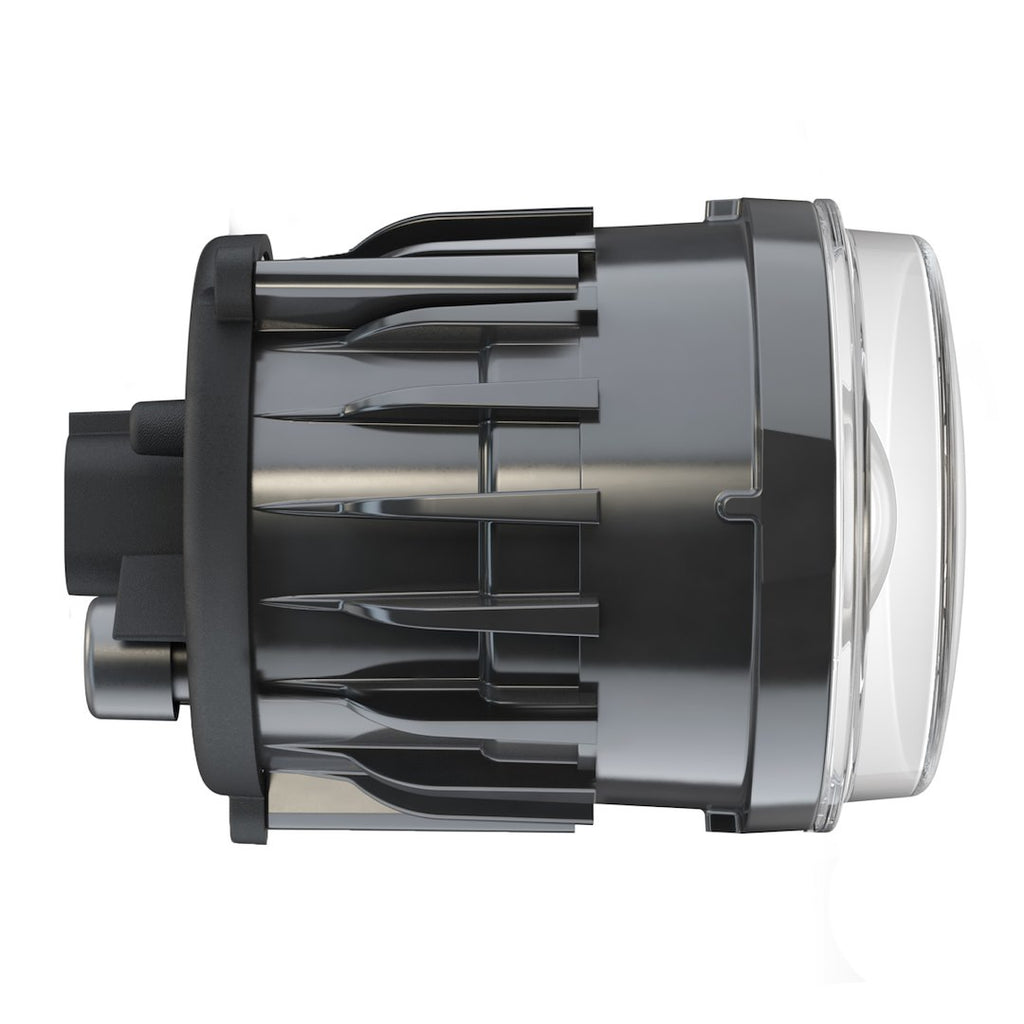

Designed for easy installation, the Model 93 serves as a drop-in replacement for standard 90mm lights, ensuring compliance with ECE and DOT regulations for legal on-road use. The headlight meets stringent IP67 and IP69K standards, offering superior protection against dust and water ingress. Additionally, the re-designed die-cast aluminum housing features a sealed integrated connector, enhancing durability and reliability in demanding environments.

The Model 93 headlight assembly draws 1.45 amps at 12 volts for high beam and 1.13 amps for low beam, making it an efficient choice for modern vehicles. Its pedestal mount brackets can be adjusted at 90-degree intervals, providing maximum mounting flexibility while maintaining pattern integrity. This headlight is an excellent choice for those seeking a high-performance lighting solution that meets the rigorous demands of various applications.

Features

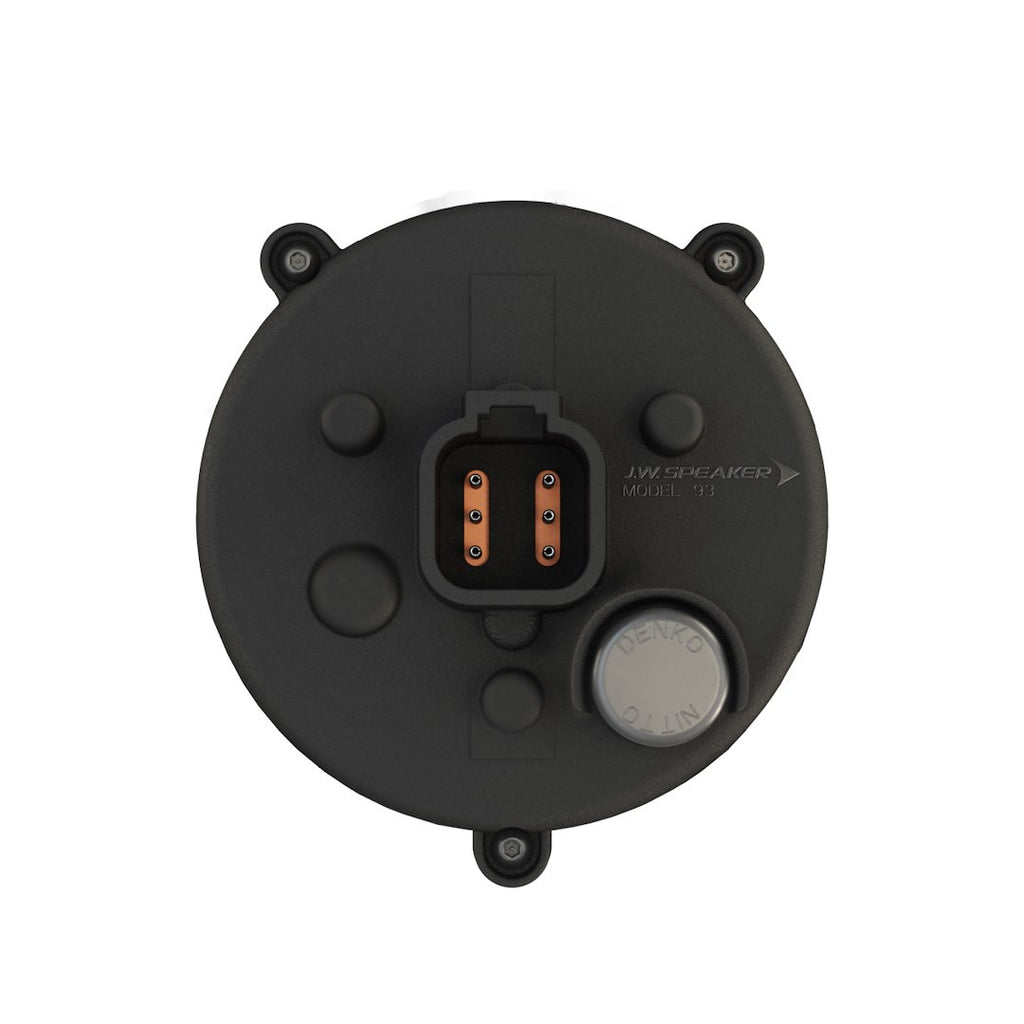

• Re-Designed Die-Cast Aluminum Housing Features A Sealed Integrated Connector To Meet The Harsh Demands Of Transportation And Municipal Applications
• Drop-In Replacement For Standard 90mm Lights
• 100 Percent ECE And DOT Compliant 90 Millimeter Lights For Legal On-Road Use
• Meets The Tough Criteria For IP67 And IP69K For The Best Protection From Dust And Water Ingress
• Pedestal Mount Brackets Can Be Positioned At 90 Degree Intervals For Maximum Mounting Flexibility, All While Maintaining Pattern Integrity And Legality

Specifications

• Manufacturer: J.W. Speaker
• Manufacturer Part Number: 0530091
• Bulb Type: LED Composite
• Headlight Type: Projector Beam

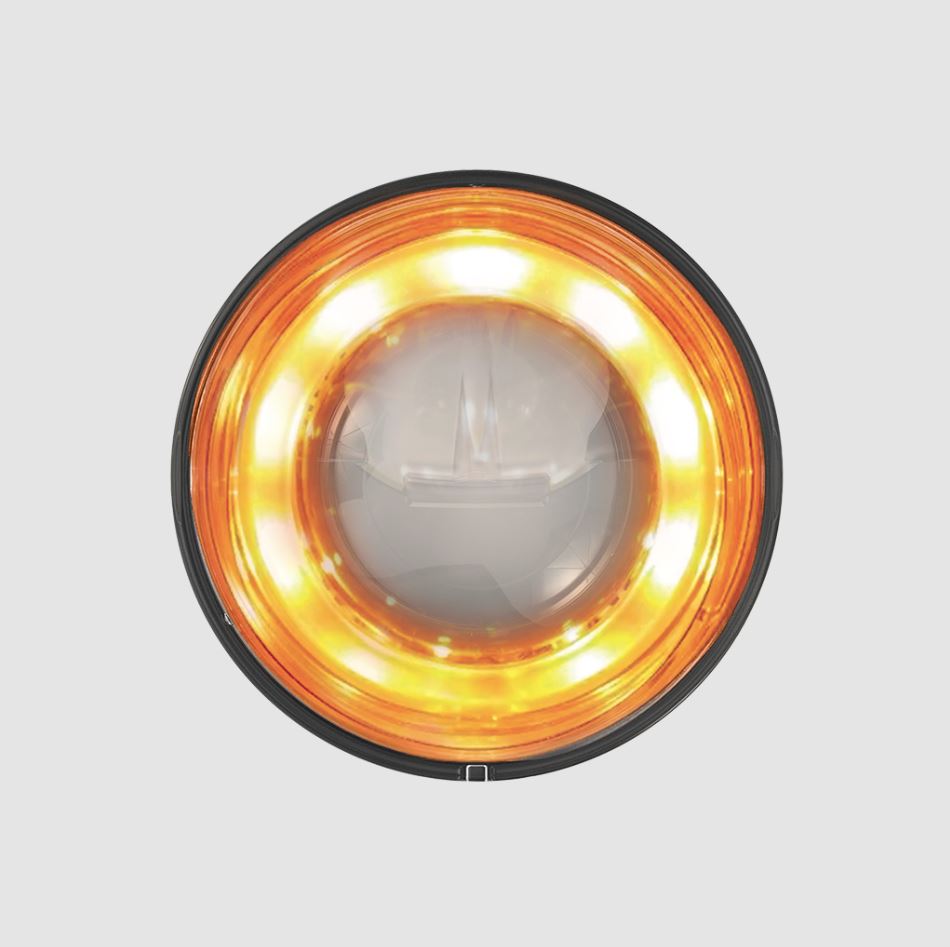

• Light Color: Amber/ White

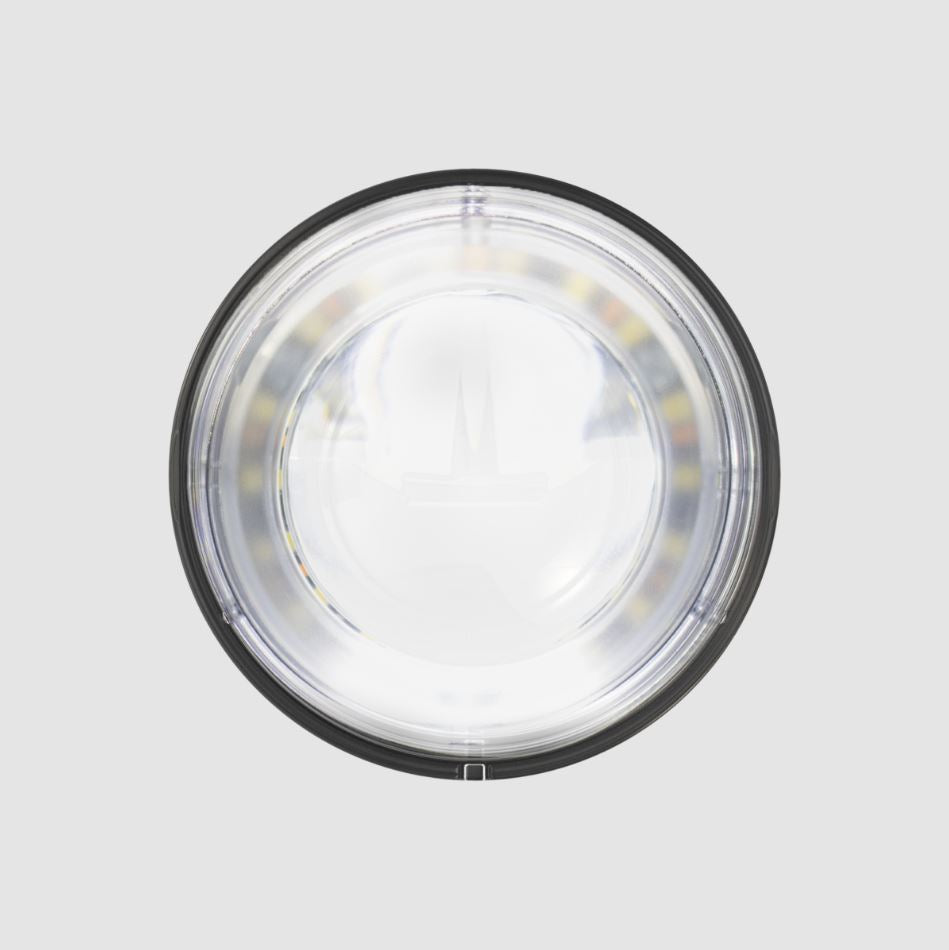

• Lens Color: Clear
• Quantity: Single
• Bulb Specifications: High Beam LED/ Low Beam LED
• With Camera: No
• Street Legal: Yes
• Ampere Rating At 12 Volts: 1.45 Amp For High Beam/ 1.13 Amp For Low Beam
• Ampere Rating At 24 Volts: 0.70 Amp/ 1.03 Amp/ 0.07 Amp
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Aluminum
• Estimated Install Time (Hours): 1.5
• Marine: No

Technical Documents

• Part_0530091_-_JW_Speaker.pdf
