J.W. Speaker LED Headlight Assembly Model 93 (MPN: 0530101)

High-performance LED headlight with multiple functionalities for various vehicles.

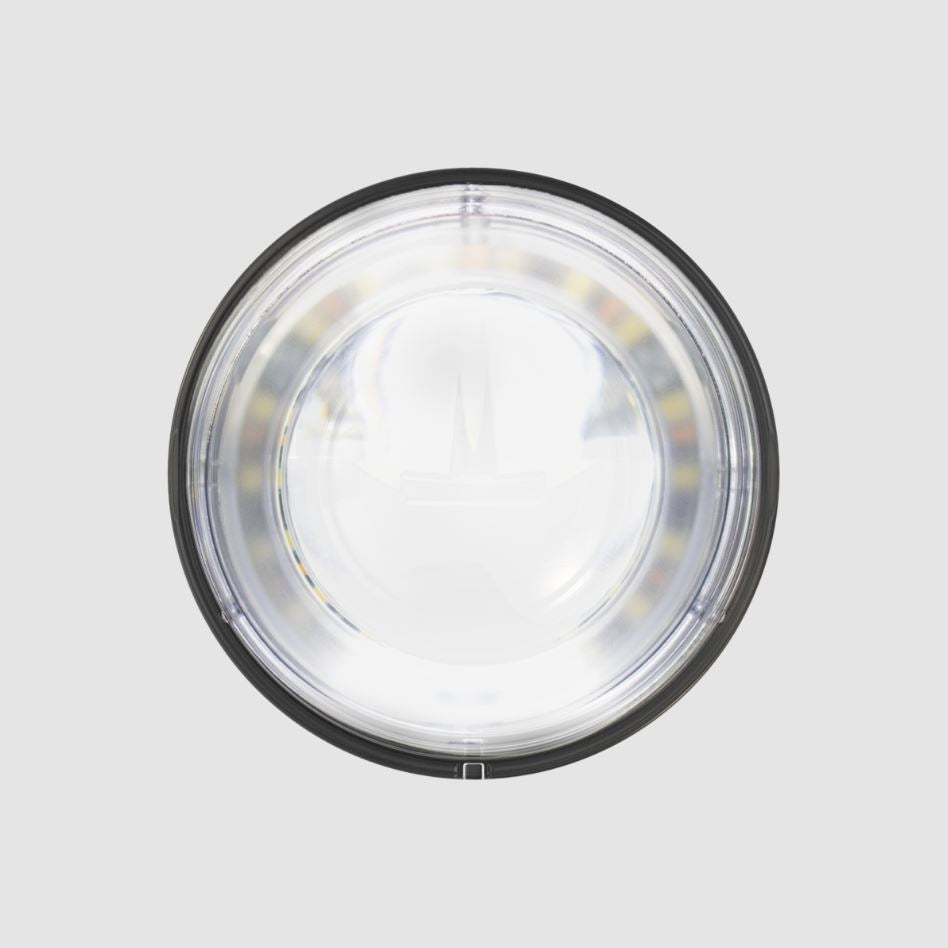

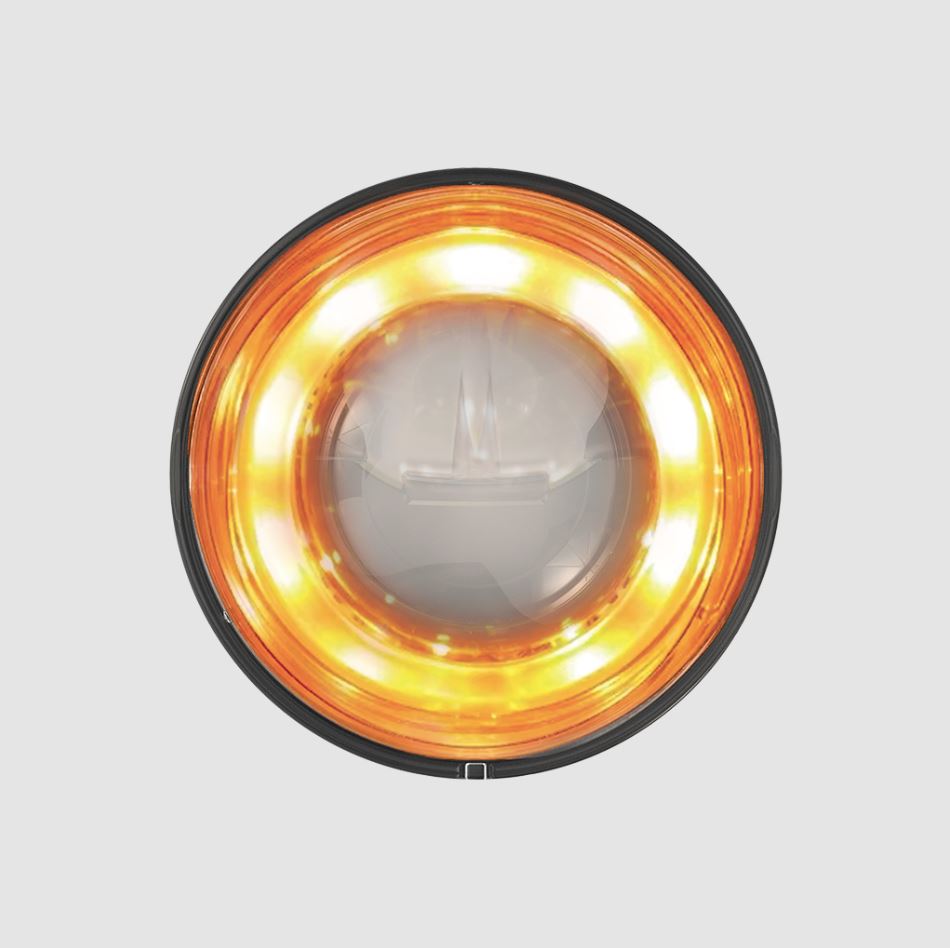

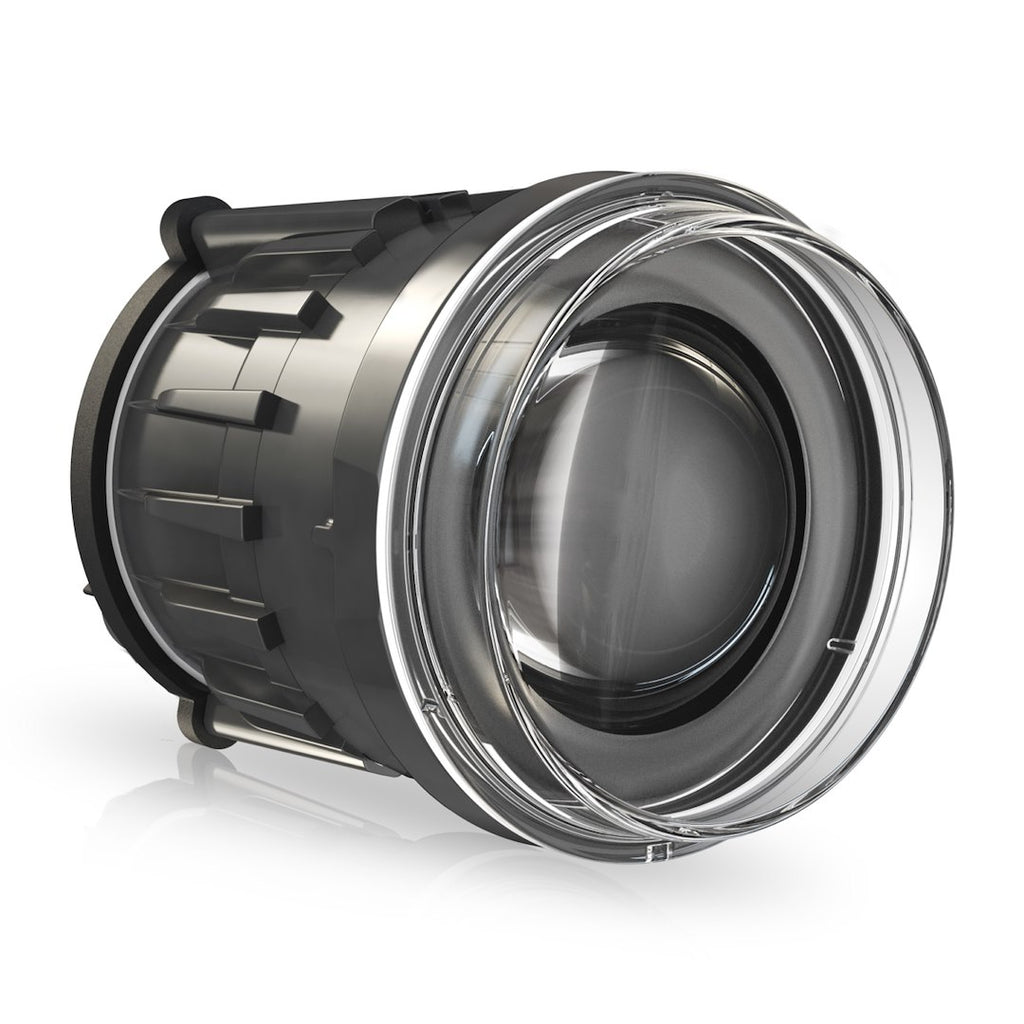

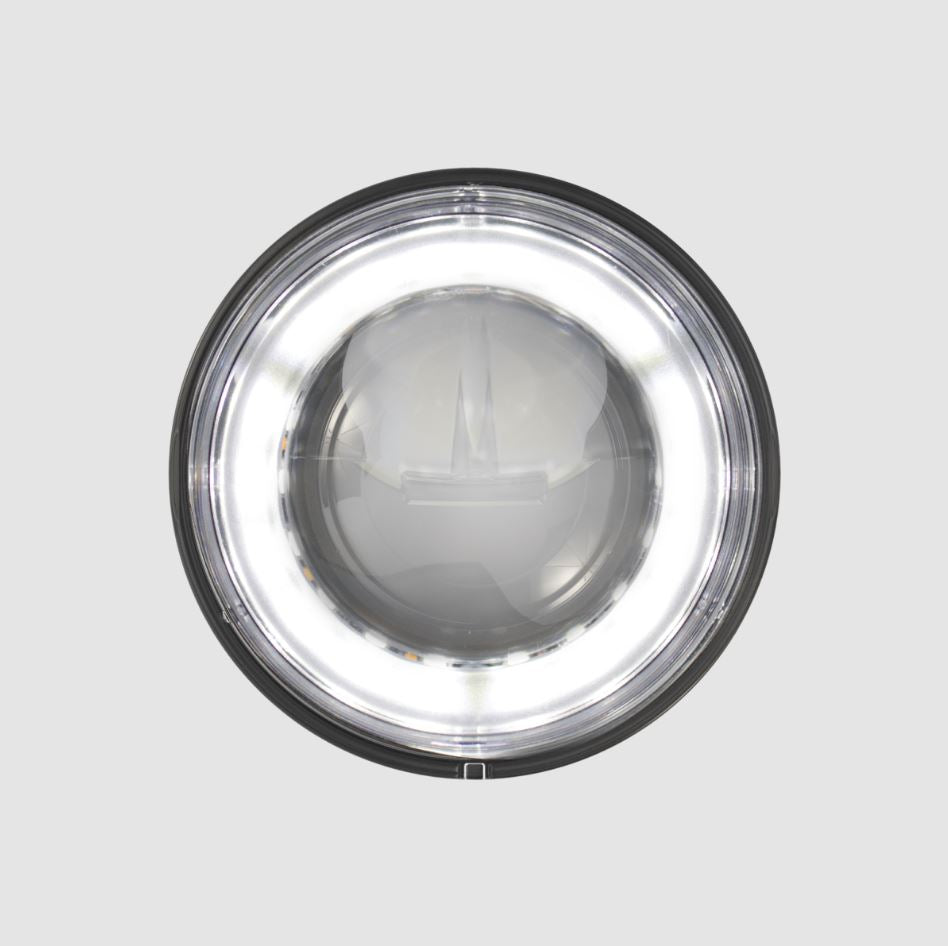

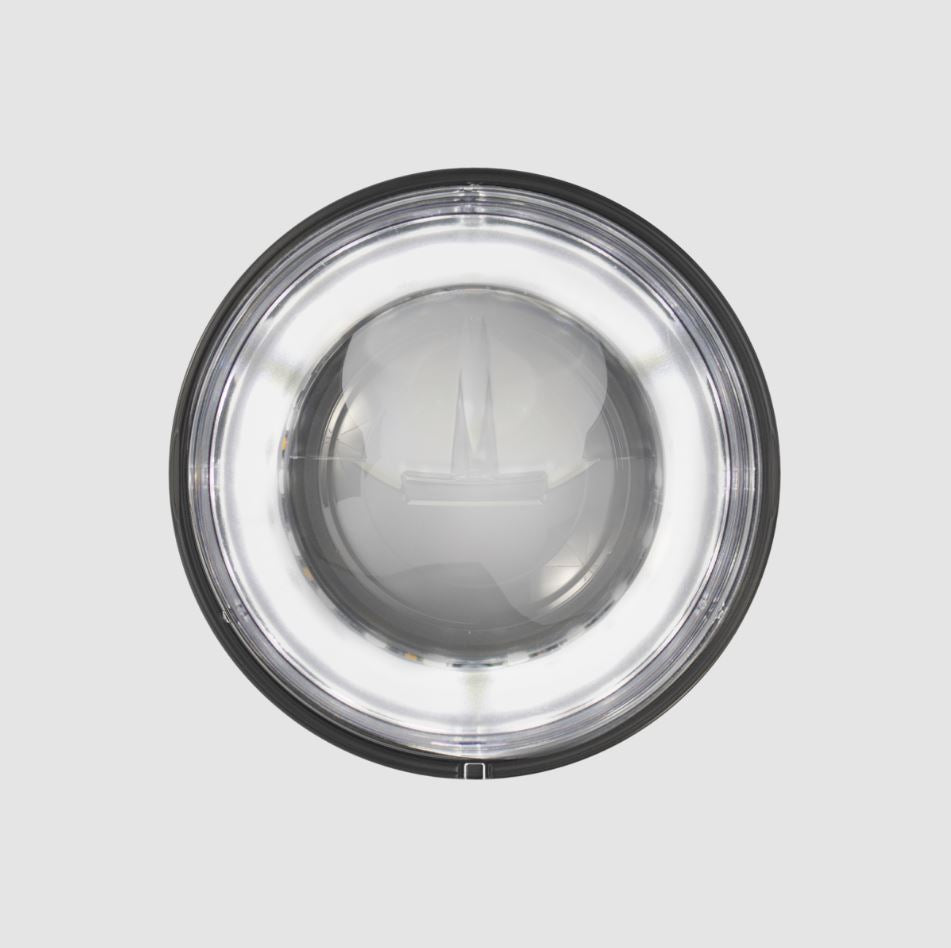

The J.W. Speaker LED Headlight Assembly Model 93 is engineered to serve as a versatile lighting solution for 90 millimeter headlight applications. This headlight integrates five functions into a single unit, including Low Beam, High Beam, Daytime Running Light, Front Position, and Turn Signal, making it suitable for a wide range of vehicles from agriculture to off-road applications. The robust design features a clear polycarbonate lens and a black aluminum housing, ensuring durability and compliance with DOT and ECE standards for legal on-road use.

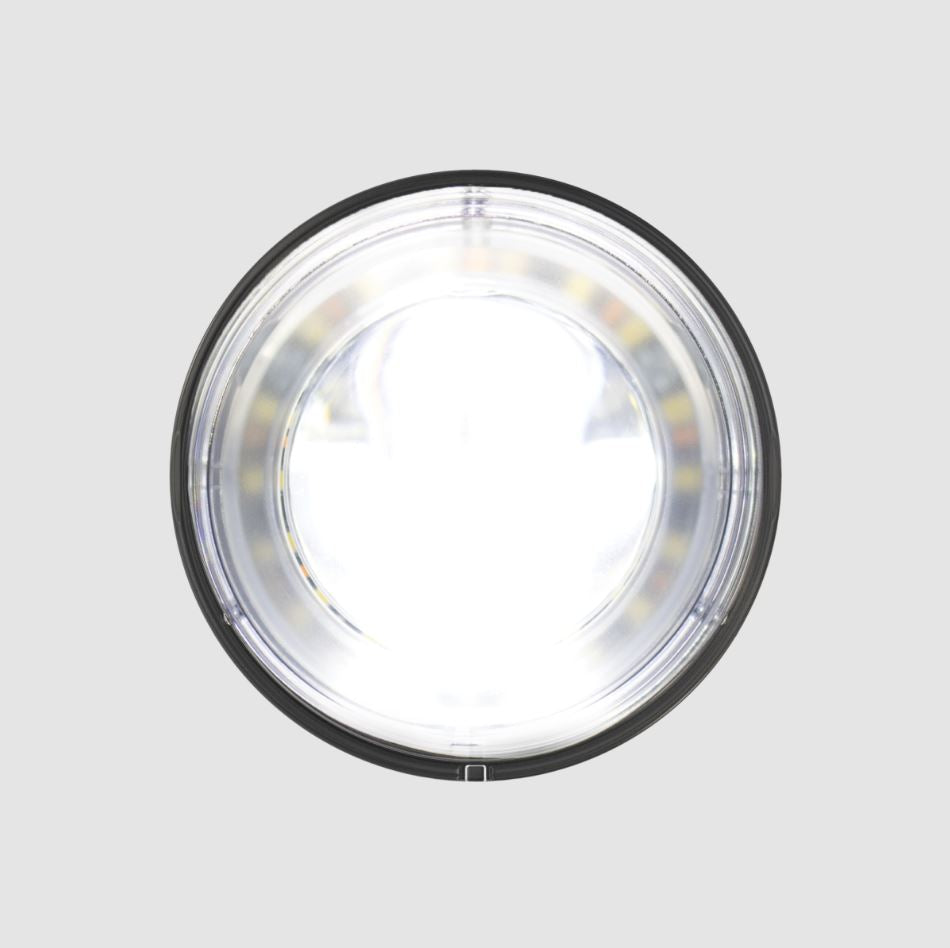

With an impressive output of 2650 raw lumens for high beam and 1750 raw lumens for low beam, the Model 93 provides superior visibility while drawing minimal power, with a 1.45 amp draw at 12 volts for high beam and 1.13 amp for low beam. The headlight is rated IP67, offering excellent protection against dust and water ingress, making it reliable in harsh environments. Additionally, the re-designed die-cast aluminum housing includes a sealed integrated connector, enhancing its resilience for transportation and municipal applications.

Installation is straightforward, as the Model 93 serves as a drop-in replacement for standard 90mm lights, and pedestal mount brackets can be adjusted at 90-degree intervals for optimal positioning. This headlight assembly is a practical choice for those seeking a high-performance lighting solution that meets stringent safety and durability criteria.

Features

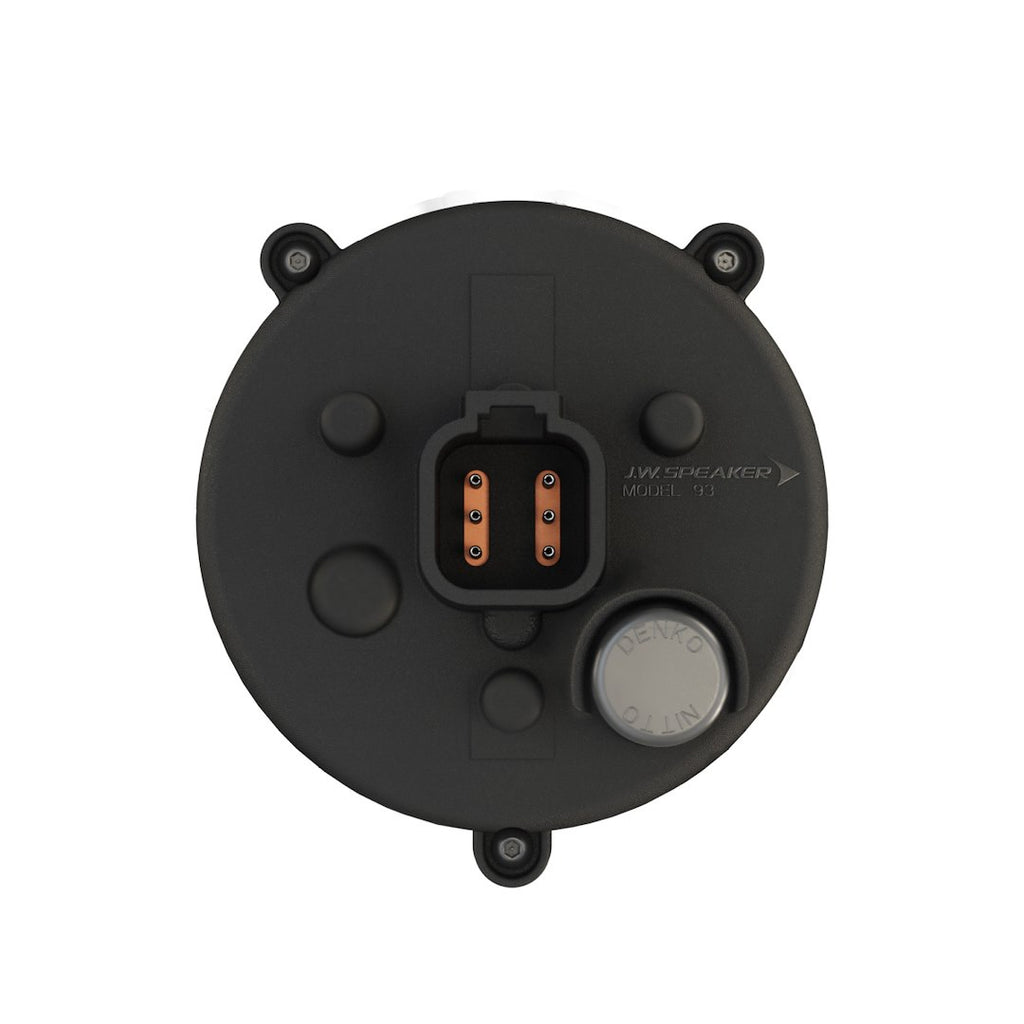

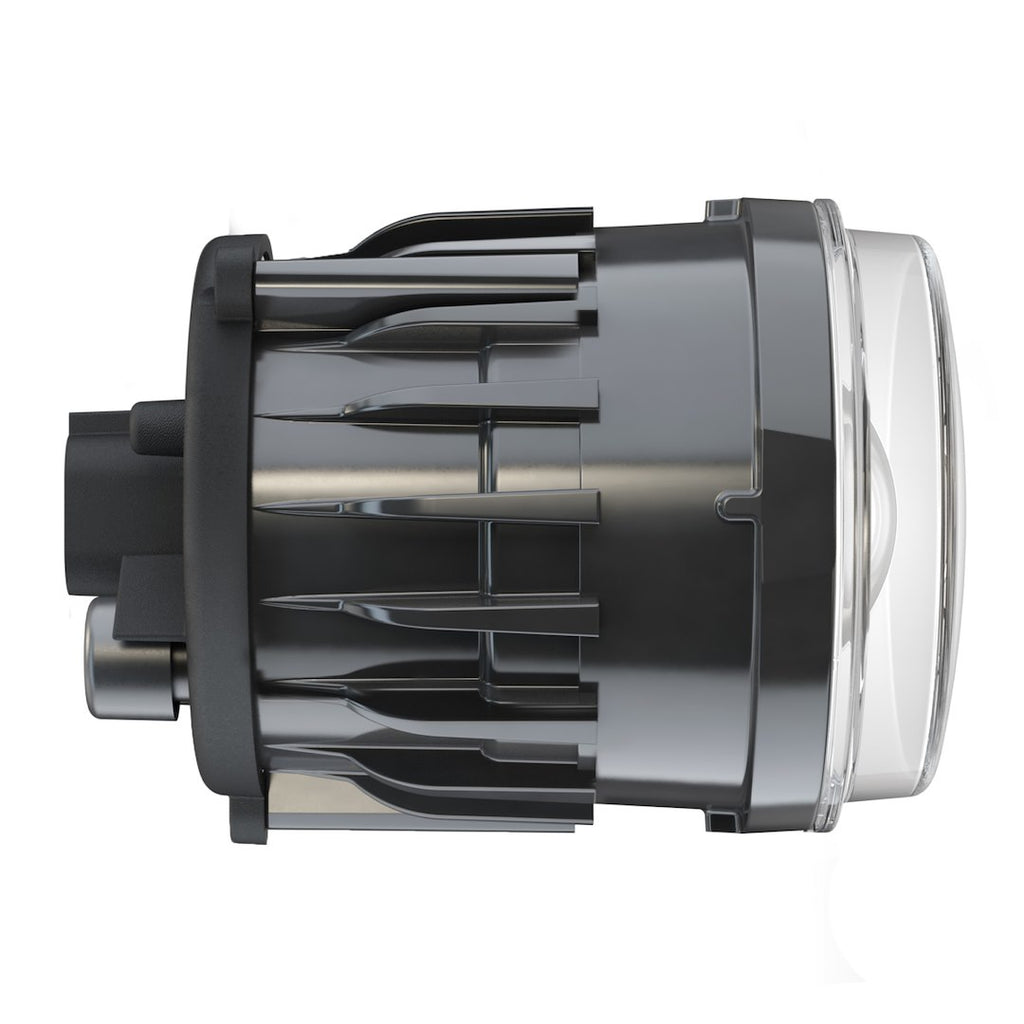

• Re-Designed Die-Cast Aluminum Housing Features A Sealed Integrated Connector To Meet The Harsh Demands Of Transportation And Municipal Applications
• Drop-In Replacement For Standard 90mm Lights
• 100 Percent ECE And DOT Compliant 90 Millimeter Lights For Legal On-Road Use
• Meets The Tough Criteria For IP67 And IP69K For The Best Protection From Dust And Water Ingress
• Pedestal Mount Brackets Can Be Positioned At 90 Degree Intervals For Maximum Mounting Flexibility, All While Maintaining Pattern Integrity And Legality

Specifications

• Manufacturer: J.W. Speaker
• Manufacturer Part Number: 0530101
• Bulb Type: LED Composite
• Headlight Type: Projector Beam
• Light Color: Amber/ White
• Lens Color: Clear
• Quantity: Single
• Bulb Specifications: High Beam LED/ Low Beam LED
• With Camera: No
• Street Legal: Yes
• Ampere Rating At 12 Volts: 1.45 Amp For High Beam/ 1.13 Amp For Low Beam
• Ampere Rating At 24 Volts: 0.70 Amp/ 1.03 Amp/ 0.07 Amp
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Aluminum
• Estimated Install Time (Hours): 1.5
• Marine: No

Technical Documents

• Part_0530101_-_JW_Speaker.pdf
