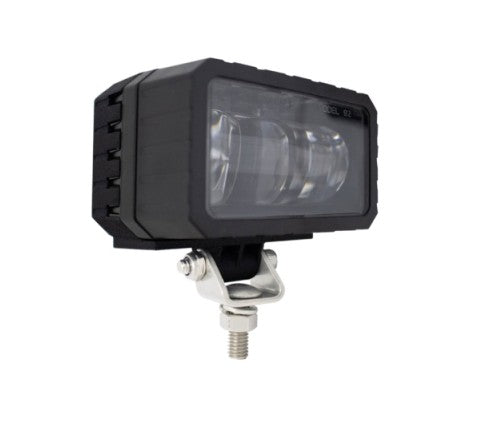

J.W. Speaker Driving Fog Light Model 92 (MPN: 0530303)

High-performance LED fog lights for versatile vehicle applications.

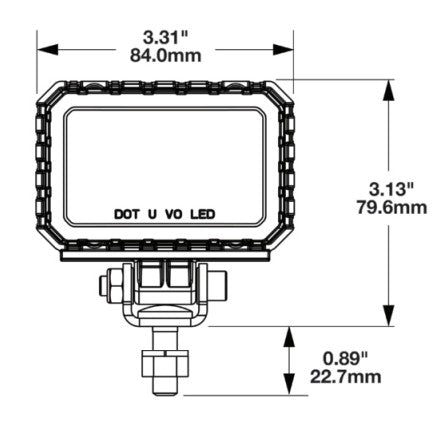

The J.W. Speaker Driving Fog Light Model 92 features a robust design with a rectangular housing measuring 3.4 inches in length and 3.31 inches in width. Engineered for durability, the black die-cast aluminum housing ensures resilience against harsh environmental conditions, making it suitable for transportation and municipal applications. With a fog beam output of 2080 raw lumens and 725 effective lumens, these lights provide enhanced visibility in adverse weather conditions.

This lighting solution is equipped with a clear polycarbonate lens that offers excellent light transmission while protecting the internal components from dust and water ingress, meeting IP67 and IP69K standards. The lights draw 0.66 amps at 24 volts DC, making them energy-efficient while delivering consistent performance. Designed for easy installation, the set includes two wiring harnesses and two pedestal mounting brackets, allowing for quick setup on various vehicles including buses, trucks, RVs, and motorcycles.

The Mosaic Modular LED lighting system allows for customization without incurring high optical tooling costs, making it an economical choice for OEMs and aftermarket customers. These lights are DOT and ECE approved, ensuring they are ready for everyday on-road use. The flexible design of the J.W. Speaker Driving Fog Light Model 92 makes it a versatile addition to any vehicle lighting system.

Features

• Die-Cast Aluminum Housing To Meet The Harsh Demands Of Transportation And Municipal Applications
• Flexible Design
• Meets The Tough Criteria For IP67 And IP69K For The Best Protection From Dust And Water Ingress
• Perfect For Upgrading A Work Truck Or Heavy-Duty Rig, These Lights Are Engineered To Deliver Consistent, Road Ready Performance

Specifications

• Manufacturer: J.W. Speaker
• Manufacturer Part Number: 0530303
• Shape: Rectangular
• Beam Type: Fog Beam
• Diameter: Not Applicable
• Height/ Width: 3-5/16 Inch Height X 3-5/16 Inch Width
• Bulb Type: LED
• Light Color: White
• Quantity: Set Of 2
• Universality: Fully Universal
• Depth: 3-5/16 Inch
• Voltage Rating: 24 Volt
• Mounting Style: Pedestal Mount
• Ampere Rating At 24 Volts: 0.6 Amp
• Lumens: 2080 Raw/ 725 Effective Lumens
• Bulb Specifications: Clear LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Die-Cast Aluminum
• Includes: With Wiring Harness/ Mounting Bracket
• Estimated Install Time (Hours): 1.5

Technical Documents

• J.W.-Speaker-Mosaic-Auxiliary-Kits-Instruction-Sheet-05-2025.pdf
• Part_0530303-_JW_Speaker.pdf
• Part_0530303-_JW_Speaker.pdf
